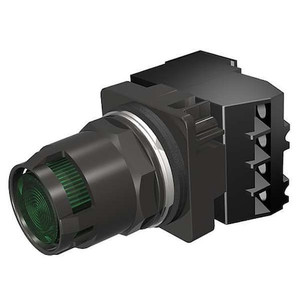

Illuminated Push Button, 30 mm, 1NC, Green - 52BT6D3J

Name: Illuminated Push Button, 30 mm, 1NC, Green - 52BT6D3J
Brand: Siemens
SKU: 52BT6D3J
Price: 79.34 USD
Availability: InStock

Siemens

SKU:

52BT6D3J

UPC:

887621496814

Availability:

In Stock

(No reviews yet)

Illuminated Push Button, 30 mm, Maintained/Momentary Action, Round Button Type of Operator, Head Material Plastic, Contact Form 1NC, Bezel Black Epoxy Coated Zinc Die Cast, Color Green, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate

Country of Origin:: Mexico
Action:: Maintained/Momentary
Size:: 30 mm
Head Material:: Plastic
Lamp Voltage:: 24V AC/DC
NEMA Rating:: 1, 12, 13, 3, 3R, 4, 4X
Lamp Type:: Incandescent
Type of Operator:: Round Button
Color:: Green
Contact Form:: 1NC
Bezel:: Black Epoxy Coated Zinc Die Cast
Legend:: Not Applicable
Number of Operators:: 1
Contact Rating:: 10A @ 600V AC
Item:: Illuminated Push Button
Bezel Material:: Epoxy Coated Zinc Die Cast
Terminal Connection:: Pressure Plate
Lamp Module Voltage:: 24V AC/DC
Standards:: CSA, REACH, UL Listed
Contact Type:: 1NC
Voltage:: 24V AC/DC
NEMA Contact Rating Designation:: A600/P600
Lamp Module Type:: Full Voltage
Replacement Lamp:: Mfr. No. 52AADN
Basic Material:: Epoxy
IP Rating:: IP10, IP11, IP14, IP52, IP54, IP56, IP66
Features:: Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
AC Contact Rating:: 10 A @ 600 V
Series:: 52
DC Contact Rating:: Not Rated
Product Type:: Push Button Operators
Mechanical Operating Durability:: 3.00 x 10^5
Legend Color:: Not Applicable
Maintained Action Release:: Push/Pull
Number of Indicator Lights:: 0
Legend Background Color:: Not Applicable
Head Color:: Green
Operator Voltage Rating - Maximum:: 600 V AC
Resistance Properties:: Corrosion Resistant, Oil and Grease Resistant, Watertight
Operating Temperature - Maximum:: 158 Degrees F
Mushroom Head Diameter:: Not Applicable
Overall Width:: 2.15 in
Operator Illumination:: Illuminated
Push Button Style:: Extended
Operator Material:: Epoxy
Manufacturer Warranty Length:: 1 yr
Overall Height:: 4.24 in
Hazardous Location Specification:: Class I, Div 2, Group A, B, C, D
NEMA Enclosure Rating:: 4X
Lamp Voltage - Maximum:: 24 V
Operating Temperature - Minimum:: 31 Degrees F
Panel Cutout Diameter:: 30 mm
Package Quantity:: 1
