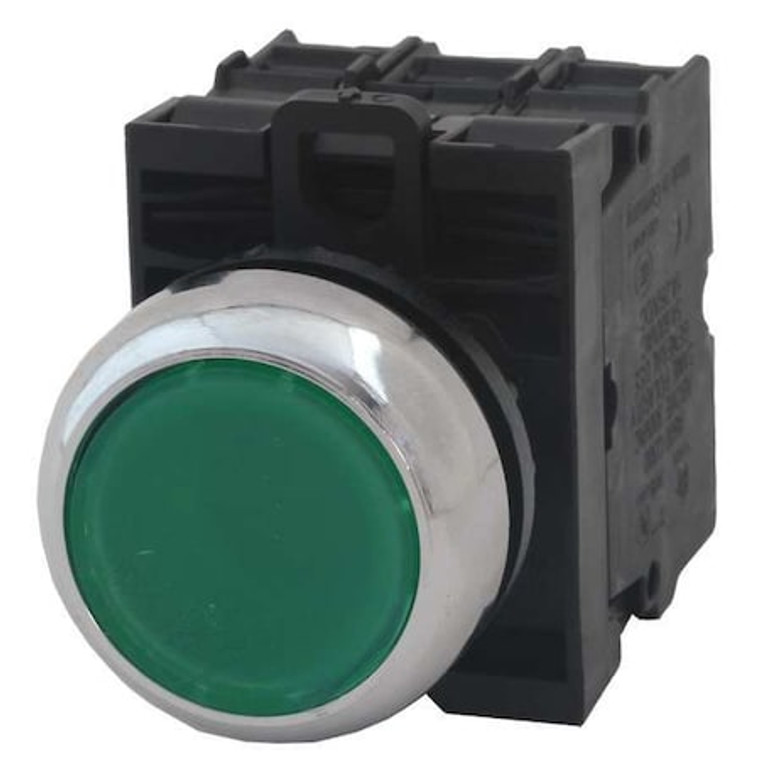

Illuminated Push Button, 22mm, Green - M22M-DL-G-K20-G

Illuminated Push Button, 22mm, Green - M22M-DL-G-K20-G

Eaton
SKU:
M22M-DL-G-K20-G
|
UPC:
786685861265
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Illuminated Push Button, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Metal, Contact Form 2NO, Bezel Chrome Die Cast Aluminum, Color Green, Contact Rating 3A @ 24 DC, 6A @ 230V AC, NEMA Contact Rating Designation AC-15, DC-13, Number of Operators 1, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP66, IP67, IP69K, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Terminal Connection Screw Clamp
Additional Information
Country of Origin:
Germany
Item:
Illuminated Push Button
Color:
Green
NEMA Contact Rating Designation:
A600
Terminal Connection:
Screw Clamp
Standards:
Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
Size:
22 mm
Basic Material:
Metal
IP Rating:
IP66, IP67, IP69K
Contact Form:
2NO
Lamp Module Voltage:
30V AC/DC
NEMA Rating:
1, 13, 2, 3, 4, 4X
Bezel:
Chrome Die Cast Aluminum
Type of Operator:
Flush Button
Number of Operators:
1
Contact Rating:
3A @ 24 DC, 6A @ 230V AC
Head Material:
Metal
Lamp Type:
LED
Action:
Momentary
Lamp Module Type:
Full Voltage
Features:
Field Conversion from Momentary to Maintained can be Done, Includes Contact Block Mounting Adapter
Product Type:
Push Button Operators
Bezel Material:
Metal
Type:
22.5 mm RMQ-Titan Modular
Application:
Pushbutton
Product Width:
.39 IN
Product Length/Depth:
1.17 IN
Product Height:
1.17 IN
Certifications:
Contact Manufacturer
Light Unit Voltage:
12-30 Vac/dc
Special Features:
M22 series
Product Name:
Eaton M22 modular pushbutton
Environmental Rating:
IP67, IP69K (IP66 key-release)
Series:
M22
Illumination:
Illuminated
Actuator:
Flush
Contact Configuration:
2 NO
Enclosure:
NEMA 4X;NEMA 13
Push Button Style:
Flush
Number of Indicator Lights:
0
Panel Cutout Diameter:
22 mm
Manufacturer Warranty Length:
1 yr
Operating Temperature - Maximum:
158 Degrees F
Operator Material:
Metal
Overall Depth:
2.26 in
Head Color:
Green
AC Contact Rating:
6 A @ 240 V
Lamp Voltage - Maximum:
30 V AC/DC
Resistance Properties:
Corrosion Resistant
Overall Height:
1 in
Operating Temperature - Minimum:
-13 Degrees F
Overall Width:
1 in
NEMA Enclosure Rating:
1, 12, 13, 2, 3, 3R, 4, 4X
Operator Illumination:
Illuminated
Mechanical Operating Durability:
5.00 x 10^6
DC Contact Rating:
3 A @ 24 V
Mushroom Head Diameter:
Not Applicable
Package Quantity:
1
