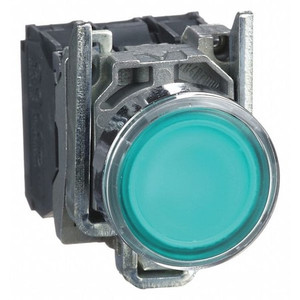

Illuminated Push Button, 22 mm, 1NO/1NC, Green - XB5AW33G5

Illuminated Push Button, 22 mm, 1NO/1NC, Green - XB5AW33G5

Schneider Electric
SKU:
XB5AW33G5
|
UPC:
785901384359
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Illuminated Push Button, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Double-Insulated Plastic, Color Green, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 13, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable
Additional Information
Country of Origin:
France
Action:
Momentary
Size:
22 mm
Head Material:
Plastic
Lamp Voltage:
110 to 120V AC
NEMA Rating:
13, 4, 4X
Type of Operator:
Flush Button
Lamp Type:
LED
Contact Form:
1NO/1NC
Color:
Green
Bezel:
Double-insulated Plastic
Legend:
Not Applicable
Number of Operators:
1
Contact Rating:
10A @ 600V AC
Item:
Illuminated Push Button
Bezel Material:
Plastic
IP Rating:
IP66, IP67, IP69, IP69K
Standards:
Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
Replacement Lamp:
Mfr. No. ZBVG3
Terminal Connection:
Screw Clamp
Voltage:
110 to 120V AC
Basic Material:
Plastic
Lamp Module Type:
Full Voltage
Lamp Module Voltage:
120V AC
AC Contact Rating:
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Width:
30 mm
Height:
42 mm
DC Contact Rating:
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Depth:
57 mm
Features:
Quick Assembly, Quick Disassembly
Series:
XB5
Product Type:
Push Button Operators
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles
Protective Treatment:
TH
Cap/Operator Or Lens Colour:
green
Positive Opening:
with EN/IEC 60947-5-1 appendix K
Terminals Description Iso N°1:
(13-14)NO || (21-22)NC
Overvoltage Category:
class II IEC 60536
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Mounting Diameter:
22 mm
Head Type:
standard
Contact Operation:
slow-break
Fixing Collar Material:
plastic
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN
Product Or Component Type:
illuminated push-button
Contacts Material:
silver alloy (Ag/Ni)
Operator Profile:
green flush, unmarked
Tightening Torque:
0.8-1.2 N.m EN 60947-1
Surge Withstand:
1 kV IEC 61000-4-5
Contacts Type And Composition:
1 NO + 1 NC
[Ith] Conventional Free Air Thermal Current:
10 A EN/IEC 60947-5-1
Light Source:
universal LED
Contacts Usage:
standard contacts
[Uimp] Rated Impulse Withstand Voltage:
6 kV EN/IEC 60947-1
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Resistance To High Pressure Washer:
7000000 Pa 55°C 0.1 m
Ambient Air Temperature For Storage:
-40-70°C
Resistance To Electrostatic Discharge:
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Device Presentation:
complete product
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Short-Circuit Protection:
10 A cartridge fuse gG EN/IEC 60947-5-1
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3
Electromagnetic Emission:
class B IEC 55011
Resistance To Fast Transients:
2 kV IEC 61000-4-4
Shape Of Signaling Unit Head:
round
Ip Degree Of Protection:
IP66 IEC 60529 || IP69 || IP69K || IP67
Ik Degree Of Protection:
IK05 IEC 50102
Electrical Reliability:
Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Operator Additional Information:
with plain lens
Product Certifications:
DNV || CSA || GL || LROS (Lloyds register of shipping) || UL Listed || BV
Bulb Base:
integral LED
Ambient Air Temperature For Operation:
-40-70°C
[Ui] Rated Insulation Voltage:
600 V 3)EN/IEC 60947-1
Operating Travel:
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Current Consumption:
14 mA
Device Short Name:
XB5
[Us] Rated Supply Voltage:
110 to 120 V AC 50/60 Hz
Mechanical Durability:
10000000 cycles
Signalling Type:
steady
Supply Voltage Limits:
100-132 V AC
Operating Force:
3.5 N NC changing electrical state || 3.8 N
Terminals Description Iso N°1:
(13-14)NO || (21-22)NC
Legend Color:
Not Applicable
Hazardous Location Specification:
Not Applicable
Operator Illumination:
Illuminated
Resistance Properties:
Chemical Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Mushroom Head Diameter:
Not Applicable
Number of Indicator Lights:
0
Push Button Style:
Flush
Overall Width:
1.18 in
Overall Depth:
2.24 in
Operating Temperature - Maximum:
158 Degrees F
Operator Material:
Plastic
NEMA Enclosure Rating:
13, 4X
Overall Height:
1.65 in
Operating Temperature - Minimum:
-40 Degrees F
Manufacturer Warranty Length:
18 mo
Maintained Action Release:
Not Applicable
Operator Voltage Rating - Maximum:
600 V AC/DC
Head Color:
Green
Legend Background Color:
Not Applicable
Panel Cutout Diameter:
22 mm
Lamp Voltage - Maximum:
120 V AC
Mechanical Operating Durability:
1.00 x 10^7
Package Quantity:
1
