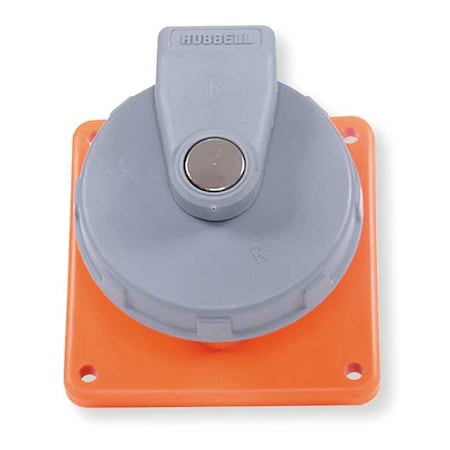

IEC Pin and Sleeve Receptacle, 60A, 250V - HBL460R12W

IEC Pin and Sleeve Receptacle, 60A, 250V - HBL460R12W

Hubbell
SKU:
HBL460R12W
|
UPC:
783585404899
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Watertight Pin and Sleeve Receptacle, Current Rating 60 A, Flange Type Flanged, Grounding Style IEC, IP Rating IP67, NEMA Enclosure Rating 4X, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Three, Shrouded Yes, Voltage Rating 125/250V, Cap Type Spring-Loaded Cap, Connection Orientation Straight, Face Diameter 4.15 in, Grounding Grounded, Horsepower Rating 7 1/2 hp, Housing Color Orange, Housing Material Thermoplastic, Market Industrial, Maximum Wire Size 2 AWG
Additional Information
Country of Origin:
United States
Item - Plugs and Receptacles:
Watertight Pin and Sleeve Receptacle
Item:
Watertight Pin and Sleeve Receptacle
Body Material - Pin and Sleeve:
Zytel 101 Nylon
Type:
Watertight Receptacle
Amps - Plugs and Receptacles:
60
Voltage:
125/250VAC
Voltage - Plugs and Receptacles:
125/250V AC
Amps:
60
Color - Plugs and Receptacles:
Orange
Phase:
Three
Number of Poles:
3
Number of Wires:
4
Material:
Thermoplastic
Grounding Style:
IEC
Phase - Electrical:
1
Standards:
CSA Certified C22.2 No. 0.17, CSA Certified C22.2 No. 182.1, IEC, UL 1682, UL 94
Switch Rated:
No
Features:
Color Coded
Color:
Orange
Body Material:
Zytel 101 Nylon
Maximum Wire Size:
2 AWG
Number of Gangs:
1
Minimum Wire Size:
8 AWG
Face Diameter:
4.15 in
Minimum Operating Temperature:
-40 Degrees C
Housing Color:
Orange
Horsepower Rating:
7 1/2 hp
Resistance Properties:
Impact Resistant, Moisture Resistant, Watertight
IP Rating:
IP67
Flange Type:
Flanged
UL 94 Flammability Rating:
HB
Voltage Rating:
125/250V
Wire Connection Type:
Screw Terminals
Reverse Service:
No
Market:
Industrial
NEMA Enclosure Rating:
4X
Maximum Operating Temperature:
75 Degrees C
Shrouded:
Yes
Current Rating:
60 A
Connection Orientation:
Straight
Power Indicating Light:
No
Housing Material:
Thermoplastic
Housing Material Grade:
Zytel 101
Cap Type:
Spring-Loaded Cap
Grounding:
Grounded
Weight:
2.45 lb
Retainer Material:
High-Impact Thermoset
Temp. Rise:
30°C
Cord Size:
8 to 2 AWG
Flammability:
UL 94 HB or Better
Dielectric Strength:
3000V AC
Max. Voltage:
600V
Flange Material:
Zytel 101 Nylon
Product Type:
Watertight IEC Device
Screw Material:
300 Stainless Steel
Gasket Material:
Neoprene
Service:
Standard
Operating Temp.:
-40 to 75°C
Application:
High Ampacity Watertight Connections
Wire Size:
#8 AWG to #2 AWG
Material - Mounting Hardware:
Screw Mounting
OEM Brand Name:
Hubbell Wiring Device-Kellems
Style:
Standard Service
Display Size:
Standard Sized Product
Wattage:
15000
Series:
HBL Heavy Duty
Connectivity:
Pressure Terminal Screws
Performance:
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CS
Nema Rating:
Non-NEMA
Current / Amperage Rating:
60 A
Environmental Conditions:
Watertight
Item Type:
Single Flanged
Industry Standard(s):
Listed To Standard UL1682
Amperage Rating:
60 A
Voltage Rating Description:
125/250 VAC
Package Quantity:
1
