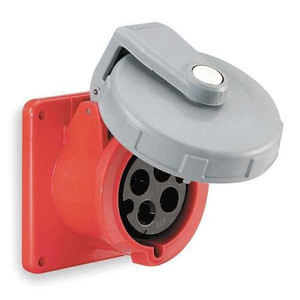

IEC Pin and Sleeve Receptacle, 100A, 480V - HBL5100R7W

IEC Pin and Sleeve Receptacle, 100A, 480V - HBL5100R7W

Hubbell
SKU:
HBL5100R7W
|
UPC:
783585405117
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Watertight Pin and Sleeve Receptacle, Current Rating 100 A, Flange Type Flanged, Grounding Style IEC, IP Rating IP67, NEMA Enclosure Rating 4X, Number of Gangs 1, Number of Poles 4, Number of Wires 5, Phase Three, Shrouded Yes, Voltage Rating 277/480V AC, Cap Type Spring-Loaded Cap, Connection Orientation Straight, Grounding Grounded, Horsepower Rating 30 hp, Housing Color Red, Housing Material Thermoplastic, Market Industrial, Maximum Wire Size 1/0 AWG, Minimum Wire Size 3 AWG
Additional Information
Country of Origin:
United States
Item - Plugs and Receptacles:
Watertight Pin and Sleeve Receptacle
Item:
Watertight Pin and Sleeve Receptacle
Body Material - Pin and Sleeve:
Zytel 101 Nylon
Type:
Watertight Receptacle
Amps - Plugs and Receptacles:
100
Voltage:
277/480VAC
Amps:
100
Voltage - Plugs and Receptacles:
277/480V AC
Color - Plugs and Receptacles:
Red
Number of Poles:
4
Phase:
Three
Number of Wires:
5
Material:
Thermoplastic
Grounding Style:
IEC
Phase - Electrical:
3Y
Features:
Color Coded
Standards:
CSA Certified C22.2 No. 0.17, CSA Certified C22.2 No. 182.1, IEC, UL 1682, UL 94
Color:
Red
HP:
30 hp
Switch Rated:
No
Body Material:
Zytel 101 Nylon
Minimum Operating Temperature:
-40 Degrees C
Reverse Service:
No
Power Indicating Light:
No
Wire Connection Type:
Screw Terminals
UL 94 Flammability Rating:
HB
Shrouded:
Yes
Maximum Operating Temperature:
75 Degrees C
Housing Material Grade:
Zytel 101
Housing Material:
Thermoplastic
Maximum Wire Size:
1/0 AWG
Housing Color:
Red
Number of Gangs:
1
Connection Orientation:
Straight
Grounding:
Grounded
Resistance Properties:
Impact Resistant, Moisture Resistant, Watertight
NEMA Enclosure Rating:
4X
Flange Type:
Flanged
Market:
Industrial
Horsepower Rating:
30 hp
IP Rating:
IP67
Minimum Wire Size:
3 AWG
Voltage Rating:
277/480V AC
Cap Type:
Spring-Loaded Cap
Current Rating:
100 A
Dielectric Strength:
3000V AC
Service:
Standard
Cord Size:
3 to 1/0 AWG
UV Resistance:
All Materials are UV Stabilized
Max. Voltage:
600V AC
Product Type:
Watertight IEC Device
Temp. Rise:
30°C
Weight:
4.05 lb
Flammability:
UL 94 5VA, UL 94 V0
Screw Material:
300 Stainless Steel
Gasket Material:
Neoprene
Flange Material:
Zytel 101 Nylon
Retainer Material:
High-Impact Thermoset
Operating Temp.:
-40 to 75°C
Application:
High Ampacity Watertight Connections
Voltage Rating Description:
3 Phase Y 277/480 VAC
Style:
Standard Service
Material - Mounting Hardware:
Screw Mounting
Wattage:
48000
Wire Size:
#3 AWG to #1/0 AWG
Connectivity:
Pressure Terminal Screws
Series:
HBL Heavy Duty
OEM Brand Name:
Hubbell Wiring Device-Kellems
Current / Amperage Rating:
100 A
Industry Standard(s):
Listed To Standard UL1682
Display Size:
Standard Sized Product
Item Type:
Single Flanged
Environmental Conditions:
Watertight
Nema Rating:
Non-NEMA
Amperage Rating:
100 A
Performance:
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CS
Package Quantity:
1
