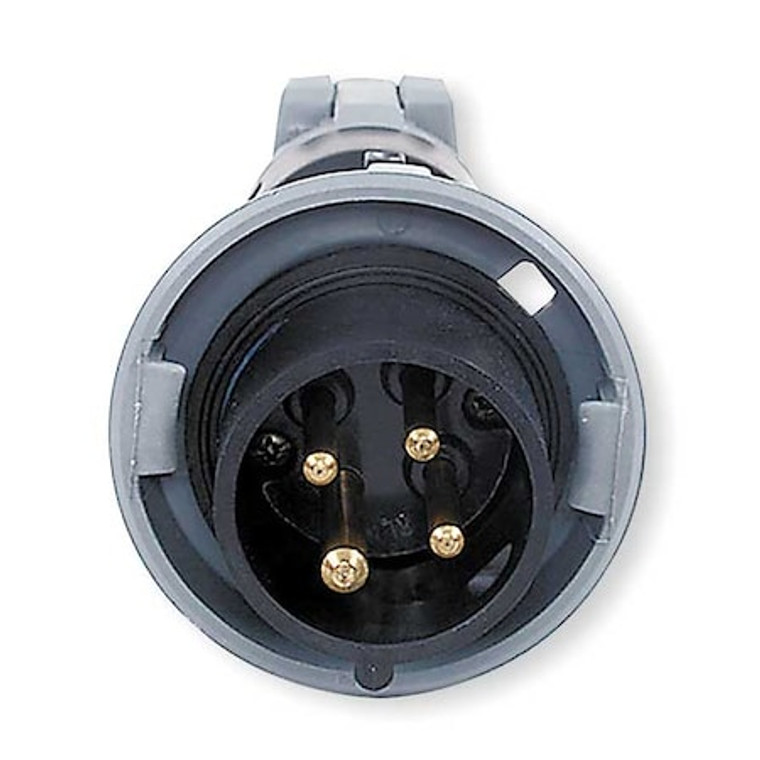

IEC Pin and Sleeve Plug, 3P, 4W, 30A, 600V - HBL430P5W

IEC Pin and Sleeve Plug, 3P, 4W, 30A, 600V - HBL430P5W

Hubbell
SKU:
HBL430P5W
|
UPC:
783585404578
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Pin and Sleeve Plug, Current Rating 30 A, Horsepower Rating 20 hp, Housing Color Black, IP Rating IP67, Number of Poles 3, Number of Wires 4, Phase Three, Voltage Rating 600V AC, Wire Connection Type Screw Terminals, Cap Type No Cap or Cover, Connection Orientation Straight, For Maximum Cable Diameter 1.25 in, For Minimum Cable Diameter 0.5 in, Grounding Grounded, Grounding Style IEC, Housing Material Polybutylene Terephthalate, Maximum Wire Size 8 AWG, Minimum Wire Size 12 AWG
Additional Information
Country of Origin:
United States
Item - Plugs and Receptacles:
Watertight Pin and Sleeve Plug
Body Material - Pin and Sleeve:
Zytel 801 Nylon
Amps - Plugs and Receptacles:
30
Voltage - Plugs and Receptacles:
600V AC
Color - Plugs and Receptacles:
Black
Number of Poles:
3
Number of Wires:
4
Phase - Electrical:
3
Switch Rated:
No
Grounding Style:
IEC
Features:
Gasketed Sealing Ring Provides Watertight Seal
Color:
Black
HP:
10 hp
Item:
IEC Pin and Sleeve Plug
Standards:
CSA Certified C22.2 No. 182.1, UL E146032, UL IEC 60309-1
Body Material:
Zytel 801 Nylon
Amps:
30
Phase:
Three
Voltage:
600VAC
Overall Length:
8.037 in
UL 94 Flammability Rating:
HB
Horsepower Rating:
20 hp
Grounding:
Grounded
Maximum Wire Size:
8 AWG
Housing Color:
Black
Wire Connection Type:
Screw Terminals
Minimum Operating Temperature:
-40 Degrees C
Current Rating:
30 A
Power Indicating Light:
No
Housing Material:
Non-Metallic
Cap Type:
No Cap or Cover
Shrouded:
Yes
For Minimum Cable Diameter:
0.5 in
Reverse Service:
No
NEMA Enclosure Rating:
4X
Maximum Operating Temperature:
75 Degrees C
For Maximum Cable Diameter:
1.25 in
Resistance Properties:
Impact Resistant, Moisture Resistant, Watertight
Voltage Rating:
600V AC
Minimum Wire Size:
12 AWG
IP Rating:
IP67
Connection Orientation:
Straight
Hub Style:
Standard
Max. Voltage:
600V
Package Quantity:
1
