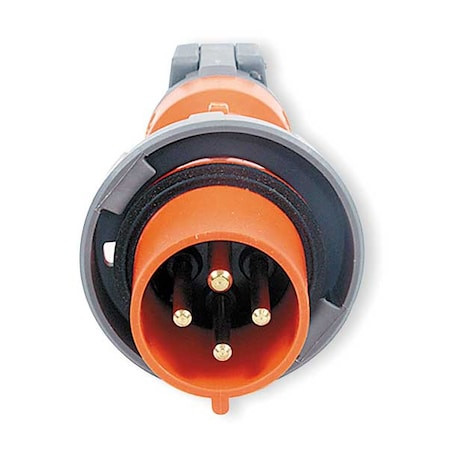

IEC Pin and Sleeve Plug, 3P, 4W, 100A, 250V - HBL4100P12W

IEC Pin and Sleeve Plug, 3P, 4W, 100A, 250V - HBL4100P12W

Hubbell
SKU:
HBL4100P12W
|
UPC:
783585404028
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Pin and Sleeve Plug, Current Rating 100 A, Horsepower Rating 10 hp, Housing Color Orange, IP Rating IP67, Number of Poles 3, Number of Wires 4, Phase Single, Voltage Rating 125/250V, Wire Connection Type Screw Terminals, Cap Type No Cap or Cover, Connection Orientation Straight, Face Diameter 3.21 in, For Minimum Cable Diameter 1.065 in, Grounding Grounded, Grounding Style IEC, Housing Material Polybutylene Terephthalate, Maximum Wire Size 1/0 AWG, Minimum Wire Size 3 AWG
Additional Information
Country of Origin:
United States
Item - Plugs and Receptacles:
Watertight Pin and Sleeve Plug
Body Material - Pin and Sleeve:
Zytel 801 Nylon
Amps - Plugs and Receptacles:
100
Voltage - Plugs and Receptacles:
125/250V AC
Color - Plugs and Receptacles:
Orange
Number of Poles:
3
Number of Wires:
4
Phase - Electrical:
1
Switch Rated:
No
Grounding Style:
IEC
Item:
IEC Pin and Sleeve Plug
Phase:
Single
Features:
Gasketed Sealing Ring Provides Watertight Seal
Voltage:
125/250VAC
Standards:
CSA Certified C22.2 No. 182.1, UL E146032, UL IEC 60309-1
Body Material:
Zytel 801 Nylon
Amps:
100
Color:
Orange
Overall Length:
12.63 in
Resistance Properties:
Impact Resistant, Moisture Resistant, Watertight
Face Diameter:
3.21 in
Maximum Operating Temperature:
75 Degrees C
Connection Orientation:
Straight
Grounding:
Grounded
Minimum Wire Size:
3 AWG
IP Rating:
IP67
Minimum Operating Temperature:
-40 Degrees C
Horsepower Rating:
10 hp
For Minimum Cable Diameter:
1.065 in
Shrouded:
Yes
Housing Material:
Non-Metallic
Wire Connection Type:
Screw Terminals
Voltage Rating:
125/250V
UL 94 Flammability Rating:
HB
Cap Type:
No Cap or Cover
Maximum Wire Size:
1/0 AWG
Current Rating:
100 A
Reverse Service:
No
Housing Material Grade:
Zytel 801
Housing Color:
Orange
Power Indicating Light:
No
NEMA Enclosure Rating:
4X
Max. Voltage:
600V
Hub Style:
Standard
Package Quantity:
1
