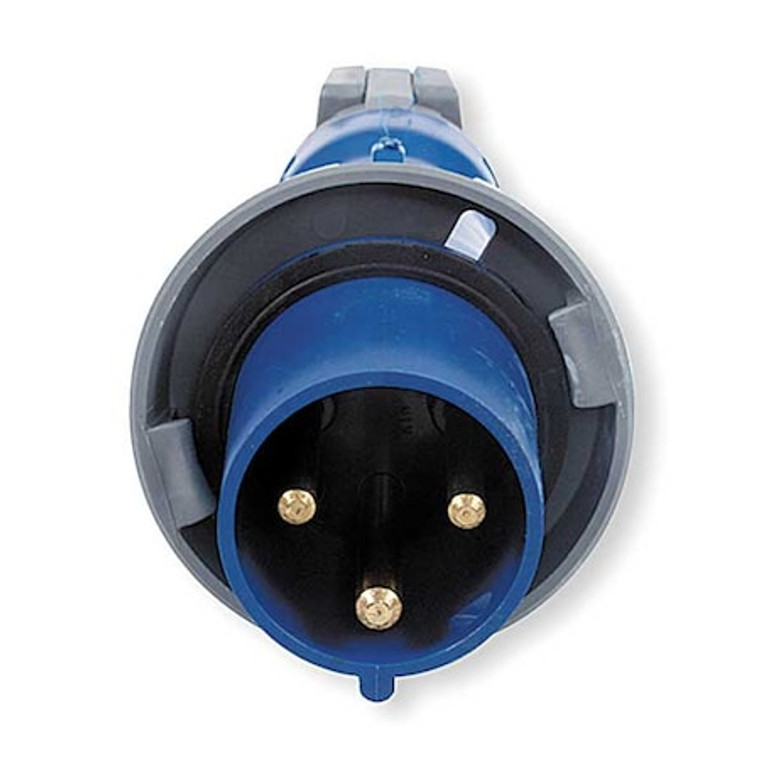

IEC Pin and Sleeve Plug, 2P, 3W, 60A, 250V - HBL360P6W

IEC Pin and Sleeve Plug, 2P, 3W, 60A, 250V - HBL360P6W

Hubbell
SKU:
HBL360P6W
|
UPC:
783585403823
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Pin and Sleeve Plug, Current Rating 60 A, Housing Color Blue, IP Rating IP67, Number of Poles 2, Number of Wires 3, Phase Single, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Cap Type No Cap or Cover, Connection Orientation Straight, Face Diameter 2.72 in, For Maximum Cable Diameter 1.45 in, For Minimum Cable Diameter 0.83 in, Grounding Grounded, Grounding Style IEC, Housing Material Polybutylene Terephthalate, Maximum Wire Size 2 AWG, Minimum Wire Size 8 AWG
Additional Information
Country of Origin:
United States
Item - Plugs and Receptacles:
Watertight Pin and Sleeve Plug
Body Material - Pin and Sleeve:
Zytel 801 Nylon
Amps - Plugs and Receptacles:
60
Voltage - Plugs and Receptacles:
250V AC
Color - Plugs and Receptacles:
Blue
Number of Poles:
2
Number of Wires:
3
Phase - Electrical:
1
Switch Rated:
No
Grounding Style:
IEC
Voltage:
250VAC
Item:
IEC Pin and Sleeve Plug
Phase:
Single
Body Material:
Zytel 801 Nylon
Amps:
60
Features:
Gasketed Sealing Ring Provides Watertight Seal
Color:
Blue
Standards:
CSA Certified C22.2 No. 182.1, UL E146032, UL IEC 60309-1
Overall Length:
10.14 in
Application:
High Ampacity Connections
Material:
Composite
NEMA Enclosure Rating:
4X
Housing Material:
Non-Metallic
IP Rating:
IP67
Cap Type:
No Cap or Cover
For Minimum Cable Diameter:
0.83 in
Grounding:
Grounded
Maximum Wire Size:
2 AWG
Resistance Properties:
Impact Resistant, Moisture Resistant, Watertight
Housing Color:
Blue
Wire Connection Type:
Screw Terminals
Reverse Service:
No
Shrouded:
Yes
Current Rating:
60 A
Power Indicating Light:
No
Face Diameter:
2.72 in
Minimum Operating Temperature:
-40 Degrees C
Maximum Operating Temperature:
75 Degrees C
Voltage Rating:
250V AC
UL 94 Flammability Rating:
HB
For Maximum Cable Diameter:
1.45 in
Minimum Wire Size:
8 AWG
Connection Orientation:
Straight
Max. Voltage:
600V
Type:
Watertight Plug
Hub Style:
Standard
Voltage Rating Description:
250 VAC
Wire Size:
#8 AWG to #2 AWG
Environmental Conditions:
Watertight
Style:
Standard Service
Performance:
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Min Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - HB or Better per UL
Item Type:
Male Plug
Nema Rating:
Non-NEMA
Amperage Rating:
60 A
Industry Standard(s):
CSA Standard C22.2 No. 182.1 UL Classified to IEC60309-1 UL Listed, File E146032
Series:
HBL Heavy Duty
Current / Amperage Rating:
60 A
Connectivity:
Pressure Terminal Screws
Display Size:
Standard Sized
Material - Mounting Hardware:
Cord Mounted
OEM Brand Name:
Hubbell Wiring Device-Kellems
Cord Type:
All Portable
Package Quantity:
1
