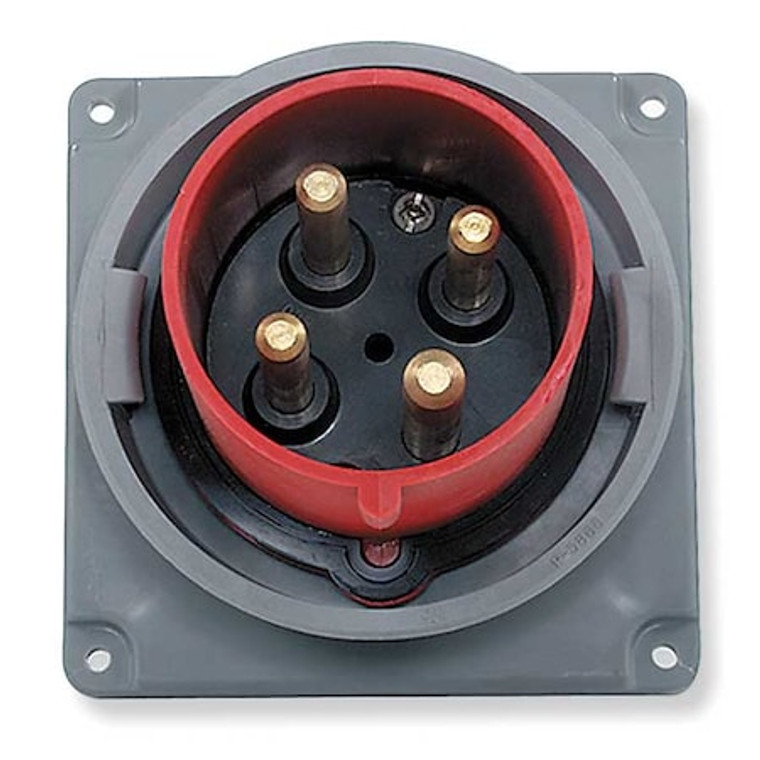

IEC Pin and Sleeve Inlet, 20A, 480V, Red - HBL420B7W

IEC Pin and Sleeve Inlet, 20A, 480V, Red - HBL420B7W

Hubbell
SKU:
HBL420B7W
|
UPC:
783585404264
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Watertight Pin and Sleeve Inlet, Current Rating 20 A, Flange Type Flanged, Grounding Grounded, Horsepower Rating 10 hp, IP Rating IP67, Number of Poles 3, Number of Wires 4, Shrouded Yes, Voltage Rating 480V AC, Wire Connection Type Screw Terminals, Face Diameter 2.11 in, Flange Diameter 2.72 in, Grounding Style IEC, Housing Color Red, Market Industrial, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Phase Three, Resistance Properties Moisture Resistant, Watertight
Additional Information
Country of Origin:
United States
Item:
Watertight Pin and Sleeve Inlet
Item - Plugs and Receptacles:
Watertight Pin and Sleeve Inlet
Body Material - Pin and Sleeve:
Zytel 101 Nylon
Type:
Watertight Inlet
Amps - Plugs and Receptacles:
20
Voltage:
480VAC
Voltage - Plugs and Receptacles:
480V AC
Amps:
20
Color - Plugs and Receptacles:
Red
Phase:
Three
Number of Poles:
3
Number of Wires:
4
Material:
Thermoplastic
Grounding Style:
IEC
Phase - Electrical:
3
Color:
Red
Body Material:
Zytel 101 Nylon
HP:
5 hp
Features:
Thermoset Polyester Contact Carrier
Standards:
CSA Certified LR280C, UL E146032, UL IEC 60309-1 IEC 60309-2
Housing Material Grade:
Zytel 101
Shrouded:
Yes
Current Rating:
20 A
Housing Color:
Red
Flange Diameter:
2.72 in
Compatible with Series:
HBL Heavy Duty
UL 94 Flammability Rating:
V-0
IP Rating:
IP67
Minimum Operating Temperature:
-40 Degrees C
Horsepower Rating:
10 hp
Housing Material:
Polybutylene Terephthalate
Wire Connection Type:
Screw Terminals
Insulation Material:
Thermoplastic
Flange Type:
Flanged
Face Diameter:
2.11 in
Minimum Wire Size:
14 AWG
Maximum Operating Temperature:
75 Degrees C
Market:
Industrial
Resistance Properties:
Moisture Resistant, Watertight
Maximum Wire Size:
10 AWG
Grounding:
Grounded
Voltage Rating:
480V AC
Weight:
0.8 lb
Service:
Standard
Product Type:
Watertight IEC Device
Screw Material:
300 Stainless Steel
Flange Material:
Zytel 101 Nylon
Gasket Material:
Neoprene
Flammability:
UL 94 HB or Better
Temp. Rise:
30°C
Max. Voltage:
600V
Cord Size:
14 to 10 AWG
Retainer Material:
High-Impact Thermoset
Dielectric Strength:
3000V AC
Operating Temp.:
-40 to 75°C
Application:
High Ampacity Watertight Connections
Connectivity:
Pressure Terminal Screws
Insulation:
Insulated Body
OEM Brand Name:
Hubbell Wiring Device-Kellems
Temperature Rating:
Maximum Continuous
Item Type:
Single Flanged
Industry Standard(s):
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146032
Environmental Conditions:
Watertight
Current / Amperage Rating:
20 A
Series:
HBL Heavy Duty
Wire Size:
#14 AWG to #10 AWG
Wattage:
9600
Voltage Rating Description:
3 Phase 480 VAC
Material - Mounting Hardware:
Screw Mounting
Amperage Rating:
20 A
Display Size:
Standard Sized Product
Nema Rating:
Non-NEMA
Style:
Standard Service
Performance:
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No
Package Quantity:
1
