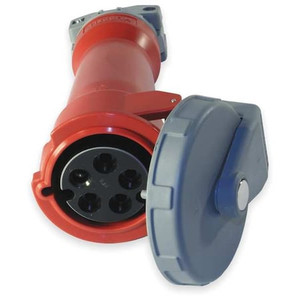

IEC Pin and Sleeve Connector, 20A, 480V - HBL420C7W

IEC Pin and Sleeve Connector, 20A, 480V - HBL420C7W

Hubbell
SKU:
HBL420C7W
|
UPC:
783585404318
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Watertight Pin and Sleeve Connector, Current Rating 20 A, Grounding Style IEC, Horsepower Rating 10 hp, Housing Color Red, IP Rating IP68, IP69K, Number of Poles 3, Number of Wires 4, Phase Three, Resistance Properties Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight, Switch Rated No, Voltage Rating 480V AC, Cap Type Spring-Loaded Cap, Connection Orientation Straight, For Maximum Cable Diameter 0.83 in, For Minimum Cable Diameter 0.33 in, Grounding Grounded
Additional Information
Country of Origin:
United States
Item - Plugs and Receptacles:
Watertight Pin and Sleeve Connector
Body Material - Pin and Sleeve:
Zytel 801 Nylon
Amps - Plugs and Receptacles:
20
Voltage - Plugs and Receptacles:
480V AC
Color - Plugs and Receptacles:
Red
Number of Poles:
3
Number of Wires:
4
Phase - Electrical:
3
Switch Rated:
No
Grounding Style:
IEC
Standards:
CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033
Body Material:
Zytel 801 Nylon
Color:
Red
Amps:
20
Features:
Color Coded Housings for Easy Identification, Corrosion-Resistant Self-Closing Gasketed Cover, Insulated Non-Metallic Housing
Voltage:
480VAC
Phase:
Three
HP:
5 hp
Item:
Watertight Pin and Sleeve Connector
Application:
High Ampacity Connections
Overall Length:
7.57 in
Outside Diameter:
3.43 in
Voltage Rating:
480V AC
Minimum Operating Temperature:
-40 Degrees C
Grounding:
Grounded
Cap Type:
Spring-Loaded Cap
IP Rating:
IP68, IP69K
Horsepower Rating:
10 hp
Housing Color:
Red
Connection Orientation:
Straight
Maximum Operating Temperature:
75 Degrees C
Current Rating:
20 A
Resistance Properties:
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Minimum Wire Size:
14 AWG
UL 94 Flammability Rating:
V-0
Market:
Industrial
Reverse Service:
No
Housing Material Grade:
Zytel 801
For Minimum Cable Diameter:
0.33 in
For Maximum Cable Diameter:
0.83 in
Compatible with Series:
HBL Heavy Duty
NEMA Enclosure Rating:
4X
Wire Connection Type:
Screw Terminals
Housing Material:
PBT
Maximum Wire Size:
10 AWG
Shrouded:
Yes
Power Indicating Light:
No
Type:
Watertight Connector Body
OEM Brand Name:
Hubbell Wiring Device-Kellems
Voltage Rating Description:
3 Phase 480 VAC
Conductor Range:
#14 AWG to #10 AWG
Temperature Rating:
Maximum Continuous
Industry Standard(s):
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146033
Insulation:
Insulated Body
Style:
Standard Service
Material - Mounting Hardware:
Cord Mounted
Environmental Conditions:
Watertight
Nema Rating:
Non-NEMA
Amperage Rating:
20 A
Connectivity:
Pressure Terminal Screws
Display Size:
Standard
Item Type:
Standard
Performance:
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No
Series:
HBL Heavy Duty
Number Of Conductors:
4-Wire Grounding
Current / Amperage Rating:
20 A
Package Quantity:
1
