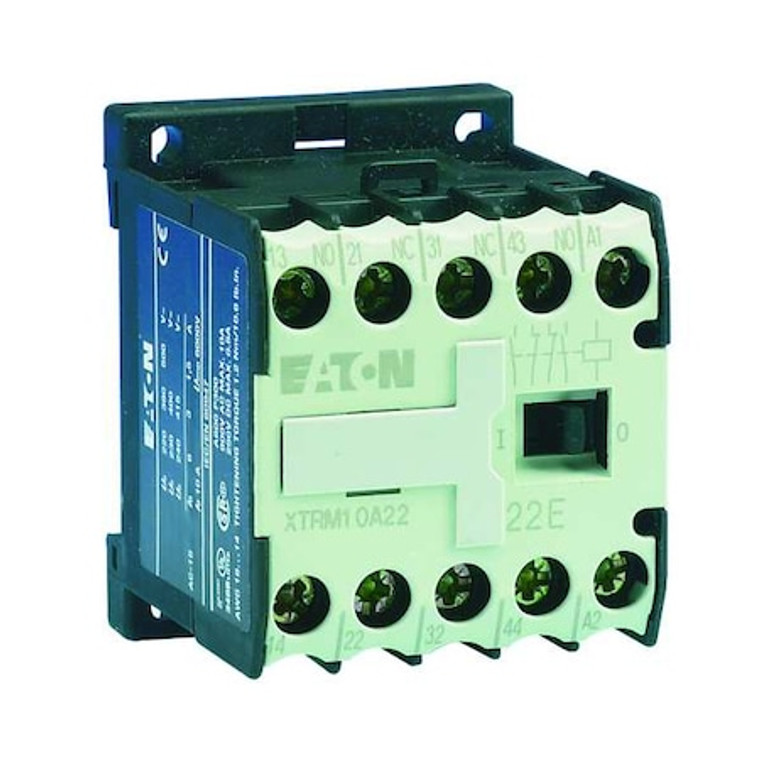

IEC Mini Contrl Relay, 2NO/2NC, 208VAC, 10A - XTRM10A22E

IEC Mini Contrl Relay, 2NO/2NC, 208VAC, 10A - XTRM10A22E

Eaton
SKU:
XTRM10A22E
|
UPC:
786685353609
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Mini Control Relay, Current Rating 10 A, Contact Form 2NO/2NC, Contact Rating (DC) 2.5 A @ 24V, Coil Voltage 208V AC, Contact Rating (AC) 6 A @ 240V, Relay Style IEC, Electrical Connection Screw Terminal, Mounting Style DIN Rail, Power Consumption 3.9 VA, IP Rating IP20, Frame Size 45 mm, NEMA Size Not Applicable, Compatible with Series XTRM Mini Control Relays, Maximum Operating Temperature 122 Degrees F, Frequency 50 Hz, Body Depth 2.05 in, Body Height 2 in, Body Width 1.77 in
Additional Information
Country of Origin:
Germany
Item - Relay:
IEC Style Control Relay
Coil Volts:
208V AC
AC Contact Rating - Relay:
6A @ 240V
DC Contact Rating - Relay:
2.50A @ 24V
Number of Pins - Relay:
10
Contact Form - Relay:
(2) SPST-NC, (2) SPST-NO
Mounting - Relay:
DIN Rail
Body Height - Relay:
2.28 in
Power Consumption - Relay:
3.9 VA
Overall Height - Relay:
2.28 in
Standards:
UL Listed
Features:
4-Pole Configurations, Available with Screw or Spring Cage Terminals, IP20 Finger and Back-of-Hand Proof
Body Width - Relay:
1.77 in
Hz - Electrical:
60 Hz
Response Time:
14 to 21 msec (Closing Delay), 8 to 18 msec (Opening Delay), 45 msec (Closing Delay With Auxiliary Contact)
Body Depth - Relay:
2.13 in
Contact Form:
2NO/2NC
Contact Amp Rating (Resistive):
10A
Item:
IEC Mini Control Relay
Contact Material:
Silver Tin Oxide Alloy
Coil Rating:
29VA Inrush, 3.9VA Sealed
Mounting:
Din Rail
Hz:
60
Frame size:
45 mm - mini
Product Width:
2.5 in
Conventional thermal current:
10A
Coil voltage:
208 Vac, 50 Hz
Product Height:
2 in
Contact configuration:
2 NO, 2 NC
Rated operational current:
3 A at 380/400/415 V
Certifications:
UL Listed
Coil:
208 Vac, 50 Hz
Terminals:
Screw terminals
Type:
Control relay
Product Length/Depth:
2.5 in
Product Name:
Eaton XT IEC control relay
Electrical Connection:
Screw Terminal
Compatible with Series:
XTRM Mini Control Relays
Power Consumption:
3.9 VA
Minimum Operating Temperature:
-13 Degrees F
Body Width:
1.77 in
Relay Style:
IEC
Input Voltage:
208V AC
IP Rating:
IP20
Mechanical Operating Durability (DC):
20,000,000
Current Rating:
10 A
Body Depth:
2.05 in
Weight:
0.3 lb
NEMA Size:
Not Applicable
Mechanical Operating Durability (AC):
10,000,000
Frequency:
50 Hz
For Use With:
Contactors, Starters
Body Height:
2 in
Number of Pins:
10
Maximum Operating Temperature:
122 Degrees F
Contact Rating (DC):
2.5 A @ 24V
Coil Voltage:
208V AC
Contact Rating (AC):
6 A @ 240V
Frame Size:
45 mm
Overall Height:
2.28 in
Mounting Style:
DIN Rail
Package Quantity:
1
