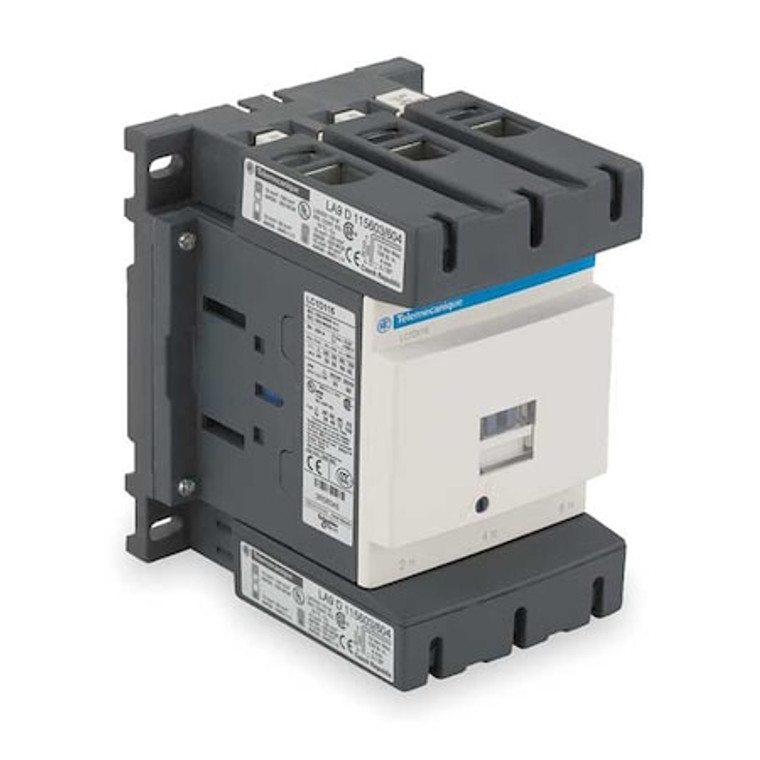

IEC Magnetic Contactor, 3 Poles, 480 V AC, 150 A, Reversing: No - LC1D150T7

IEC Magnetic Contactor, 3 Poles, 480 V AC, 150 A, Reversing: No - LC1D150T7

Square D
SKU:
LC1D150T7
|
UPC:
785901299431
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 480V AC, Number of Poles 3, Full Load Current - Inductive 150 A, Full Load Current - Resistive 200 A, Reversing Capability Non-Reversing, Overall Height 6.22 in, Overall Width 0.47 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Plate, Series TeSys Deca, Number of Auxillary Contacts 2, Contactor Style IEC
Additional Information
Country of Origin:
Czechia
Full Load Amps-Inductive:
150 A
Item:
IEC Magnetic Contactor
Full Load Amps-Resistive:
200 A
Number of Poles:
3
Coil Volts:
480 V AC
Reversing:
No
Height:
4.33 in
Width:
4.33 in
HP @ 3 Phase - 208V:
40 hp
HP @ 3 Phase - 575V:
125 hp
Depth:
5.12 in
HP @ 3 Phase - 240V:
50 hp
Enclosure NEMA Rating:
No Enclosure
HP @ 3 Phase - 480V:
100 hp
Aux. Contact Configuration:
1NO/1NC
Hz:
50/60
Auxiliary Contact Form:
1NO/1NC
Action:
Non-Reversing
Standards:
BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
NEMA Size:
Not Applicable
Series:
TeSys Deca
Fire Rating:
UL 94 V1
Electrical Durability:
0.85 Mcycles (150 A, AC-3, Less than 440 V); 1 Mcycles (200 A, AC-1, Less than 440 V); 0.85 Mcycles (150 A, AC-3e, Less than 440 V)
Inrush VA:
280 to 350 VA
Net Weight:
2.5 kg
Rated Short-Time Withstand Current:
250 A (at 40°C for 10 min Power Circuit), 580 A (at 40°C for 1 min Power Circuit), 1200 A (at 40°C for 10 s Power Circuit), 1400 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (
Operating Time:
20 to 35 ms (Closing), 40 to 75 ms (Opening)
Switching Voltage:
17 V (Signalling Circuit)
Working Height:
Up to 9842.52 ft
Watts Loss:
3 to 4.5W
IP Rating:
IP20
Rated Making Capacity:
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1660 A @ 440V (Power Circuit)
Max. Temperature:
850°C
Impulse Withstand Voltage:
8 kV
Rated Breaking Capacity:
1400 A @ 440V
Thermal Amperage:
200 A (at 60°C Power Circuit)
Mechanical Durability:
8 Mcycles
Signalling Circuit Frequency:
25 to 400 Hz
Switching Current:
5 mA (Signalling Circuit)
Application:
Motor Control, Resistive Load
Shock Resistance:
15 G for 11 ms (Contactor Closed), 6 G for 11 ms (Contactor Open)
Insulation Resistance Range:
Greater Than 10 MOhms (Signalling Circuit)
Rated Insulation Volts:
600/1000V (Power Circuit), 600/690V (Signalling Circuit)
Mounts On:
Plate, Rail
Overvoltage Category:
CAT III
Impedance:
0.6 mOhm
Hold VA:
2 to 18 VA
Rated Voltage:
1000V AC, 300V DC
Vibration Resistance:
4 G (Contactor Closed), 2 G (Contactor Open)
Electrical Connection:
Screw Clamp Terminals
Control Circuit Voltage Limits:
Drop-Out AC
Features:
Built-In Bi-Directional Peak Limiting Diode Suppressor
Fuse Amps:
10 A (Signalling Circuit), 315 A (Type 1 Power Circuit), 250 A (Type 2 Power Circuit)
Max. Operating Watts:
40 kW (at 220 to 230V AC 50/60 Hz AC-3), 75 kW (at 380 to 400V AC 50/60 Hz AC-3), 80 kW 415 to (at 440V AC 50/60 Hz AC-3), 90 kW (at 500V AC 50/60 Hz AC-3), 100 kW (at 660 to 690V AC 50/60 Hz AC-3), 75 kW (at 1000V AC 50/60 Hz AC-3), 22 kW (at 400V A
Tightening Torque:
1.2 Nm (Control Circuit), 12 Nm (Power Circuit)
Includes Protective Cover:
Yes
Environmental Attributes:
Mercury Free, PVC Free, Pollution Degree 3
Non-Overlap Time:
1.5 ms
Operating Speed:
1200 cycles per hr
Maximum Voltage Rating:
1000V AC
Contactor Style:
IEC
Overall Width:
0.47 in
Frequency:
50/60 Hz
Horsepower @ Three Phase - 480V AC:
100 hp
Horsepower @ Three Phase - 208V AC:
40 hp
Coil Voltage:
480V AC
Terminal Connection Type:
Screw Clamp Terminals
Horsepower @ Three Phase - 240V AC:
50 hp
Overall Height:
6.22 in
Full Load Current - Resistive:
200 A
NEMA Enclosure Material:
Not Applicable
Includes Auxiliary Contacts:
Yes
Reversing Capability:
Non-Reversing
Mechanical Operating Durability:
8,000,000
Number of Normally Open Main Contacts:
3
Horsepower @ Single Phase - 240V AC:
5 hp
NEMA Enclosure Rating:
No Enclosure
Full Load Current - Inductive:
150 A
Phase:
Three
Number of Auxillary Contacts:
2
Overall Depth:
5.35 in
Horsepower @ Three Phase - 600V AC:
125 hp
Mounting Style:
DIN Rail, Plate
Embedded Surge Suppressor:
Yes
Resistance Properties:
Fire Resistant, Insulation Resistant
Minimum Operating Temperature:
-40 Degrees F
Electrical Operating Durability:
1,000,000, 850,000
Maximum Operating Temperature:
140 Degrees F
Package Quantity:
1
