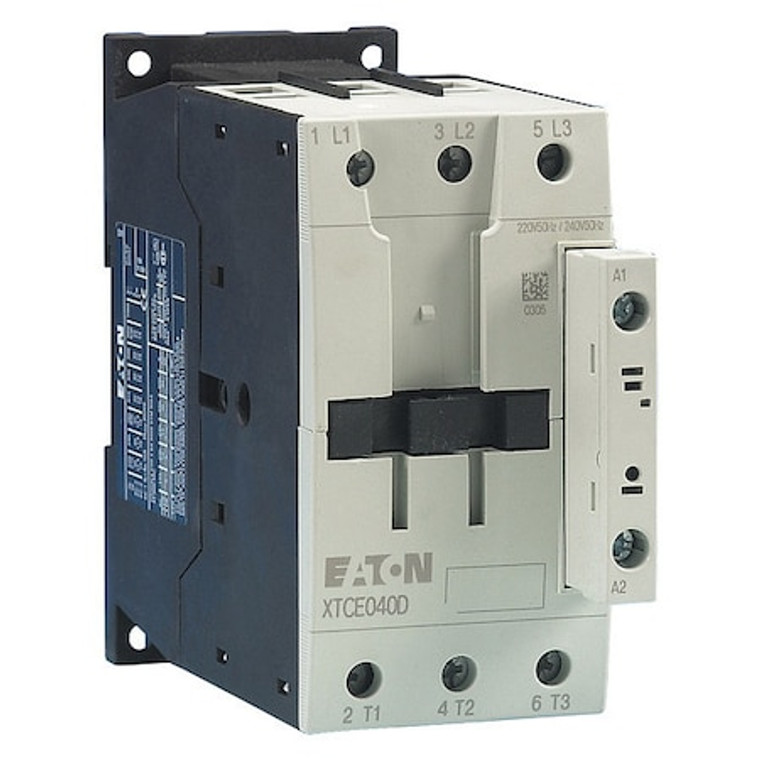

IEC Magnetic Contactor, 3 Poles, 240 V AC, 40 A, Reversing: No - XTCE040D00B

IEC Magnetic Contactor, 3 Poles, 240 V AC, 40 A, Reversing: No - XTCE040D00B

Eaton
SKU:
XTCE040D00B
|
UPC:
786685363196
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Magnetic Contactor, Auxiliary Contact Form Auxiliary Contacts Not Included, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 220/240V AC, Number of Poles 3, Full Load Current - Inductive 40 A, Full Load Current - Resistive 60 A, Reversing Capability Non-Reversing, Overall Height 4.09 in, Overall Width 2.17 in, Terminal Connection Type Screw Terminals, Frame Size D, Mounting Style DIN Rail, Panel, Series XT, Number of Auxillary Contacts 0, Contactor Style IEC
Additional Information
Country of Origin:
Romania
Item:
IEC Magnetic Contactor
Full Load Amps-Inductive:
40 A
Action:
Non-Reversing
Full Load Amps-Resistive:
60 A
Type:
Full voltage non-reversing contactor
Number of Poles:
3
Coil Volts:
240 V AC
Reversing:
No
HP @ 1 Phase - 120V:
3 hp
HP @ 1 Phase - 230V:
7-1/2
HP @ 1 Phase - 240V:
7 1/2 hp
Height:
4.13 in
HP @ 3 Phase - 208V:
10 hp
Width:
2.17 in
HP @ 3 Phase - 240V:
15 hp
Depth:
5.2 in
HP @ 3 Phase - 575V:
40 hp
Enclosure NEMA Rating:
No Enclosure
HP @ 3 Phase - 480V:
30 hp
Aux. Contact Configuration:
No Auxiliary Contacts
Hz:
50/60
Standards:
CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
Frame / Series / Class / Code:
Frame D
Series:
XT
Auxiliary Contact Form:
Auxiliary Contacts Not Included
NEMA Size:
Not Applicable
IP Rating:
IP20
Electrical Connection:
Screw Terminals
Product Length/Depth:
5.77952756 in
Frequency Rating:
50-60 Hz
Hp Rating - Max:
3, 5, 7.5/ 10, 15, 30, 40 hp (1/3PH @115,200,230/200,230,460,575 V)
Product Width:
2.16535433 in
Coil Voltage:
220/240V AC
Contact Configuration:
0 NO, 0 NC
Certifications:
UL Listed;CSA Certified;IEC 60947;EN 60947
Product Name:
Eaton XT IEC contactor
Frame Size:
D
Amperage Rating:
40A
Compliances:
CE Marked
Product Height:
4.09448819 in
Includes Auxiliary Contacts:
No
Horsepower @ Three Phase - 240V AC:
15 hp
Overall Width:
2.17 in
Mounting Hole Distance - Width:
1.77 in
Horsepower @ Three Phase - 600V AC:
40 hp
Mounting Hole Diameter:
0.16 in
NEMA Enclosure Material:
Not Applicable
Electrical Operating Durability:
300 (AC-4 400V Ie), 800 (AC-1 400V Ie), 800 (AC-3 400V Ie)
Mounting Style:
DIN Rail, Panel
Overall Height:
4.09 in
Reversing Capability:
Non-Reversing
Contactor Style:
IEC
Full Load Current - Resistive:
60 A
Embedded Surge Suppressor:
Yes
Frequency:
50/60 Hz
Terminal Connection Type:
Screw Terminals
Mechanical Operating Durability:
10,000,000
Horsepower @ Single Phase - 240V AC:
7 1/2 hp
NEMA Enclosure Rating:
No Enclosure
Horsepower @ Three Phase - 480V AC:
30 hp
Mounting Hole Distance - Height:
4.13 in
Minimum Operating Temperature:
-13 Degrees F
Maximum Voltage Rating:
690V AC
Horsepower @ Single Phase - 120V AC:
3 hp
Overall Depth:
5.78 in
Number of Auxillary Contacts:
0
Response Time:
Less Than13 msec (AC Operated Opening Delay), Less Than18 msec (AC Operated Closing Delay), Less Than24 msec (DC Operated Opening Delay), Less Than54 msec (DC Operated Opening Delay)
Maximum Operating Temperature:
122 Degrees F
Horsepower @ Three Phase - 208V AC:
10 hp
Full Load Current - Inductive:
40 A
Package Quantity:
1
