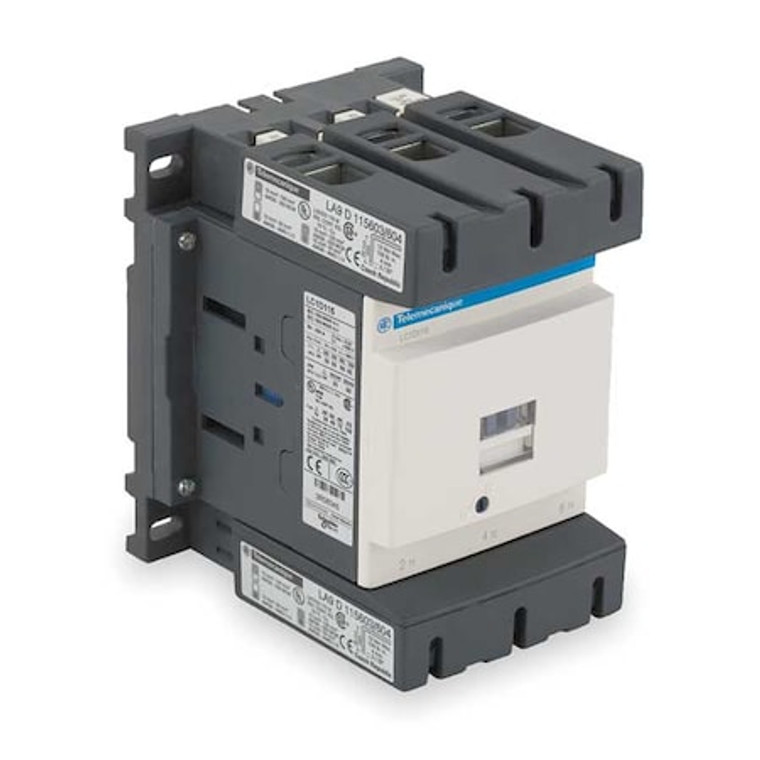

IEC Magnetic Contactor, 3 Poles, 240 V AC, 150 A, Reversing: No - LC1D150U7

IEC Magnetic Contactor, 3 Poles, 240 V AC, 150 A, Reversing: No - LC1D150U7

Square D
SKU:
LC1D150U7
|
UPC:
785901697633
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 240V AC, Number of Poles 3, Full Load Current - Inductive 150 A, Full Load Current - Resistive 200 A, Reversing Capability Non-Reversing, Overall Height 6.22 in, Overall Width 0.47 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Plate, Series TeSys Deca, Number of Auxillary Contacts 2, Contactor Style IEC
Additional Information
Country of Origin:
Czechia
Item:
IEC Magnetic Contactor
Full Load Amps-Inductive:
150 A
Action:
Non-Reversing
Full Load Amps-Resistive:
200 A
Number of Poles:
3
Coil Volts:
240 V AC
Reversing:
No
Height:
4.33 in
Width:
4.33 in
HP @ 3 Phase - 208V:
40 hp
HP @ 3 Phase - 240V:
50 hp
HP @ 3 Phase - 575V:
125 hp
Depth:
5.12 in
HP @ 3 Phase - 480V:
100 hp
Enclosure NEMA Rating:
No Enclosure
Aux. Contact Configuration:
1NO/1NC
Hz:
50/60
Auxiliary Contact Form:
1NO/1NC
Standards:
BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
Series:
TeSys Deca
NEMA Size:
Not Applicable
Watts Loss:
3 to 4.5W
Application:
Motor Control, Resistive Load
Hold VA:
2 to 18 VA
Switching Voltage:
17 V (Signalling Circuit)
Insulation Resistance Range:
Greater Than 10 MOhms (Signalling Circuit)
Rated Insulation Volts:
600/1000V (Power Circuit), 600/690V (Signalling Circuit)
Net Weight:
2.5 kg
Fuse Amps:
10 A (Signalling Circuit), 315 A (Type 1 Power Circuit), 250 A (Type 2 Power Circuit)
Operating Time:
20 to 35 ms (Closing), 40 to 75 ms (Opening)
Thermal Amperage:
200 A (at 60°C Power Circuit)
Rated Making Capacity:
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1660 A @ 440V (Power Circuit)
Tightening Torque:
1.2 Nm (Control Circuit), 12 Nm (Power Circuit)
Impulse Withstand Voltage:
8 kV
Overvoltage Category:
CAT III
Electrical Durability:
0.85 Mcycles (150 A, AC-3, Less than 440 V); 1 Mcycles (200 A, AC-1, Less than 440 V); 0.85 Mcycles (150 A, AC-3e, Less than 440 V)
IP Rating:
IP20
Rated Short-Time Withstand Current:
250 A (at 40°C for 10 min Power Circuit), 580 A (at 40°C for 1 min Power Circuit), 1200 A (at 40°C for 10 s Power Circuit), 1400 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (
Rated Voltage:
1000V AC, 300V DC
Fire Rating:
UL 94 V1
Working Height:
Up to 9842.52 ft
Signalling Circuit Frequency:
25 to 400 Hz
Mounts On:
Plate, Rail
Control Circuit Voltage Limits:
Drop-Out AC
Non-Overlap Time:
1.5 ms
Rated Breaking Capacity:
1400 A @ 440V
Features:
Built-In Bi-Directional Peak Limiting Diode Suppressor
Impedance:
0.6 mOhm
Switching Current:
5 mA (Signalling Circuit)
Operating Speed:
1200 cycles per hr
Vibration Resistance:
4 G (Contactor Closed), 2 G (Contactor Open)
Shock Resistance:
15 G for 11 ms (Contactor Closed), 6 G for 11 ms (Contactor Open)
Environmental Attributes:
Mercury Free, PVC Free, Pollution Degree 3
Max. Temperature:
850°C
Max. Operating Watts:
40 kW (at 220 to 230V AC 50/60 Hz AC-3), 75 kW (at 380 to 400V AC 50/60 Hz AC-3), 80 kW 415 to (at 440V AC 50/60 Hz AC-3), 90 kW (at 500V AC 50/60 Hz AC-3), 100 kW (at 660 to 690V AC 50/60 Hz AC-3), 75 kW (at 1000V AC 50/60 Hz AC-3), 22 kW (at 400V A
Electrical Connection:
Screw Clamp Terminals
Inrush VA:
280 to 350 VA
Includes Protective Cover:
Yes
Mechanical Durability:
8 Mcycles
Mechanical Operating Durability:
8,000,000
Embedded Surge Suppressor:
Yes
Full Load Current - Resistive:
200 A
Contactor Style:
IEC
Terminal Connection Type:
Screw Clamp Terminals
NEMA Enclosure Material:
Not Applicable
Frequency:
50/60 Hz
Electrical Operating Durability:
1,000,000, 850,000
Horsepower @ Single Phase - 240V AC:
5 hp
Horsepower @ Three Phase - 600V AC:
125 hp
Overall Width:
0.47 in
Full Load Current - Inductive:
150 A
Phase:
Three
Resistance Properties:
Fire Resistant, Insulation Resistant
Maximum Voltage Rating:
1000V AC
Horsepower @ Three Phase - 208V AC:
40 hp
Minimum Operating Temperature:
-40 Degrees F
Overall Height:
6.22 in
Includes Auxiliary Contacts:
Yes
Overall Depth:
5.35 in
Mounting Style:
DIN Rail, Plate
NEMA Enclosure Rating:
No Enclosure
Horsepower @ Three Phase - 480V AC:
100 hp
Number of Normally Open Main Contacts:
3
Reversing Capability:
Non-Reversing
Horsepower @ Three Phase - 240V AC:
50 hp
Number of Auxillary Contacts:
2
Coil Voltage:
240V AC
Maximum Operating Temperature:
140 Degrees F
Package Quantity:
1
