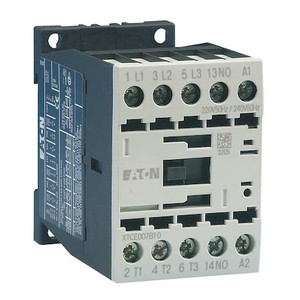

IEC Magnetic Contactor, 3 Poles, 24 V DC, 9 A, Reversing: No - XTCE009B01TD

IEC Magnetic Contactor, 3 Poles, 24 V DC, 9 A, Reversing: No - XTCE009B01TD

Eaton
SKU:
XTCE009B01TD
|
UPC:
786685363479
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Magnetic Contactor, Auxiliary Contact Form 1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 9 A, Full Load Current - Resistive 22 A, Reversing Capability Non-Reversing, Overall Height 2 in, Overall Width 3 in, Terminal Connection Type Screw Terminals, Frame Size B, Mounting Style DIN Rail, Panel, Series XT, Number of Auxillary Contacts 1, Contactor Style IEC, Horsepower @ Three Phase - 240V AC 3 hp
Additional Information
Country of Origin:
Romania
Item:
IEC Magnetic Contactor
Full Load Amps-Inductive:
9 A
Action:
Non-Reversing
Full Load Amps-Resistive:
22 A
Type:
Full voltage non-reversing contactor
Number of Poles:
3
Coil Volts:
24 V DC
Reversing:
No
HP @ 1 Phase - 120V:
1/2 hp
HP @ 1 Phase - 230V:
1-1/2
Height:
1.77 in
HP @ 1 Phase - 240V:
1 1/2 hp
Width:
1.77 in
HP @ 3 Phase - 208V:
3 hp
Depth:
2.95 in
HP @ 3 Phase - 240V:
3 hp
HP @ 3 Phase - 575V:
7 1/2 hp
Enclosure NEMA Rating:
No Enclosure
HP @ 3 Phase - 480V:
5 hp
Aux. Contact Configuration:
1NC
Frame / Series / Class / Code:
Frame B
Auxiliary Contact Form:
1NC
Standards:
CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
Series:
XT
NEMA Size:
Not Applicable
Electrical Connection:
Screw Terminals
IP Rating:
IP20
Frame Size:
B
Product Height:
2 in
Contact Configuration:
1 NC
Certifications:
UL Listed;CSA Certified;IEC 60947;EN 60947
Product Name:
Eaton XT IEC contactor
Compliances:
CE Marked
Amperage Rating:
9A
Product Length/Depth:
3 in
Hp Rating - Max:
0.5, 1, 1.25/ 3, 3, 5, 7.5 hp (1/3PH @115,200,230/200,230,460,575 V)
Product Width:
3 in
Coil Voltage:
24V DC
Full Load Current - Resistive:
22 A
Mounting Style:
DIN Rail, Panel
Terminal Connection Type:
Screw Terminals
Number of Auxillary Contacts:
1
NEMA Enclosure Material:
Not Applicable
Maximum Operating Temperature:
122 Degrees F
Horsepower @ Single Phase - 240V AC:
1 1/4 hp
Mechanical Operating Durability:
10,000,000
Embedded Surge Suppressor:
Yes
NEMA Enclosure Rating:
No Enclosure
Overall Depth:
3 in
Full Load Current - Inductive:
9 A
Horsepower @ Three Phase - 480V AC:
5 hp
Electrical Operating Durability:
1000 (AC-3 400V Ie), 300 (AC-4 400V Ie), 800 (AC-1 400V Ie)
Includes Auxiliary Contacts:
Yes
Horsepower @ Single Phase - 120V AC:
1/2 hp
Contactor Style:
IEC
Horsepower @ Three Phase - 208V AC:
3 hp
Response Time:
Less Than12 msec (DC Operated Opening Delay), Less Than18 msec (AC Operated Opening Delay), Less Than21 msec (AC Operated Closing Delay), Less Than31 msec (DC Operated Opening Delay)
Minimum Operating Temperature:
-13 Degrees F
Overall Width:
3 in
Horsepower @ Three Phase - 240V AC:
3 hp
Frequency:
50/60 Hz
Maximum Voltage Rating:
690V AC
Reversing Capability:
Non-Reversing
Overall Height:
2 in
Horsepower @ Three Phase - 600V AC:
7 1/2 hp
Package Quantity:
1
