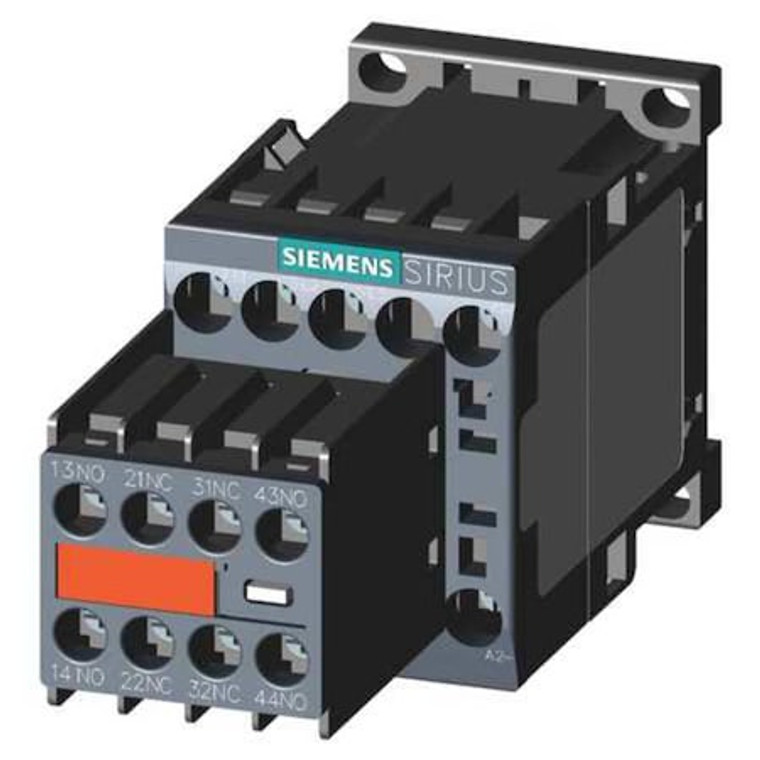

IEC Magnetic Contactor, 3 Poles, 24 V DC, 9 A, Reversing: No - 3RT20161BB443MA0

IEC Magnetic Contactor, 3 Poles, 24 V DC, 9 A, Reversing: No - 3RT20161BB443MA0

Siemens
SKU:
3RT20161BB443MA0
|
UPC:
662643907810
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Magnetic Contactor, Auxiliary Contact Form 2NO/2NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 9 A, Full Load Current - Resistive 22 A, Reversing Capability Non-Reversing, Overall Height 2.45 in, Overall Width 2.65 in, Terminal Connection Type Screw Terminals, Frame Size S00, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT Safety Contactors, Number of Auxillary Contacts 4, Contactor Style IEC
Additional Information
Country of Origin:
Germany
Item:
IEC Magnetic Contactor
Full Load Amps-Inductive:
9 A
Action:
Non-Reversing
Full Load Amps-Resistive:
22 A
Number of Poles:
3
Coil Volts:
24 V DC
Reversing:
No
HP @ 1 Phase - 120V:
1/3 hp
HP @ 1 Phase - 230V:
1
Height:
1.77 in
HP @ 1 Phase - 240V:
1 hp
Width:
1.77 in
HP @ 3 Phase - 208V:
2 hp
HP @ 3 Phase - 240V:
3 hp
HP @ 3 Phase - 575V:
7 1/2 hp
Depth:
2.87 in
HP @ 3 Phase - 480V:
5 hp
Enclosure NEMA Rating:
No Enclosure
Aux. Contact Configuration:
2NO/2NC
Frame / Series / Class / Code:
Frame B
Includes:
Permanent Mounted Aux Contact
Standards:
REACH Art 33, WEEE (2012/19/EU)
Auxiliary Contact Form:
2NO/2NC
NEMA Size:
Not Applicable
Series:
SIRIUS 3RT Safety Contactors
Max. Operating Watts:
4 kW (at 400V, AC-3), 13 kW (at 400V, AC-1)
Electrical Connection:
Screws
IP Rating:
IP20
Watts Loss:
0.3W (Current Dependent); 4W (Current Independent)
Mounting Hole Distance - Width:
1.38 in
Mounting Postion:
Vertical
Number of Normally Open Main Contacts:
3
NEMA Enclosure Rating:
No Enclosure
Mounting Hole Diameter:
0.2 in
Horsepower @ Single Phase - 240V AC:
1 hp
Maximum Operating Temperature:
140 Degrees F
Reversing Capability:
Non-Reversing
Horsepower @ Three Phase - 208V AC:
2 hp
Horsepower @ Single Phase - 120V AC:
1/3 hp
Frame Size:
S00
Full Load Current - Inductive:
9 A
Minimum Operating Temperature:
-13 Degrees F
Overall Depth:
4.8 in
Overall Width:
2.65 in
Overall Height:
2.45 in
Maximum Voltage Rating:
690V AC
Response Time:
10 to 18 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17.5 msec (DC Operation Opening Delay Operating Times for 1.0
Contactor Style:
IEC
NEMA Enclosure Material:
Not Applicable
Mounting Style:
DIN Rail, Surface
Horsepower @ Three Phase - 240V AC:
3 hp
Includes Auxiliary Contacts:
Yes
Mounting Hole Distance - Height:
1.97 in
Horsepower @ Three Phase - 480V AC:
5 hp
Mechanical Operating Durability:
30,000,000
Number of Auxillary Contacts:
4
Full Load Current - Resistive:
22 A
Phase:
Three
Horsepower @ Three Phase - 600V AC:
7 1/2 hp
Embedded Surge Suppressor:
No
Coil Voltage:
24V DC
Terminal Connection Type:
Screw Terminals
Package Quantity:
1
