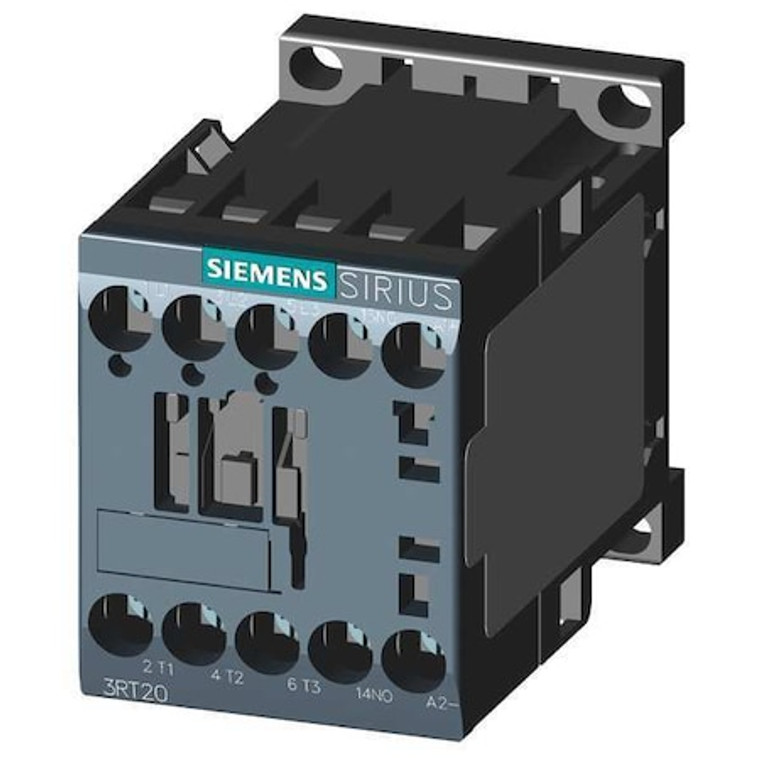

IEC Magnetic Contactor, 3 Poles, 24 V DC, 9 A, Reversing: No - 3RT20161BB41

IEC Magnetic Contactor, 3 Poles, 24 V DC, 9 A, Reversing: No - 3RT20161BB41

Siemens
SKU:
3RT20161BB41
|
UPC:
662643907773
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 9 A, Full Load Current - Resistive 22 A, Reversing Capability Non-Reversing, Overall Height 2.4 in, Overall Width 1.95 in, Terminal Connection Type Screw Terminals, Frame Size S00, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 1, Contactor Style IEC
Additional Information
Country of Origin:
Germany
Full Load Amps-Inductive:
9 A
Item:
IEC Magnetic Contactor
Action:
Non-Reversing
Full Load Amps-Resistive:
22 A
Number of Poles:
3
Coil Volts:
24 V DC
Reversing:
No
HP @ 1 Phase - 120V:
1/3 hp
HP @ 1 Phase - 230V:
1
HP @ 1 Phase - 240V:
1 hp
Height:
1.77 in
Width:
1.77 in
HP @ 3 Phase - 208V:
2 hp
Depth:
2.87 in
HP @ 3 Phase - 240V:
3 hp
HP @ 3 Phase - 575V:
7 1/2 hp
HP @ 3 Phase - 480V:
5 hp
Enclosure NEMA Rating:
No Enclosure
Aux. Contact Configuration:
1NO
Auxiliary Contact Form:
1NO
Frame / Series / Class / Code:
S00
Standards:
REACH Art 33, WEEE (2012/19/EU)
Series:
SIRIUS 3RT20
NEMA Size:
Not Applicable
Watts Loss:
0.3W (Current Dependent); 4W (Current Independent)
Max. Operating Watts:
4 kW (at 400V, AC-3), 13 kW (at 400V, AC-1)
Electrical Connection:
Screws
IP Rating:
IP20
Horsepower @ Three Phase - 600V AC:
7 1/2 hp
Terminal Connection Type:
Screw Terminals
Mounting Hole Distance - Height:
1.97 in
Horsepower @ Three Phase - 480V AC:
5 hp
Contactor Style:
IEC
Mounting Style:
DIN Rail, Surface
Mounting Hole Diameter:
0.2 in
Full Load Current - Resistive:
22 A
Phase:
Three
Overall Height:
2.4 in
Full Load Current - Inductive:
9 A
Mechanical Operating Durability:
30,000,000
Overall Width:
1.95 in
Minimum Operating Temperature:
-13 Degrees F
NEMA Enclosure Material:
Not Applicable
Overall Depth:
3.2 in
Embedded Surge Suppressor:
No
Horsepower @ Three Phase - 240V AC:
3 hp
Number of Auxillary Contacts:
1
Horsepower @ Single Phase - 120V AC:
1/3 hp
Maximum Operating Temperature:
140 Degrees F
Horsepower @ Single Phase - 240V AC:
1 hp
Coil Voltage:
24V DC
Maximum Voltage Rating:
690V AC
NEMA Enclosure Rating:
No Enclosure
Mounting Hole Distance - Width:
1.38 in
Reversing Capability:
Non-Reversing
Number of Normally Open Main Contacts:
3
Frame Size:
S00
Includes Auxiliary Contacts:
Yes
Mounting Postion:
Vertical
Horsepower @ Three Phase - 208V AC:
2 hp
Response Time:
10 to 18 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17.5 msec (DC Operation Opening Delay Operating Times for 1.0
Package Quantity:
1
