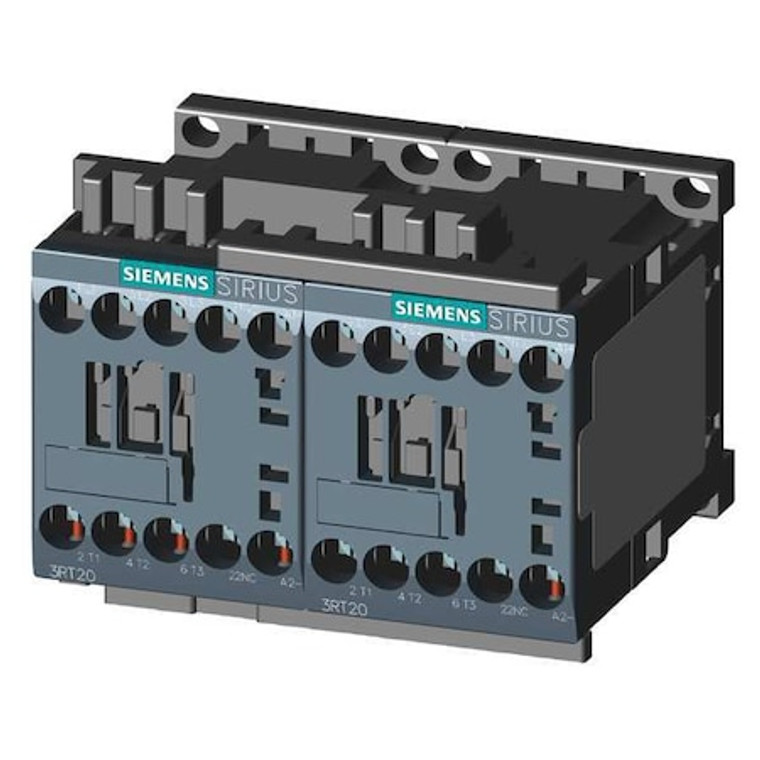

IEC Magnetic Contactor, 3 Poles, 24 V DC, 7 A, Reversing: Yes - 3RA23158XB301BB4

IEC Magnetic Contactor, 3 Poles, 24 V DC, 7 A, Reversing: Yes - 3RA23158XB301BB4

Siemens
SKU:
3RA23158XB301BB4
|
UPC:
662643897807
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Magnetic Contactor, Auxiliary Contact Form 2NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 7 A, Full Load Current - Resistive 18 A, Reversing Capability Reversing, Overall Height 3.08 in, Overall Width 2.88 in, Terminal Connection Type Screw Terminals, Frame Size S00, Mounting Style DIN Rail, Surface, Series SIRIUS 3RA23, Number of Auxillary Contacts 2, Contactor Style IEC
Additional Information
Country of Origin:
Germany
Item:
IEC Magnetic Contactor
Full Load Amps-Inductive:
7 A
Action:
Reversing
Full Load Amps-Resistive:
18 A
Number of Poles:
3
Coil Volts:
24 V DC
Reversing:
Yes
HP @ 1 Phase - 120V:
1/4 hp
HP @ 1 Phase - 230V:
3/4
HP @ 1 Phase - 240V:
3/4 hp
Height:
3.54 in
HP @ 3 Phase - 208V:
1 1/2 hp
Width:
3.54 in
HP @ 3 Phase - 240V:
2 hp
Depth:
2.87 in
HP @ 3 Phase - 575V:
5 hp
HP @ 3 Phase - 480V:
3 hp
Enclosure NEMA Rating:
No Enclosure
Aux. Contact Configuration:
2 NC
Includes:
Mechanical Interlock
Frame / Series / Class / Code:
S00
Auxiliary Contact Form:
2NC
Standards:
REACH Art 33, WEEE (2012/19/EU)
Series:
SIRIUS 3RA23
NEMA Size:
Not Applicable
IP Rating:
IP20
Embedded Surge Suppressor:
No
Overall Height:
3.08 in
Mounting Postion:
Vertical
Full Load Current - Resistive:
18 A
NEMA Enclosure Material:
Not Applicable
Reversing Capability:
Reversing
Horsepower @ Single Phase - 120V AC:
1/4 hp
Minimum Operating Temperature:
-13 Degrees F
Full Load Current - Inductive:
7 A
Horsepower @ Single Phase - 240V AC:
3/4 hp
Number of Auxillary Contacts:
2
Overall Depth:
3.71 in
Horsepower @ Three Phase - 600V AC:
5 hp
Phase:
Three
Coil Voltage:
24V DC
Frame Size:
S00
Horsepower @ Three Phase - 240V AC:
2 hp
Maximum Voltage Rating:
690V AC
Horsepower @ Three Phase - 480V AC:
3 hp
Maximum Operating Temperature:
140 Degrees F
Overall Width:
2.88 in
Horsepower @ Three Phase - 208V AC:
1 1/2 hp
Mounting Style:
DIN Rail, Surface
Number of Normally Open Main Contacts:
3
Mechanical Operating Durability:
10,000,000
Terminal Connection Type:
Screw Terminals
Contactor Style:
IEC
Number of Normally Closed Main Contacts:
0
NEMA Enclosure Rating:
No Enclosure
Includes Auxiliary Contacts:
Yes
Package Quantity:
1
