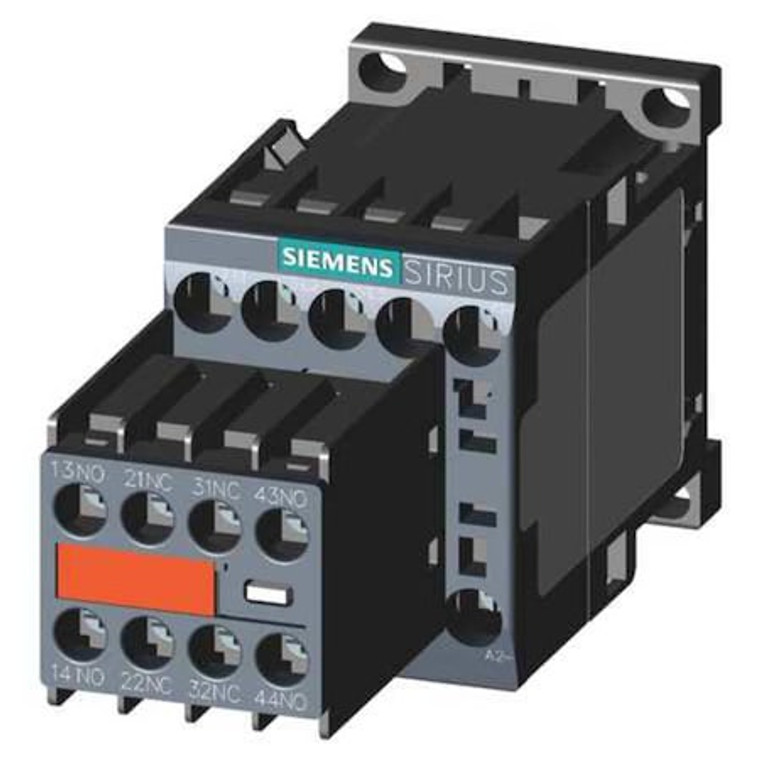

IEC Magnetic Contactor, 3 Poles, 24 V DC, 16 A, Reversing: No - 3RT20181BB443MA0

IEC Magnetic Contactor, 3 Poles, 24 V DC, 16 A, Reversing: No - 3RT20181BB443MA0

Siemens
SKU:
3RT20181BB443MA0
|
UPC:
662643913231
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Magnetic Contactor, Auxiliary Contact Form 2NO/2NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 16 A, Full Load Current - Resistive 22 A, Reversing Capability Non-Reversing, Overall Height 1.95 in, Overall Width 2.45 in, Terminal Connection Type Screw Terminals, Frame Size S00, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT Safety Contactors, Number of Auxillary Contacts 4, Contactor Style IEC
Additional Information
Country of Origin:
Germany
Full Load Amps-Inductive:
16 A
Item:
IEC Magnetic Contactor
Action:
Non-Reversing
Full Load Amps-Resistive:
22 A
Number of Poles:
3
Coil Volts:
24 V DC
Reversing:
No
HP @ 1 Phase - 230V:
2
HP @ 1 Phase - 120V:
1 hp
HP @ 1 Phase - 240V:
2 hp
Height:
1.77 in
HP @ 3 Phase - 208V:
3 hp
Width:
1.77 in
Depth:
2.87 in
HP @ 3 Phase - 240V:
5 hp
HP @ 3 Phase - 575V:
10 hp
HP @ 3 Phase - 480V:
10 hp
Enclosure NEMA Rating:
No Enclosure
Aux. Contact Configuration:
2NO/2NC
Auxiliary Contact Form:
2NO/2NC
Includes:
Permanent Mounted Aux Contact
Frame / Series / Class / Code:
Frame B
Standards:
REACH Art 33, WEEE (2012/19/EU)
NEMA Size:
Not Applicable
Series:
SIRIUS 3RT Safety Contactors
Max. Operating Watts:
8 kW (at 400V, AC-3), 13 kW (at 400V, AC-1)
IP Rating:
IP20
Electrical Connection:
Screws
Watts Loss:
1W (Current Dependent); 4W (Current Independent)
Horsepower @ Three Phase - 600V AC:
10 hp
Full Load Current - Resistive:
22 A
Horsepower @ Three Phase - 480V AC:
10 hp
NEMA Enclosure Material:
Not Applicable
Includes Auxiliary Contacts:
Yes
Terminal Connection Type:
Screw Terminals
Maximum Operating Temperature:
140 Degrees F
Contactor Style:
IEC
Minimum Operating Temperature:
-13 Degrees F
Mounting Hole Diameter:
0.2 in
Frame Size:
S00
Horsepower @ Three Phase - 240V AC:
5 hp
Mechanical Operating Durability:
30,000,000
Horsepower @ Three Phase - 208V AC:
3 hp
Overall Height:
1.95 in
Embedded Surge Suppressor:
No
Response Time:
10 to 17 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17.5 msec (DC Operation Opening Delay Operating Times for 1.0
Overall Width:
2.45 in
Horsepower @ Single Phase - 120V AC:
1 hp
NEMA Enclosure Rating:
No Enclosure
Mounting Hole Distance - Height:
1.97 in
Maximum Voltage Rating:
690V AC
Mounting Hole Distance - Width:
1.38 in
Coil Voltage:
24V DC
Mounting Style:
DIN Rail, Surface
Number of Auxillary Contacts:
4
Horsepower @ Single Phase - 240V AC:
2 hp
Number of Normally Open Main Contacts:
3
Phase:
Three
Overall Depth:
5.05 in
Mounting Postion:
Vertical
Full Load Current - Inductive:
16 A
Reversing Capability:
Non-Reversing
Package Quantity:
1
