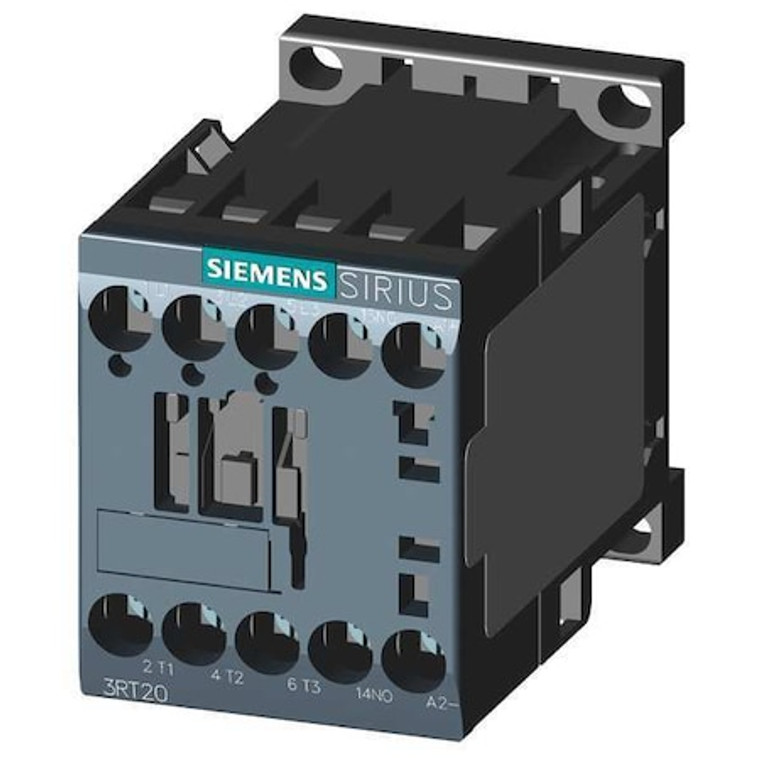

IEC Magnetic Contactor, 3 Poles, 24 V DC, 16 A, Reversing: No - 3RT20181BB41

IEC Magnetic Contactor, 3 Poles, 24 V DC, 16 A, Reversing: No - 3RT20181BB41

Siemens
SKU:
3RT20181BB41
|
UPC:
662643913194
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 16 A, Full Load Current - Resistive 22 A, Reversing Capability Non-Reversing, Overall Height 1.95 in, Overall Width 2.4 in, Terminal Connection Type Screw Terminals, Frame Size S00, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 1, Contactor Style IEC
Additional Information
Country of Origin:
Germany
Full Load Amps-Inductive:
16 A
Item:
IEC Magnetic Contactor
Full Load Amps-Resistive:
22 A
Action:
Non-Reversing
Number of Poles:
3
Coil Volts:
24 V DC
Reversing:
No
HP @ 1 Phase - 120V:
1 hp
HP @ 1 Phase - 230V:
2
Height:
1.77 in
HP @ 1 Phase - 240V:
2 hp
HP @ 3 Phase - 208V:
3 hp
Width:
1.77 in
HP @ 3 Phase - 575V:
10 hp
Depth:
2.87 in
HP @ 3 Phase - 240V:
5 hp
Enclosure NEMA Rating:
No Enclosure
HP @ 3 Phase - 480V:
10 hp
Aux. Contact Configuration:
1NO
Standards:
REACH Art 33, WEEE (2012/19/EU)
Frame / Series / Class / Code:
S00
Auxiliary Contact Form:
1NO
NEMA Size:
Not Applicable
Series:
SIRIUS 3RT20
Max. Operating Watts:
8 kW (at 400V, AC-3), 13 kW (at 400V, AC-1)
Watts Loss:
1W (Current Dependent); 4W (Current Independent)
Electrical Connection:
Screws
IP Rating:
IP20
Reversing Capability:
Non-Reversing
Mounting Postion:
Vertical
Maximum Operating Temperature:
140 Degrees F
Number of Auxillary Contacts:
1
Mounting Style:
DIN Rail, Surface
Includes Auxiliary Contacts:
Yes
Full Load Current - Inductive:
16 A
Full Load Current - Resistive:
22 A
Horsepower @ Three Phase - 208V AC:
3 hp
Contactor Style:
IEC
Response Time:
10 to 17 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17.5 msec (DC Operation Opening Delay Operating Times for 1.0
NEMA Enclosure Rating:
No Enclosure
Phase:
Three
Embedded Surge Suppressor:
No
Maximum Voltage Rating:
690V AC
Overall Width:
2.4 in
Horsepower @ Single Phase - 240V AC:
2 hp
Overall Height:
1.95 in
Frame Size:
S00
Mounting Hole Distance - Width:
1.38 in
Number of Normally Open Main Contacts:
3
Horsepower @ Three Phase - 480V AC:
10 hp
Minimum Operating Temperature:
-13 Degrees F
Coil Voltage:
24V DC
Horsepower @ Three Phase - 240V AC:
5 hp
NEMA Enclosure Material:
Not Applicable
Mechanical Operating Durability:
30,000,000
Mounting Hole Distance - Height:
1.97 in
Horsepower @ Single Phase - 120V AC:
1 hp
Horsepower @ Three Phase - 600V AC:
10 hp
Overall Depth:
3.3 in
Mounting Hole Diameter:
0.2 in
Terminal Connection Type:
Screw Terminals
Package Quantity:
1
