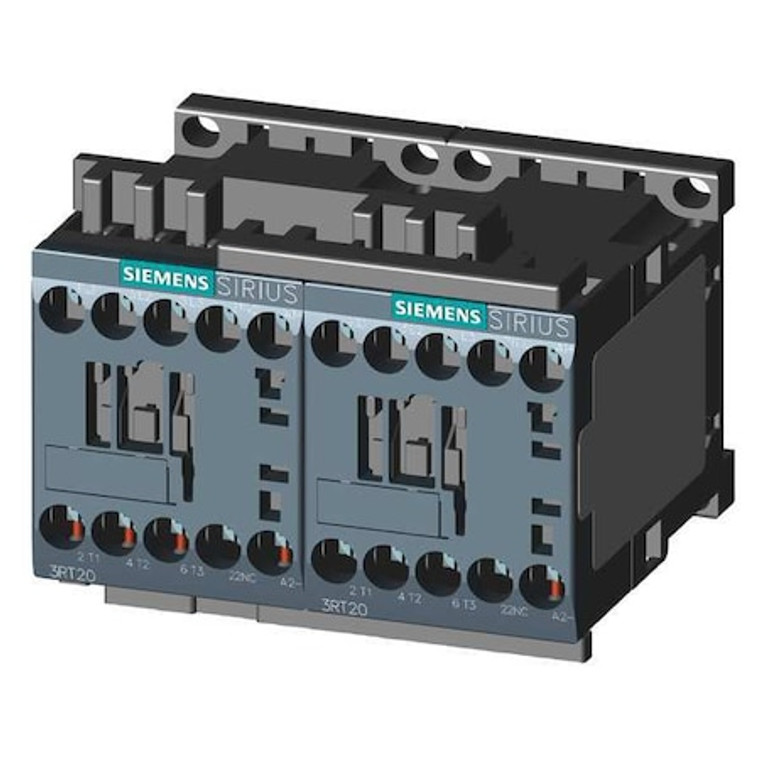

IEC Magnetic Contactor, 3 Poles, 24 V DC, 12 A, Reversing: Yes - 3RA23178XB301BB4

IEC Magnetic Contactor, 3 Poles, 24 V DC, 12 A, Reversing: Yes - 3RA23178XB301BB4

Siemens
SKU:
3RA23178XB301BB4
|
UPC:
662643898613
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Magnetic Contactor, Auxiliary Contact Form 2NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 12 A, Full Load Current - Resistive 22 A, Reversing Capability Reversing, Overall Height 3.25 in, Overall Width 3.5 in, Terminal Connection Type Screw Terminals, Frame Size S00, Mounting Style DIN Rail, Surface, Series SIRIUS 3RA23, Number of Auxillary Contacts 2, Contactor Style IEC
Additional Information
Country of Origin:
Germany
Full Load Amps-Inductive:
12 A
Item:
IEC Magnetic Contactor
Action:
Reversing
Full Load Amps-Resistive:
22 A
Number of Poles:
3
Coil Volts:
24 V DC
Reversing:
Yes
HP @ 1 Phase - 120V:
1/2 hp
HP @ 1 Phase - 230V:
2
Height:
3.54 in
HP @ 1 Phase - 240V:
2 hp
Width:
3.54 in
HP @ 3 Phase - 208V:
3 hp
HP @ 3 Phase - 575V:
10 hp
Depth:
2.87 in
HP @ 3 Phase - 240V:
3 hp
Enclosure NEMA Rating:
No Enclosure
HP @ 3 Phase - 480V:
7 1/2 hp
Aux. Contact Configuration:
2 NC
Standards:
REACH Art 33, WEEE (2012/19/EU)
Auxiliary Contact Form:
2NC
Includes:
Mechanical Interlock
Frame / Series / Class / Code:
S00
Series:
SIRIUS 3RA23
NEMA Size:
Not Applicable
IP Rating:
IP20
Number of Normally Open Main Contacts:
3
NEMA Enclosure Rating:
No Enclosure
Overall Depth:
3.8 in
Coil Voltage:
24V DC
Terminal Connection Type:
Screw Terminals
Phase:
Three
Mounting Style:
DIN Rail, Surface
NEMA Enclosure Material:
Not Applicable
Maximum Voltage Rating:
690V AC
Number of Normally Closed Main Contacts:
0
Embedded Surge Suppressor:
No
Horsepower @ Three Phase - 600V AC:
10 hp
Horsepower @ Single Phase - 240V AC:
2 hp
Horsepower @ Single Phase - 120V AC:
1/2 hp
Overall Width:
3.5 in
Number of Auxillary Contacts:
2
Horsepower @ Three Phase - 480V AC:
7 1/2 hp
Mechanical Operating Durability:
10,000,000
Frame Size:
S00
Contactor Style:
IEC
Includes Auxiliary Contacts:
Yes
Mounting Postion:
Vertical
Horsepower @ Three Phase - 208V AC:
3 hp
Minimum Operating Temperature:
-13 Degrees F
Horsepower @ Three Phase - 240V AC:
3 hp
Full Load Current - Resistive:
22 A
Overall Height:
3.25 in
Full Load Current - Inductive:
12 A
Reversing Capability:
Reversing
Maximum Operating Temperature:
140 Degrees F
Package Quantity:
1
