IEC Magnetic Contactor, 3 Poles, 24 V DC, 115 A, Reversing: No - LC1D115BD

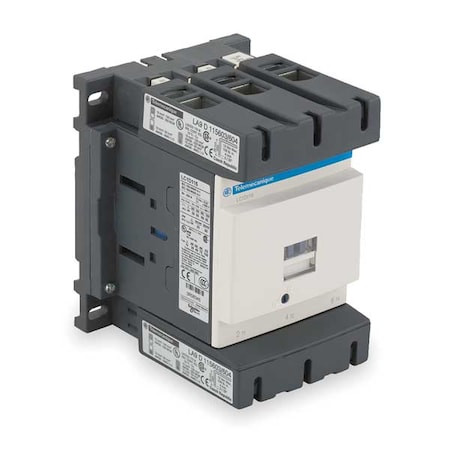

IEC Magnetic Contactor, 3 Poles, 24 V DC, 115 A, Reversing: No - LC1D115BD

Square D
SKU:
LC1D115BD
|
UPC:
785901408994
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 115 A, Full Load Current - Resistive 200 A, Reversing Capability Non-Reversing, Overall Height 6.22 in, Overall Width 0.47 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Plate, Series TeSys Deca, Number of Auxillary Contacts 2, Contactor Style IEC
Additional Information
Country of Origin:
Czechia
Item:
IEC Magnetic Contactor
Full Load Amps-Inductive:
115 A
Action:
Non-Reversing
Full Load Amps-Resistive:
200 A
Number of Poles:
3
Coil Volts:
24 V DC
Reversing:
No
Height:
4.33 in
Width:
4.33 in
HP @ 3 Phase - 208V:
30 hp
HP @ 3 Phase - 240V:
40 hp
HP @ 3 Phase - 575V:
100 hp
Depth:
5.12 in
HP @ 3 Phase - 480V:
75 hp
Enclosure NEMA Rating:
No Enclosure
Aux. Contact Configuration:
1NO/1NC
Hz:
50/60
Auxiliary Contact Form:
1NO/1NC
Standards:
BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
Frame / Series / Class / Code:
TeSys
Series:
TeSys Deca
NEMA Size:
Not Applicable
Shock Resistance:
15 G for 11 ms (Contactor Closed), 6 G for 11 ms (Contactor Open)
Non-Overlap Time:
1.5 ms
Overvoltage Category:
CAT III
Electrical Durability:
0.8 Mcycles (200 A, AC-1, Less than 440 V); 0.95 Mcycles (115 A, AC-3, Less than 440 V); 0.95 Mcycles (115 A, AC-3e, Less than 440 V)
Rated Insulation Volts:
600/1000V (Power Circuit), 600/690V (Signalling Circuit)
Insulation Resistance Range:
Greater Than 10 MOhms (Signalling Circuit)
Net Weight:
2.5 kg
Includes Protective Cover:
Yes
Switching Voltage:
17 V (Signalling Circuit)
Rated Making Capacity:
1260 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Features:
With Integral Suppression Device
Fire Rating:
UL 94 V1
Switching Current:
5 mA (Signalling Circuit)
Electrical Connection:
Screw Clamp Terminals
Signalling Circuit Frequency:
25 to 400 Hz
Max. Operating Watts:
30 kW (at 220 to 230V AC 50/60 Hz AC-3), 55 kW (at 380 to 400V AC 50/60 Hz AC-3), 59 kW 415 to (at 440V AC 50/60 Hz AC-3), 75 kW (at 500V AC 50/60 Hz AC-3), 80 kW (at 660 to 690V AC 50/60 Hz AC-3), 65 kW (at 1000V AC 50/60 Hz AC-3), 18.5 kW (at 400V
Working Height:
Up to 9842.52 ft
Max. Temperature:
850°C
Impedance:
0.6 mOhm
Environmental Attributes:
Mercury Free, PVC Free, Pollution Degree 3
Rated Voltage:
1000V AC, 300V DC
Rated Short-Time Withstand Current:
250 A (at 40°C for 10 min Power Circuit), 550 A (at 40°C for 1 min Power Circuit), 950 A (at 40°C for 10 s Power Circuit), 1100 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (F
Fuse Amps:
250 A (Type 1 Power Circuit), 200 A (Type 2 Power Circuit), 10 A (Signalling Circuit)
Mechanical Durability:
8 Mcycles
IP Rating:
IP20
Impulse Withstand Voltage:
8 kV
Thermal Amperage:
200 A (at 60°C Power Circuit)
Operating Time:
20 to 35 ms (Closing), 40 to 75 ms (Opening)
Vibration Resistance:
4 G (Contactor Closed), 2 G (Contactor Open)
Control Circuit Voltage Limits:
Operational DC
Operating Speed:
1200 cycles per hr
Mounts On:
Plate, Rail
Application:
Motor Control, Resistive Load
Tightening Torque:
1.2 Nm (Control Circuit), 12 Nm (Power Circuit)
Rated Breaking Capacity:
1100 A @ 440V
Embedded Surge Suppressor:
Yes
Horsepower @ Three Phase - 240V AC:
40 hp
NEMA Enclosure Material:
Not Applicable
Full Load Current - Inductive:
115 A
Mechanical Operating Durability:
8,000,000
Full Load Current - Resistive:
200 A
Overall Height:
6.22 in
Phase:
Three
Horsepower @ Single Phase - 240V AC:
1 hp
Resistance Properties:
Fire Resistant, Insulation Resistant
Reversing Capability:
Non-Reversing
Mounting Style:
DIN Rail, Plate
Contactor Style:
IEC
Includes Auxiliary Contacts:
Yes
Horsepower @ Three Phase - 600V AC:
100 hp
Horsepower @ Three Phase - 208V AC:
30 hp
Electrical Operating Durability:
800,000, 950,000
Number of Normally Open Main Contacts:
3
Minimum Operating Temperature:
-40 Degrees F
Overall Width:
0.47 in
Frequency:
50/60 Hz
Maximum Voltage Rating:
1000V AC
Number of Auxillary Contacts:
2
Maximum Operating Temperature:
140 Degrees F
Overall Depth:
5.35 in
Terminal Connection Type:
Screw Clamp Terminals
Horsepower @ Three Phase - 480V AC:
75 hp
Coil Voltage:
24V DC
NEMA Enclosure Rating:
No Enclosure
Package Quantity:
1
