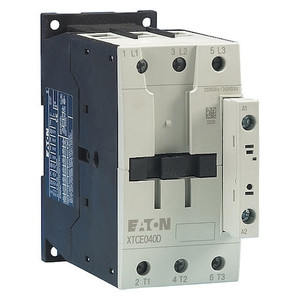

IEC Magnetic Contactor, 3 Poles, 24 V AC, 40 A, Reversing: No - XTCE040D00T

IEC Magnetic Contactor, 3 Poles, 24 V AC, 40 A, Reversing: No - XTCE040D00T

Eaton
SKU:
XTCE040D00T
|
UPC:
786685363202
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Magnetic Contactor, Auxiliary Contact Form Auxiliary Contacts Not Included, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V AC, Number of Poles 3, Full Load Current - Inductive 40 A, Full Load Current - Resistive 60 A, Reversing Capability Non-Reversing, Overall Height 3.5 in, Overall Width 4 in, Terminal Connection Type Screw Terminals, Frame Size D, Mounting Style DIN Rail, Panel, Series XT, Number of Auxillary Contacts 0, Contactor Style IEC
Additional Information
Country of Origin:
Romania
Item:
IEC Magnetic Contactor
Full Load Amps-Inductive:
40 A
Action:
Non-Reversing
Full Load Amps-Resistive:
60 A
Type:
Full voltage non-reversing contactor
Number of Poles:
3
Coil Volts:
24 V AC
Reversing:
No
HP @ 1 Phase - 120V:
3 hp
HP @ 1 Phase - 230V:
7-1/2
Height:
4.13 in
HP @ 1 Phase - 240V:
7 1/2 hp
Width:
2.17 in
HP @ 3 Phase - 208V:
10 hp
Depth:
5.2 in
HP @ 3 Phase - 240V:
15 hp
HP @ 3 Phase - 575V:
40 hp
Enclosure NEMA Rating:
No Enclosure
HP @ 3 Phase - 480V:
30 hp
Aux. Contact Configuration:
No Auxiliary Contacts
Hz:
50/60
Standards:
CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
Frame / Series / Class / Code:
Frame D
NEMA Size:
Not Applicable
Series:
XT
Auxiliary Contact Form:
Auxiliary Contacts Not Included
Electrical Connection:
Screw Terminals
IP Rating:
IP20
Hp Rating - Max:
3, 5, 7.5/ 10, 15, 30, 40 hp (1/3PH @115,200,230/200,230,460,575 V)
Product Length/Depth:
2 in
Frame Size:
D
Product Width:
4 in
Product Name:
Eaton XT IEC contactor
Frequency Rating:
50-60 Hz
Coil Voltage:
24V AC
Certifications:
UL Listed;CSA Certified;IEC 60947;EN 60947
Compliances:
CE Marked
Product Height:
3.5 in
Contact Configuration:
0 NO, 0 NC
Amperage Rating:
40A
NEMA Enclosure Material:
Not Applicable
Frequency:
50/60 Hz
Mounting Hole Distance - Height:
4.13 in
Response Time:
Less Than13 msec (AC Operated Opening Delay), Less Than18 msec (AC Operated Closing Delay), Less Than24 msec (DC Operated Opening Delay), Less Than54 msec (DC Operated Opening Delay)
Horsepower @ Single Phase - 240V AC:
7 1/2 hp
Contactor Style:
IEC
Electrical Operating Durability:
300 (AC-4 400V Ie), 800 (AC-1 400V Ie), 800 (AC-3 400V Ie)
Horsepower @ Three Phase - 480V AC:
30 hp
Horsepower @ Three Phase - 208V AC:
10 hp
Overall Width:
4 in
Mounting Hole Distance - Width:
1.77 in
Full Load Current - Inductive:
40 A
Includes Auxiliary Contacts:
No
Overall Height:
3.5 in
Terminal Connection Type:
Screw Terminals
Number of Auxillary Contacts:
0
Maximum Operating Temperature:
122 Degrees F
Horsepower @ Three Phase - 240V AC:
15 hp
Horsepower @ Three Phase - 600V AC:
40 hp
Reversing Capability:
Non-Reversing
Full Load Current - Resistive:
60 A
NEMA Enclosure Rating:
No Enclosure
Mechanical Operating Durability:
10,000,000
Horsepower @ Single Phase - 120V AC:
3 hp
Mounting Style:
DIN Rail, Panel
Overall Depth:
2 in
Minimum Operating Temperature:
-13 Degrees F
Embedded Surge Suppressor:
Yes
Mounting Hole Diameter:
0.16 in
Maximum Voltage Rating:
690V AC
Package Quantity:
1
