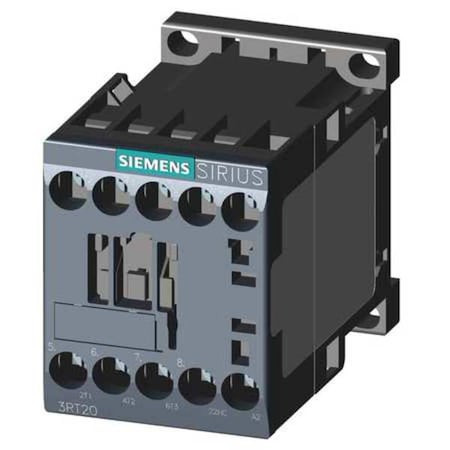

IEC Magnetic Contactor, 3 Poles, 24 V AC, 12 A, Reversing: No - 3RT20171AB02

IEC Magnetic Contactor, 3 Poles, 24 V AC, 12 A, Reversing: No - 3RT20171AB02

Siemens
SKU:
3RT20171AB02
|
UPC:
662643910933
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Magnetic Contactor, Auxiliary Contact Form 1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V AC, Number of Poles 3, Full Load Current - Inductive 12 A, Full Load Current - Resistive 22 A, Reversing Capability Non-Reversing, Overall Height 2.4 in, Overall Width 2 in, Terminal Connection Type Screw Terminals, Frame Size S00, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 1, Contactor Style IEC
Additional Information
Country of Origin:
Germany
Full Load Amps-Inductive:
12 A
Item:
IEC Magnetic Contactor
Full Load Amps-Resistive:
22 A
Number of Poles:
3
Coil Volts:
24 V AC
Reversing:
No
HP @ 1 Phase - 120V:
1/2 hp
Height:
1.77 in
HP @ 1 Phase - 240V:
2 hp
HP @ 3 Phase - 208V:
3 hp
Width:
1.77 in
HP @ 3 Phase - 575V:
10 hp
Depth:
2.87 in
HP @ 3 Phase - 240V:
3 hp
Enclosure NEMA Rating:
No Enclosure
HP @ 3 Phase - 480V:
7 1/2 hp
Aux. Contact Configuration:
1NC
Hz:
50/60
Action:
Non-Reversing
Frame / Series / Class / Code:
S00
Auxiliary Contact Form:
1NC
Standards:
REACH Art 33, WEEE (2012/19/EU)
HP @ 1 Phase - 230V:
2
NEMA Size:
Not Applicable
Series:
SIRIUS 3RT20
Max. Operating Watts:
6 kW (at 400V, AC-3), 13 kW (at 400V, AC-1)
Watts Loss:
0.5W (Current Dependent); 5.7W (Current Independent)
Electrical Connection:
Screws
IP Rating:
IP20
Maximum Voltage Rating:
690V AC
Number of Auxillary Contacts:
1
Horsepower @ Three Phase - 208V AC:
3 hp
Maximum Operating Temperature:
140 Degrees F
Embedded Surge Suppressor:
No
Reversing Capability:
Non-Reversing
Full Load Current - Inductive:
12 A
Horsepower @ Three Phase - 240V AC:
3 hp
Mounting Hole Diameter:
0.2 in
Frame Size:
S00
Includes Auxiliary Contacts:
Yes
Overall Height:
2.4 in
Full Load Current - Resistive:
22 A
NEMA Enclosure Material:
Not Applicable
Mechanical Operating Durability:
30,000,000
Response Time:
10 to 17 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17.5 msec (DC Operation Opening Delay Operating Times for 1.0
NEMA Enclosure Rating:
No Enclosure
Mounting Hole Distance - Height:
1.97 in
Mounting Postion:
Vertical
Number of Normally Open Main Contacts:
3
Horsepower @ Three Phase - 600V AC:
10 hp
Horsepower @ Three Phase - 480V AC:
7 1/2 hp
Phase:
Three
Coil Voltage:
24V AC
Mounting Hole Distance - Width:
1.38 in
Terminal Connection Type:
Screw Terminals
Mounting Style:
DIN Rail, Surface
Minimum Operating Temperature:
-13 Degrees F
Horsepower @ Single Phase - 240V AC:
2 hp
Overall Depth:
3.3 in
Overall Width:
2 in
Frequency:
50/60 Hz
Horsepower @ Single Phase - 120V AC:
1/2 hp
Contactor Style:
IEC
Package Quantity:
1
