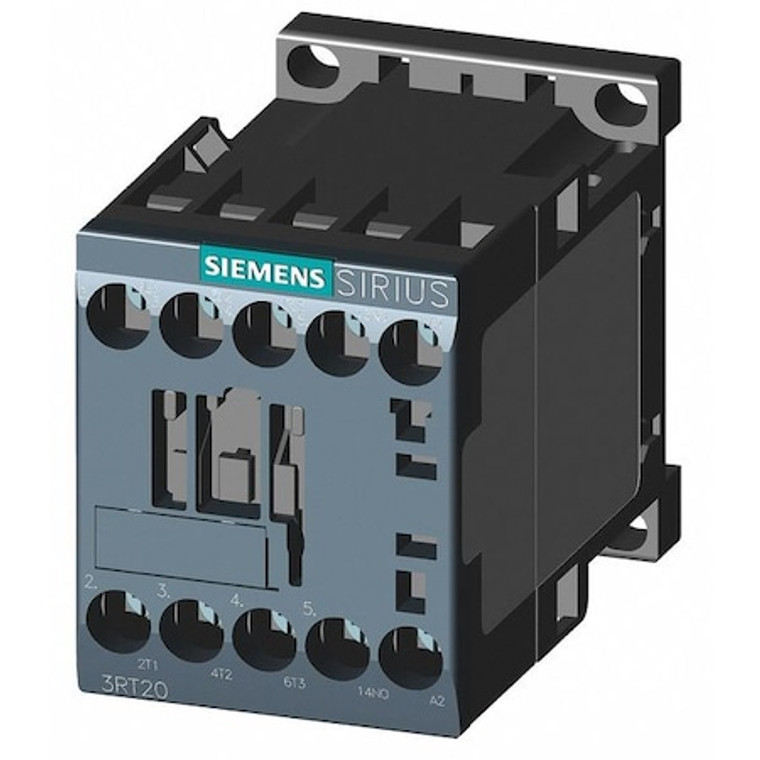

IEC Magnetic Contactor, 3 Poles, 220/240 V AC, 7 A, Reversing: No - 3RT20151AP61

IEC Magnetic Contactor, 3 Poles, 220/240 V AC, 7 A, Reversing: No - 3RT20151AP61

Siemens
SKU:
3RT20151AP61
|
UPC:
40892634259
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 220/240V AC, Number of Poles 3, Full Load Current - Inductive 7 A, Full Load Current - Resistive 18 A, Reversing Capability Non-Reversing, Overall Height 3.08 in, Overall Width 1.97 in, Terminal Connection Type Screw Terminals, Frame Size S00, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 1, Contactor Style IEC
Additional Information
Country of Origin:
Germany
Item:
IEC Magnetic Contactor
Full Load Amps-Inductive:
7 A
Full Load Amps-Resistive:
18 A
Action:
Non-Reversing
Number of Poles:
3
Coil Volts:
220/240 V AC
Reversing:
No
HP @ 1 Phase - 120V:
1/4 hp
HP @ 1 Phase - 230V:
3/4
Height:
1.77 in
HP @ 1 Phase - 240V:
3/4 hp
HP @ 3 Phase - 208V:
1 1/2 hp
Width:
1.77 in
HP @ 3 Phase - 240V:
2 hp
HP @ 3 Phase - 575V:
5 hp
Depth:
2.87 in
HP @ 3 Phase - 480V:
3 hp
Enclosure NEMA Rating:
No Enclosure
Aux. Contact Configuration:
1NO
Hz:
50/60
Frame / Series / Class / Code:
S00
Auxiliary Contact Form:
1NO
Standards:
REACH Art 33, WEEE (2012/19/EU)
NEMA Size:
Not Applicable
Series:
SIRIUS 3RT20
Max. Operating Watts:
3 kW (at 400V, AC-3), 11 kW (at 400V, AC-1)
Watts Loss:
0.2W (Current Dependent); 4.4W (Current Independent)
Electrical Connection:
Screws
IP Rating:
IP20
Contactor Style:
IEC
Minimum Operating Temperature:
-13 Degrees F
Overall Depth:
2.45 in
Horsepower @ Three Phase - 208V AC:
1 1/2 hp
Mounting Postion:
Vertical
Mounting Hole Diameter:
0.2 in
Mounting Hole Distance - Height:
1.97 in
Reversing Capability:
Non-Reversing
Full Load Current - Resistive:
18 A
Number of Auxillary Contacts:
1
Mounting Style:
DIN Rail, Surface
Horsepower @ Single Phase - 240V AC:
3/4 hp
NEMA Enclosure Rating:
No Enclosure
Full Load Current - Inductive:
7 A
Horsepower @ Three Phase - 480V AC:
3 hp
Horsepower @ Three Phase - 240V AC:
2 hp
NEMA Enclosure Material:
Not Applicable
Includes Auxiliary Contacts:
Yes
Horsepower @ Single Phase - 120V AC:
1/4 hp
Maximum Operating Temperature:
140 Degrees F
Horsepower @ Three Phase - 600V AC:
5 hp
Mechanical Operating Durability:
30,000,000
Overall Width:
1.97 in
Terminal Connection Type:
Screw Terminals
Mounting Hole Distance - Width:
1.38 in
Phase:
Three
Frame Size:
S00
Number of Normally Open Main Contacts:
3
Maximum Voltage Rating:
690V AC
Embedded Surge Suppressor:
No
Coil Voltage:
220/240V AC
Response Time:
10 to 18 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17.5 msec (DC Operation Opening Delay Operating Times for 1.0
Overall Height:
3.08 in
Frequency:
50/60 Hz
Package Quantity:
1
