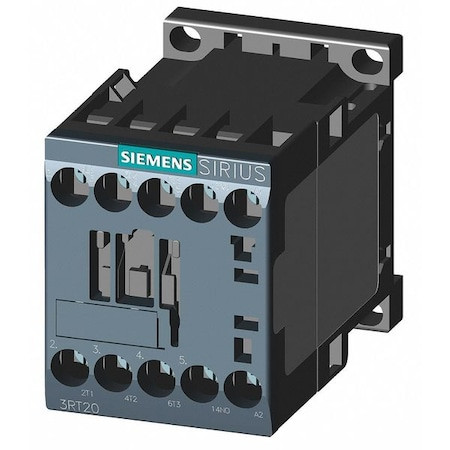

IEC Magnetic Contactor, 3 Poles, 208 V AC, 16 A, Reversing: No - 3RT20181AN61

IEC Magnetic Contactor, 3 Poles, 208 V AC, 16 A, Reversing: No - 3RT20181AN61

Siemens
SKU:
3RT20181AN61
|
UPC:
662643912685
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 200/220V AC, Number of Poles 3, Full Load Current - Inductive 16 A, Full Load Current - Resistive 22 A, Reversing Capability Non-Reversing, Overall Height 3.08 in, Overall Width 1.97 in, Terminal Connection Type Screw Terminals, Frame Size S00, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 1, Contactor Style IEC
Additional Information
Country of Origin:
Germany
Item:
IEC Magnetic Contactor
Full Load Amps-Inductive:
16 A
Action:
Non-Reversing
Full Load Amps-Resistive:
22 A
Number of Poles:
3
Coil Volts:
208 V AC
Reversing:
No
HP @ 1 Phase - 120V:
1 hp
HP @ 1 Phase - 230V:
2
Height:
1.77 in
HP @ 1 Phase - 240V:
2 hp
HP @ 3 Phase - 208V:
3 hp
Width:
1.77 in
HP @ 3 Phase - 575V:
10 hp
Depth:
2.87 in
HP @ 3 Phase - 240V:
5 hp
HP @ 3 Phase - 480V:
10 hp
Enclosure NEMA Rating:
No Enclosure
Aux. Contact Configuration:
1NO
Hz:
50/60
Auxiliary Contact Form:
1NO
Frame / Series / Class / Code:
S00
Standards:
REACH Art 33, WEEE (2012/19/EU)
Series:
SIRIUS 3RT20
NEMA Size:
Not Applicable
IP Rating:
IP20
Watts Loss:
1W (Current Dependent); 6.5W (Current Independent)
Electrical Connection:
Screws
Max. Operating Watts:
8 kW (at 400V, AC-3), 13 kW (at 400V, AC-1)
Mounting Hole Distance - Width:
1.38 in
Horsepower @ Single Phase - 240V AC:
2 hp
Maximum Voltage Rating:
690V AC
Horsepower @ Single Phase - 120V AC:
1 hp
Mechanical Operating Durability:
30,000,000
NEMA Enclosure Rating:
No Enclosure
Mounting Hole Diameter:
0.2 in
Horsepower @ Three Phase - 240V AC:
5 hp
Horsepower @ Three Phase - 480V AC:
10 hp
Overall Height:
3.08 in
Coil Voltage:
200/220V AC
Overall Width:
1.97 in
Frame Size:
S00
Minimum Operating Temperature:
-13 Degrees F
Terminal Connection Type:
Screw Terminals
Embedded Surge Suppressor:
No
Full Load Current - Resistive:
22 A
Includes Auxiliary Contacts:
Yes
Full Load Current - Inductive:
16 A
Mounting Hole Distance - Height:
1.97 in
NEMA Enclosure Material:
Not Applicable
Maximum Operating Temperature:
140 Degrees F
Reversing Capability:
Non-Reversing
Overall Depth:
2.45 in
Horsepower @ Three Phase - 208V AC:
3 hp
Horsepower @ Three Phase - 600V AC:
10 hp
Contactor Style:
IEC
Mounting Postion:
Vertical
Frequency:
50/60 Hz
Response Time:
10 to 17 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17.5 msec (DC Operation Opening Delay Operating Times for 1.0
Number of Auxillary Contacts:
1
Mounting Style:
DIN Rail, Surface
Phase:
Three
Number of Normally Open Main Contacts:
3
Package Quantity:
1
