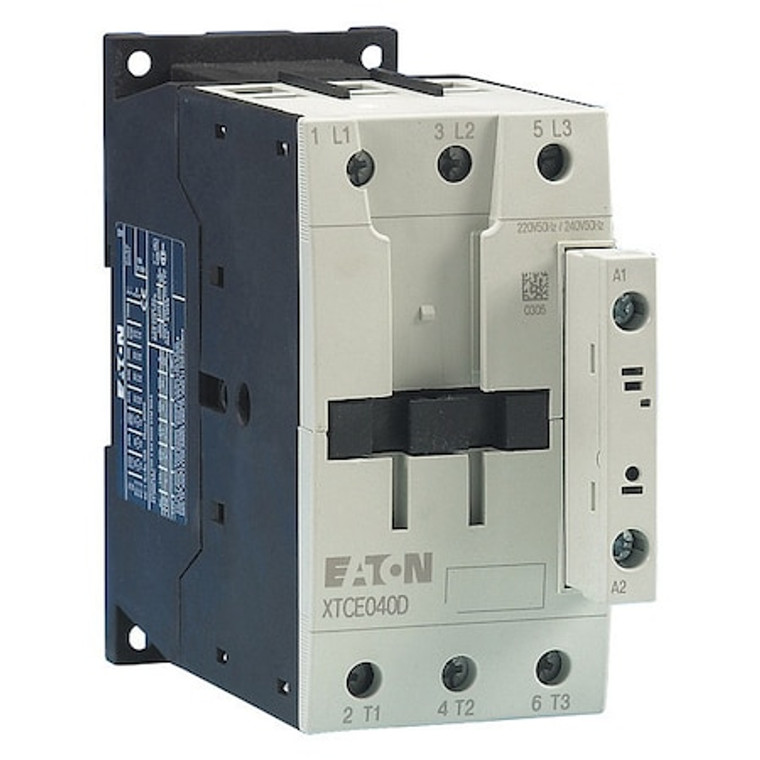

IEC Magnetic Contactor, 3 Poles, 120 V AC, 40 A, Reversing: No - XTCE040D00A

IEC Magnetic Contactor, 3 Poles, 120 V AC, 40 A, Reversing: No - XTCE040D00A

Eaton
SKU:
XTCE040D00A
|
UPC:
786685363189
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Magnetic Contactor, Auxiliary Contact Form Auxiliary Contacts Not Included, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 110/120V AC, Number of Poles 3, Full Load Current - Inductive 40 A, Full Load Current - Resistive 60 A, Reversing Capability Non-Reversing, Overall Height 2.5 in, Overall Width 5 in, Terminal Connection Type Screw Terminals, Frame Size D, Mounting Style DIN Rail, Panel, Series XT, Number of Auxillary Contacts 0, Contactor Style IEC
Additional Information
Country of Origin:
Romania
Full Load Amps-Inductive:
40 A
Item:
IEC Magnetic Contactor
Full Load Amps-Resistive:
60 A
Action:
Non-Reversing
Type:
Full voltage non-reversing contactor
Number of Poles:
3
Coil Volts:
120 V AC
Reversing:
No
HP @ 1 Phase - 230V:
7-1/2
HP @ 1 Phase - 120V:
3 hp
Height:
4.13 in
HP @ 1 Phase - 240V:
7 1/2 hp
Width:
2.17 in
HP @ 3 Phase - 208V:
10 hp
HP @ 3 Phase - 240V:
15 hp
Depth:
5.2 in
HP @ 3 Phase - 575V:
40 hp
Enclosure NEMA Rating:
No Enclosure
HP @ 3 Phase - 480V:
30 hp
Aux. Contact Configuration:
No Auxiliary Contacts
Hz:
50/60
Frame / Series / Class / Code:
Frame D
Standards:
CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
NEMA Size:
Not Applicable
Auxiliary Contact Form:
Auxiliary Contacts Not Included
Series:
XT
Electrical Connection:
Screw Terminals
IP Rating:
IP20
Certifications:
UL Listed;CSA Certified;IEC 60947;EN 60947
Frame Size:
D
Amperage Rating:
40A
Hp Rating - Max:
3, 5, 7.5/ 10, 15, 30, 40 hp (1/3PH @115,200,230/200,230,460,575 V)
Product Width:
5 in
Frequency Rating:
50-60 Hz
Contact Configuration:
0 NO, 0 NC
Compliances:
CE Marked
Product Name:
Eaton XT IEC contactor
Product Length/Depth:
6.25 in
Product Height:
2.5 in
Coil Voltage:
110/120V AC
Minimum Operating Temperature:
-13 Degrees F
Contactor Style:
IEC
Includes Auxiliary Contacts:
No
NEMA Enclosure Material:
Not Applicable
Horsepower @ Three Phase - 240V AC:
15 hp
Mounting Hole Distance - Height:
4.13 in
Electrical Operating Durability:
300 (AC-4 400V Ie), 800 (AC-1 400V Ie), 800 (AC-3 400V Ie)
Maximum Operating Temperature:
122 Degrees F
Maximum Voltage Rating:
690V AC
Mounting Style:
DIN Rail, Panel
Mechanical Operating Durability:
10,000,000
NEMA Enclosure Rating:
No Enclosure
Reversing Capability:
Non-Reversing
Overall Depth:
6.25 in
Horsepower @ Three Phase - 600V AC:
40 hp
Horsepower @ Three Phase - 480V AC:
30 hp
Mounting Hole Diameter:
0.16 in
Overall Height:
2.5 in
Embedded Surge Suppressor:
Yes
Frequency:
50/60 Hz
Response Time:
Less Than13 msec (AC Operated Opening Delay), Less Than18 msec (AC Operated Closing Delay), Less Than24 msec (DC Operated Opening Delay), Less Than54 msec (DC Operated Opening Delay)
Horsepower @ Three Phase - 208V AC:
10 hp
Number of Auxillary Contacts:
0
Horsepower @ Single Phase - 120V AC:
3 hp
Full Load Current - Inductive:
40 A
Mounting Hole Distance - Width:
1.77 in
Terminal Connection Type:
Screw Terminals
Overall Width:
5 in
Full Load Current - Resistive:
60 A
Horsepower @ Single Phase - 240V AC:
7 1/2 hp
Package Quantity:
1
