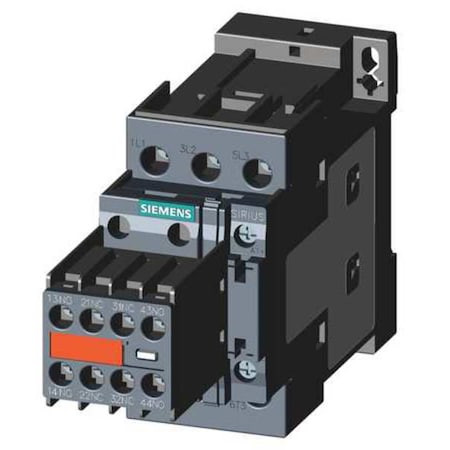

IEC Magnetic Contactor, 3 Poles, 110/120 V AC, 32 A, Reversing: No - 3RT20271AK643MA0

IEC Magnetic Contactor, 3 Poles, 110/120 V AC, 32 A, Reversing: No - 3RT20271AK643MA0

Siemens
SKU:
3RT20271AK643MA0
|
UPC:
40892633252
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Magnetic Contactor, Auxiliary Contact Form 2NO/2NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 110/120V AC, Number of Poles 3, Full Load Current - Inductive 32 A, Full Load Current - Resistive 50 A, Reversing Capability Non-Reversing, Overall Height 5.87 in, Overall Width 2.13 in, Terminal Connection Type Screw Terminals, Frame Size S0, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT Safety Contactors, Number of Auxillary Contacts 4, Contactor Style IEC
Additional Information
Country of Origin:
Germany
Full Load Amps-Inductive:
32 A
Item:
IEC Magnetic Contactor
Full Load Amps-Resistive:
50 A
Action:
Non-Reversing
Number of Poles:
3
Coil Volts:
110/120 V AC
Reversing:
No
HP @ 1 Phase - 230V:
5
HP @ 1 Phase - 120V:
2 hp
HP @ 1 Phase - 240V:
5 hp
Height:
1.77 in
HP @ 3 Phase - 208V:
10 hp
Width:
1.77 in
Depth:
3.82 in
HP @ 3 Phase - 240V:
10 hp
HP @ 3 Phase - 575V:
25 hp
Enclosure NEMA Rating:
No Enclosure
HP @ 3 Phase - 480V:
20 hp
Aux. Contact Configuration:
2NO/2NC
Hz:
50/60
Includes:
Permanent Mounted Aux Contact
Standards:
REACH Art 33, WEEE (2012/19/EU)
Frame / Series / Class / Code:
S0
Auxiliary Contact Form:
2NO/2NC
NEMA Size:
Not Applicable
Series:
SIRIUS 3RT Safety Contactors
Max. Operating Watts:
15 kW (at 400V, AC-3), 28 kW (at 400V, AC-1)
IP Rating:
IP20
Watts Loss:
2.3W (Current Dependent); 10.5W (Current Independent)
Electrical Connection:
Screws
Mounting Hole Diameter:
0.19 in
Horsepower @ Single Phase - 240V AC:
5 hp
NEMA Enclosure Rating:
No Enclosure
Reversing Capability:
Non-Reversing
Embedded Surge Suppressor:
No
Coil Voltage:
110/120V AC
Horsepower @ Three Phase - 240V AC:
10 hp
Mounting Style:
DIN Rail, Surface
Mechanical Operating Durability:
10,000,000
Terminal Connection Type:
Screw Terminals
Full Load Current - Inductive:
32 A
Horsepower @ Three Phase - 208V AC:
10 hp
Horsepower @ Single Phase - 120V AC:
2 hp
Overall Depth:
3.63 in
Full Load Current - Resistive:
50 A
Number of Auxillary Contacts:
4
Number of Normally Open Main Contacts:
3
Maximum Operating Temperature:
140 Degrees F
Mounting Postion:
Vertical
Mounting Hole Distance - Width:
1.38 in
Horsepower @ Three Phase - 600V AC:
25 hp
Minimum Operating Temperature:
-13 Degrees F
NEMA Enclosure Material:
Not Applicable
Mounting Hole Distance - Height:
2.36 in
Maximum Voltage Rating:
690V AC
Response Time:
4 to 16 msec (Opening Delay at AC), 8 to 40 msec (Closing Delay at AC)
Horsepower @ Three Phase - 480V AC:
20 hp
Frame Size:
S0
Overall Height:
5.87 in
Overall Width:
2.13 in
Frequency:
50/60 Hz
Contactor Style:
IEC
Phase:
Three
Includes Auxiliary Contacts:
Yes
Package Quantity:
1
