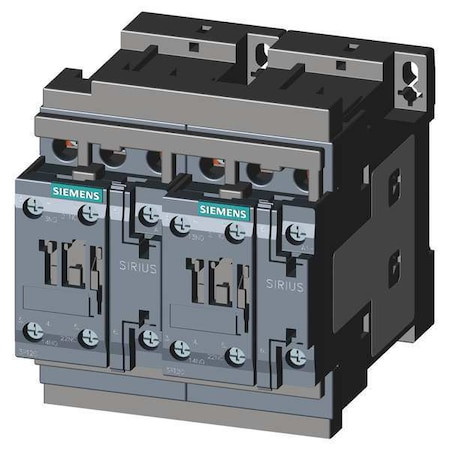

IEC Magnetic Contactor, 3 Poles, 110/120 V AC, 12 A, Reversing: Yes - 3RA23248XB301AK6

IEC Magnetic Contactor, 3 Poles, 110/120 V AC, 12 A, Reversing: Yes - 3RA23248XB301AK6

Siemens
SKU:
3RA23248XB301AK6
|
UPC:
662643905151
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Magnetic Contactor, Auxiliary Contact Form 2NO, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 110/120V AC, Number of Poles 3, Full Load Current - Inductive 12 A, Full Load Current - Resistive 40 A, Reversing Capability Reversing, Overall Height 4.41 in, Overall Width 3.82 in, Terminal Connection Type Screw Terminals, Frame Size S0, Mounting Style DIN Rail, Surface, Series SIRIUS 3RA23, Number of Auxillary Contacts 3, Contactor Style IEC
Additional Information
Country of Origin:
Germany
Item:
IEC Magnetic Contactor
Full Load Amps-Inductive:
12 A
Action:
Reversing
Full Load Amps-Resistive:
40 A
Number of Poles:
3
Coil Volts:
110/120 V AC
Reversing:
Yes
HP @ 1 Phase - 230V:
2
HP @ 1 Phase - 120V:
1 hp
Height:
3.54 in
HP @ 1 Phase - 240V:
2 hp
Width:
3.54 in
HP @ 3 Phase - 240V:
3 hp
HP @ 3 Phase - 575V:
10 hp
Depth:
3.82 in
HP @ 3 Phase - 480V:
7 1/2 hp
Enclosure NEMA Rating:
No Enclosure
Aux. Contact Configuration:
2NO/2NC
Hz:
50/60
Auxiliary Contact Form:
2NO
Frame / Series / Class / Code:
S0
Standards:
REACH Art 33, WEEE (2012/19/EU)
Includes:
Mechanical Interlock
Series:
SIRIUS 3RA23
NEMA Size:
Not Applicable
IP Rating:
IP20
Contactor Style:
IEC
Number of Auxillary Contacts:
3
Reversing Capability:
Reversing
Horsepower @ Three Phase - 600V AC:
10 hp
Embedded Surge Suppressor:
No
Maximum Voltage Rating:
690V AC
Frame Size:
S0
Horsepower @ Three Phase - 480V AC:
7 1/2 hp
Horsepower @ Single Phase - 120V AC:
1 hp
NEMA Enclosure Rating:
No Enclosure
Mounting Postion:
Vertical
Mechanical Operating Durability:
10,000,000
Includes Auxiliary Contacts:
Yes
Coil Voltage:
110/120V AC
Horsepower @ Three Phase - 208V AC:
3 hp
NEMA Enclosure Material:
Not Applicable
Overall Height:
4.41 in
Overall Width:
3.82 in
Frequency:
50/60 Hz
Number of Normally Closed Main Contacts:
0
Number of Normally Open Main Contacts:
3
Phase:
Three
Overall Depth:
4.3 in
Maximum Operating Temperature:
140 Degrees F
Minimum Operating Temperature:
-13 Degrees F
Horsepower @ Single Phase - 240V AC:
2 hp
Full Load Current - Resistive:
40 A
Full Load Current - Inductive:
12 A
Horsepower @ Three Phase - 240V AC:
3 hp
Mounting Style:
DIN Rail, Surface
Terminal Connection Type:
Screw Terminals
Package Quantity:
1
