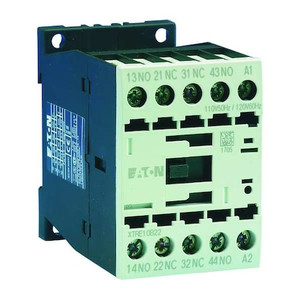

IEC Control Relay2NO/2NC480VAC16A - XTRE10B22C

IEC Control Relay2NO/2NC480VAC16A - XTRE10B22C

Eaton
SKU:
XTRE10B22C
|
UPC:
786685364612
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Control Relay, Current Rating 10 A, Contact Form 2NO/2NC, Contact Rating (DC) 10 A @ 24V, Coil Voltage 415/480V AC, Contact Rating (AC) 6 A @ 240V, Relay Style IEC, Electrical Connection Screw Terminal, Mounting Style DIN Rail, Power Consumption 3.3 VA, IP Rating IP20, Frame Size 45 mm, NEMA Size Not Applicable, Compatible with Series XTRE Control Relays, Maximum Operating Temperature 140 Degrees F, Frequency 50/60 Hz, Body Depth 2.97 in, Body Height 3.07 in, Body Width 1.77 in
Additional Information
Country of Origin:
Romania
Item - Relay:
IEC Style Control Relay
Coil Volts:
480V AC
AC Contact Rating - Relay:
6A @ 240V
DC Contact Rating - Relay:
10A @ 24V
Number of Pins - Relay:
10
Contact Form - Relay:
(2) SPST-NC, (2) SPST-NO
Mounting - Relay:
DIN Rail
Overall Height - Relay:
2.68 in
Coil Rating:
25VA Inrush, 3.3VA Sealed
Hz - Electrical:
50 Hz, 60 Hz
Features:
4-Pole Configurations, Available with Screw or Spring Cage Terminals, IP20 Finger and Back-of-Hand Proof
Contact Amp Rating (Resistive):
16A
Standards:
UL Listed
Body Width - Relay:
1.77 in
Mounting:
Din Rail
Item:
IEC Control Relay
Body Height - Relay:
2.68 in
Body Depth - Relay:
2.95 in
Contact Form:
2NO/2NC
Response Time:
15 to 21 msec (Closing Delay), 9 to 18 msec (Opening Delay)
Contact Material:
Silver Tin Oxide Alloy
Power Consumption - Relay:
3.3 VA
Hz:
50/60
Contact configuration:
2 NO, 2 NC
Conventional thermal current:
10A
Product Width:
2.76 in
Certifications:
UL Listed
Product Height:
3.07 in
Product Length/Depth:
1.81 in
Rated operational current:
6 A at 220/230/240 V
Coil:
415-480 Vac, 50/60 Hz
Terminals:
Screw terminals
Type:
Control relay
Frame size:
45 mm - standard
Product Name:
Eaton XT IEC control relay
Relay Style:
IEC
IP Rating:
IP20
Contact Rating (AC):
6 A @ 240V
Contact Rating (DC):
10 A @ 24V
Weight:
0.5 lb
Mechanical Operating Durability (AC):
20,000,000
Overall Height:
3.07 in
For Use With:
Contactors, Starters
Coil Voltage:
415/480V AC
Current Rating:
10 A
Power Consumption:
3.3 VA
Frame Size:
45 mm
NEMA Size:
Not Applicable
Body Depth:
2.97 in
Body Width:
1.77 in
Mounting Style:
DIN Rail
Electrical Connection:
Screw Terminal
Minimum Operating Temperature:
-13 Degrees F
Number of Pins:
10
Body Height:
3.07 in
Mechanical Operating Durability (DC):
20,000,000
Compatible with Series:
XTRE Control Relays
Frequency:
50/60 Hz
Input Voltage:
415/480V AC
Maximum Operating Temperature:
140 Degrees F
Package Quantity:
1
