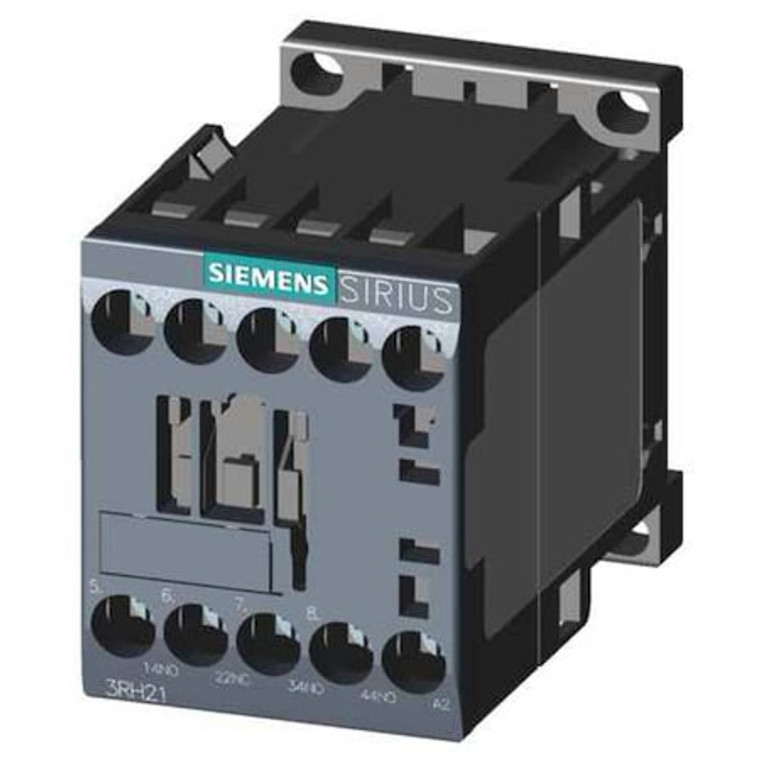

IEC Control Relay, 3NO/1NC, 240VAC, 10A - 3RH21311AP60

IEC Control Relay, 3NO/1NC, 240VAC, 10A - 3RH21311AP60

Siemens
SKU:
3RH21311AP60
|
UPC:
662643906264
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Control Relay, Current Rating 10 A, Contact Form 3NO/1NC, Contact Rating (DC) 0.15 A @ 600V, 0.3 A @ 440V, 1 A @ 240V, 10 A @ 24V, 3 A @ 120V, Coil Voltage 220/240V AC, Contact Rating (AC) 1 A @ 690V, 10 A @ 240V, 2 A @ 500V, 3 A @ 400V, Relay Style IEC, Electrical Connection Screw Terminal, Mounting Style DIN Rail and Surface, Power Consumption 5.7 VA, IP Rating IP20, Frame Size S00, NEMA Size Not Applicable, Compatible with Series 3RH21 Control Relays
Additional Information
Country of Origin:
Germany
Item - Relay:
IEC Style Control Relay
Coil Volts:
240V AC
AC Contact Rating - Relay:
10A @ 230V
DC Contact Rating - Relay:
10A @ 24V
Number of Pins - Relay:
10
Contact Form - Relay:
(1) SPST-NC, (3) SPST-NO
Mounting - Relay:
DIN Rail
Body Height - Relay:
2.26 in
Body Width - Relay:
1.77 in
Power Consumption - Relay:
5.7 VA
Standards:
RoHS Compliant, WEEE (2012/19/EU)
Contact Amp Rating (Resistive):
10A
Contact Form:
3NO/1NC
Mounting:
Din Rail
Overall Height - Relay:
2.26 in
Hz - Electrical:
50 Hz, 60 Hz
Hz:
50/60
Response Time:
10 to 15 msec (Arcing Time), 4 to 15 msec (Opening Delay), 8 to 33 msec (Closing Delay)
Coil Rating:
37VA Inrush, 5.7VA Sealed
Body Depth - Relay:
2.87 in
Contact Material:
Silver Nickel
Item:
IEC Control Relay
Connection:
screw-type terminals
Power Factor:
0.8
Coil voltage:
AC
Operating Temperature:
-25°C ... 60°C
Type:
Auxiliary contactor
Operating Cycles:
30000000
Contact configuration:
1
Contact Rating:
A600 / Q600
Size:
0.045 m / 0.0575 m / 0.073 m
NEMA Size:
Not Applicable
Contact Rating (DC):
0.15 A @ 600V, 0.3 A @ 440V, 1 A @ 240V, 10 A @ 24V, 3 A @ 120V
Current Rating:
10 A
Frame Size:
S00
Compatible with Series:
3RH21 Control Relays
Overall Height:
2.26 in
Body Width:
1.77 in
Input Voltage:
220/240V AC
Mounting Style:
DIN Rail and Surface
Number of Pins:
10
Coil Voltage:
220/240V AC
Body Depth:
2.87 in
Power Consumption:
5.7 VA
Contact Rating (AC):
1 A @ 690V, 10 A @ 240V, 2 A @ 500V, 3 A @ 400V
Body Height:
2.26 in
IP Rating:
IP20
Frequency:
50/60 Hz
Electrical Connection:
Screw Terminal
Maximum Operating Temperature:
140 Degrees F
Relay Style:
IEC
Minimum Operating Temperature:
-13 Degrees F
Package Quantity:
1
