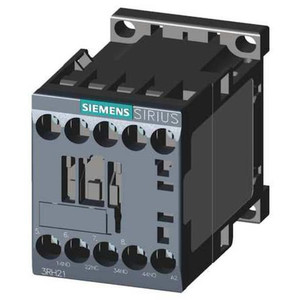

IEC Control Relay, 3NO/1NC, 220VDC, 10A - 3RH21311BM40

IEC Control Relay, 3NO/1NC, 220VDC, 10A - 3RH21311BM40

Siemens
SKU:
3RH21311BM40
|
UPC:
662643906325
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Control Relay, Current Rating 10 A, Contact Form 3NO/1NC, Contact Rating (DC) 0.15 A @ 600V, 0.3 A @ 440V, 1 A @ 240V, 10 A @ 24V, 3 A @ 120V, Coil Voltage 220V DC, Contact Rating (AC) 1 A @ 690V, 10 A @ 240V, 2 A @ 500V, 3 A @ 400V, Relay Style IEC, Electrical Connection Screw Terminal, Mounting Style DIN Rail and Surface, Power Consumption 4 W, IP Rating IP20, Frame Size S00, NEMA Size Not Applicable, Compatible with Series 3RH21 Control Relays, Maximum Operating Temperature 140 Degrees F
Additional Information
Country of Origin:
Germany
Item - Relay:
IEC Style Control Relay
Coil Volts:
220V DC
AC Contact Rating - Relay:
10A @ 230V
DC Contact Rating - Relay:
10A @ 24V
Number of Pins - Relay:
10
Contact Form - Relay:
(1) SPST-NC, (3) SPST-NO
Mounting - Relay:
DIN Rail
Contact Amp Rating (Resistive):
10A
Body Width - Relay:
1.77 in
Coil Rating:
4W Inrush, 4W Sealed
Mounting:
Din Rail
Body Height - Relay:
2.26 in
Item:
IEC Control Relay
Contact Form:
3NO/1NC
Power Consumption - Relay:
4.0 W
Standards:
RoHS Compliant, WEEE (2012/19/EU)
Overall Height - Relay:
2.26 in
Hz:
Not Applicable
Body Depth - Relay:
2.87 in
Contact Material:
Silver Nickel
Response Time:
10 to 15 msec (Arcing Time), 30 to 100 msec (Closing Delay), 7 to 13 msec (Opening Delay)
Contact Rating:
A600 / Q600
Coil voltage:
DC
Type:
Auxiliary contactor
Coil Power Rating:
4 W / 4 W
Operating Cycles:
30000000
Connection:
screw-type terminals
Operating Temperature:
-25°C ... 60°C
Contact configuration:
1
Size:
0.045 m / 0.0575 m / 0.073 m
Body Depth:
2.87 in
Relay Style:
IEC
Compatible with Series:
3RH21 Control Relays
Number of Pins:
10
Electrical Connection:
Screw Terminal
Contact Rating (DC):
0.15 A @ 600V, 0.3 A @ 440V, 1 A @ 240V, 10 A @ 24V, 3 A @ 120V
Power Consumption:
4 W
Mounting Style:
DIN Rail and Surface
IP Rating:
IP20
Coil Voltage:
220V DC
Minimum Operating Temperature:
-13 Degrees F
Overall Height:
2.26 in
Input Voltage:
220V DC
Body Width:
1.77 in
Body Height:
2.26 in
Contact Rating (AC):
1 A @ 690V, 10 A @ 240V, 2 A @ 500V, 3 A @ 400V
Frame Size:
S00
NEMA Size:
Not Applicable
Current Rating:
10 A
Maximum Operating Temperature:
140 Degrees F
Package Quantity:
1
