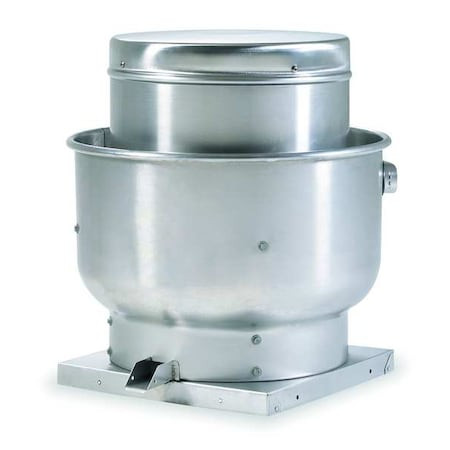

Hzd. Loc. Vent, 18-1/2 In, 115/208-230V - 7HY66

Hzd. Loc. Vent, 18-1/2 In, 115/208-230V - 7HY66

Dayton
SKU:
7HY66
|
UPC:
799471519479
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Centrifugal Upblast Roof Exhaust Fan, Application Industrial and Commercial Buildings, Drive Type Belt Drive, For Air Type Flammable Vapor, Base Diameter Not Applicable, Base Width 30 in, Base Length 30 in, Base Shape Square, Maximum Static Pressure 1 in wc, Exhaust Airflow @ 0.000 in SP 4,061 cfm, Nameplate Voltage 115/208-230V AC, Phase 1, Motor Horsepower 3/4 hp, Assembly Unassembled, Number of Speeds 1, Housing Material Aluminum, Wheel Material Aluminum, High-Efficiency Motor No
Additional Information
Country of Origin:
Multiple
Item - Roof Ventilators:
Upblast Ventilator
Drive Package With Motor Included:
Yes
Duty Rating - Roof Ventilators:
Hazardous Location
Drive Type - Roof Ventilators:
Belt Drive
Mounting Location - Roof Ventilators:
Roof
Number of Speeds:
1
Voltage - Roof Ventilators:
115V AC/208V AC/230V AC
Motor HP - Roof Ventilators:
3/4 hp
Base Size - Roof Ventilators:
30 in x 30 in
CFM @ 0.000-In. SP:
4061
Recommended 12 In. Fixed Curb Item No.:
2RB79
CFM @ 1.000-In. SP:
2652
CFM @ 0.250-In. SP:
3786
Max. Operating Amps:
11.0/5.4-5.5
Shaft Dia. Wheel End:
3/4 in
Item:
Centrifugal Upblast Roof Exhaust Fan
Wheel Material:
Aluminum
Base Height:
1.8 in
CFM @ 0.875-In. SP:
2926
Mounting Location:
Roof
CFM @ 0.750-In. SP:
3141
Adj. 12 3/8H Roof Curb Stock No.:
2ZV83"
Base Width:
30 in
Includes:
Hazardous Location Motor that meets Class I, Groups C & D AND Class II, Groups E, F & G
Motor HP:
3/4
Speed Controllable:
No
Overall Height:
36 1/2 in
CFM @ 0.625-In. SP:
3345
Base Square Size - Roof Ventilators:
30 x 30""
Drive Type:
Belt Drive
Overall Dia.:
35 3/8 in
Hz:
60
Recommended Damper Size (In.):
23 x 23
Dimension D:
21 in
Max. BHP:
0.78
Bearing Type:
Regreasable Pillow Block
Max. Inlet Temp.:
300 Degrees F
CFM @ 0.375-In. SP:
3666
CFM @ 0.500-In. SP:
3554
Drive Package Included:
Yes
Motor Voltage:
115/208/230
CFM @ 0.125-In. SP:
3919
RPM:
1075
Sones @ 0.125-In. SP @ 5 Ft.:
16.2
Dimension A:
30 in
Sones @ 0.500-In. SP @ 5 Ft.:
15.5
Housing Material:
Aluminum
Wheel Dia.:
18 1/2 in
Adj. 6 3/8H Roof Curb Stock No.:
4c454"
Recommended 8 In. Fixed Curb Item No.:
4HX41
Phase:
1
Base Length:
30 in
Recommended Damper Stock No.:
4HX67
Dimension C:
34 3/4 in
Standards:
AMCA Sound and Air
Assembled/Unassembled:
Unassembled
Dimension B:
35 3/8 in
Sones @ 0.250-In. SP @ 5 Ft.:
15.8
Requires:
Roof curb for new installations
Wheel Type:
Backward Inclined
Airflow @ 0.000 in SP:
4,061 cfm
Nameplate Voltage:
115/208-230V AC
Motor Speed:
1,075 RPM
Electrical Connection:
Power Cord
For High-Static Pressure Applications:
No
Exhaust Airflow @ 0.375 in SP:
3,666 cfm
Spark Resistant Construction Type:
A
Application:
Industrial and Commercial Buildings
Exhaust Airflow @ 0.125 in SP:
3,919 cfm
Exhaust Airflow @ 0.500 in SP:
3,554 cfm
Propeller Shaft Diameter:
3/4 in
Maximum Static Pressure:
1 in wc
Wheel Diameter:
18 1/2 in
Features:
Air Handling Quality Bearings Meet Minimum of L10-100,000 Hours, Nonoverloading Centrifugal Wheel Design
Hazardous Location Specification:
Class I Group C, Class I Group D, Class II Group E, Class II Group F, Class II Group G
Exhaust Airflow @ 0.000 in SP:
4,061 cfm
Maximum Fan Speed:
1,075 RPM
Base Shape:
Square
Motor Horsepower:
3/4 hp
Housing Length:
35.4 in
Base Diameter:
Not Applicable
Safety Features:
Explosion Resistant Motor
Motor Location:
Out of Airstream
Motor Enclosure:
Totally Enclosed Fan Cooled
High-Efficiency Motor:
No
Exhaust Airflow @ 0.250 in SP:
3,786 cfm
Frequency:
60 Hz
Housing Width:
35.4 in
Includes Drive Package:
Yes
For Air Type:
Flammable Vapor
Resistance Properties:
Spark Resistant
Current:
11.0/5.4 to 5.5 A
Includes Motor:
Yes
Brake Horsepower:
39/50 hp
Damper Size:
23 x 23 in
Housing Material Fabrication:
Spun
Assembly:
Unassembled
Mount Type:
Roof Curb
Overall Diameter:
35 3/8 in
Maximum Inlet Air Temperature:
300 Degrees F
Sound Level:
15.5 sones @ 0.500 in SP and 5 ft, 15.8 sones @ 0.250 in SP and 5 ft, 16.2 sones @ 0.125 in SP and 5 ft
Package Quantity:
1
