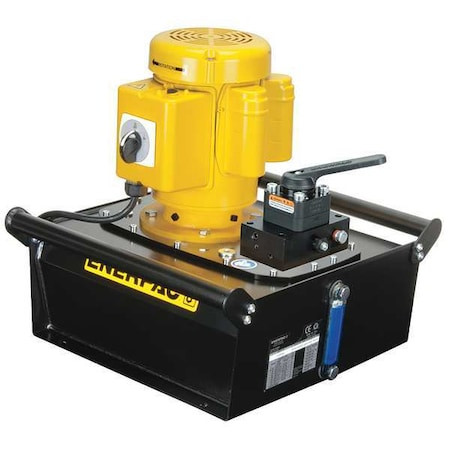

Hydraulic Pump, Electric, 1 hp, Induction Motor, 10,000 psi Max Pressure - ZE3404MB

Hydraulic Pump, Electric, 1 hp, Induction Motor, 10,000 psi Max Pressure - ZE3404MB

Enerpac
SKU:
ZE3404MB
|
UPC:
662005132034
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Hydraulic Pump, Horsepower - Maximum 1 hp, Nameplate Voltage 115V AC, Phase Single, Operating Pressure - Maximum 10,000 psi, Displacement @ 5000 psi 42 cu in/min, Displacement @ 10,000 PSI 40 cu in/min, Control Valve Type 3-Position, 4-Way, Reservoir Capacity 1 gal, Reservoir Material Steel, Overall Height 20.2 in, Cylinder Compatibility Double Acting, Charger Input Voltage 115V AC, Control Valve Pressure Relief - Maximum 10,000 psi, Control Valve Pressure Relief - Minimum 1,000 psi
Additional Information
Country of Origin:
United States
Promotion Restriction:
Not eligible for promotion
Item:
Hydraulic Pump
Type:
Electric
Reservoir Capacity (Cu.-In.):
231 cu in
Reservoir Capacity (Gal.):
1 gal
Oil Displacement @ 100 PSI:
450 cu in/min
Oil Displacement @ 700 PSI:
385 cu in/min
Oil Displacement @ 1000 PSI:
400 cu in/min
Oil Displacement @ 10,000 PSI:
40 cu in/min
Oil Displacement @ 0-200 PSI:
445 cu in/min
HP:
1 hp
Maximum Pressure:
10,000 psi
Motor Type:
Induction
Voltage:
115
Reservoir Material:
Steel
dBA:
75
Relief Valve Range:
1000 to 10,000 psi
Control Valve:
Manaul 4 Way/3 Position Tandem Center
Application:
Production and Lifting
Amps AC:
8.8 A
Oil Displacement @ 200-10,000 PSI:
40 to 445 cu in/min
Fluid Port NPT (In.):
3/8
Charger Input Voltage:
115V AC
Phase:
Single
Nameplate Voltage:
115V AC
Current:
10 A
Displacement @ 700 psi:
385 cu in/min
Sound Level - Maximum:
75 dBA
Displacement @ 1000 psi:
300 cu in/min
Displacement @ 10,000 PSI:
40 cu in/min
Control Valve Pressure Relief - Minimum:
1,000 psi
Control Valve Pressure Relief - Maximum:
10,000 psi
Displacement @ 200 psi:
445 cu in/min
Horsepower - Maximum:
1 hp
Overall Length:
25.8 in
Overall Width:
12.5 in
Flow Rate - Maximum:
40 cu in/min
Cylinder Compatibility:
Double Acting
Media Intake Connection Type:
NPTF
Overall Height:
20.2 in
Displacement @ 100 psi:
450 cu in/min
Displacement @ 5000 psi:
42 cu in/min
Reservoir Capacity:
1 gal
Operating Pressure - Maximum:
10,000 psi
Control Valve Type:
3-Position, 4-Way
Frequency:
50 Hz, 60 Hz
Package Quantity:
1
