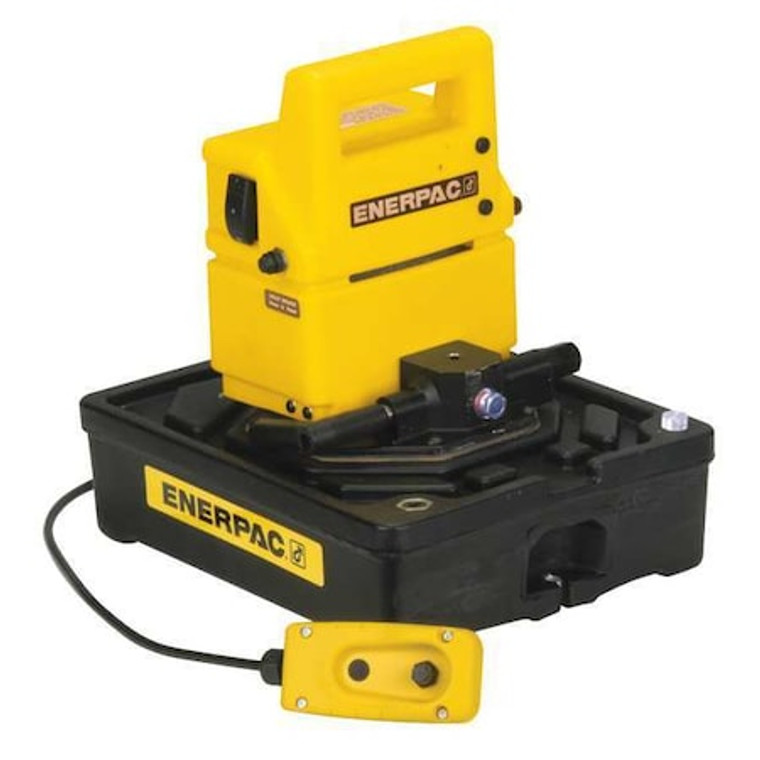

Hydraulic Pump, Electric, 0.5 hp, Universal Motor, 10,000 psi Max Pressure - PUD1301B

Hydraulic Pump, Electric, 0.5 hp, Universal Motor, 10,000 psi Max Pressure - PUD1301B

Enerpac
SKU:
PUD1301B
|
UPC:
662005125319
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Hydraulic Pump, Horsepower - Maximum 1/2 hp, Nameplate Voltage 115V AC, Duty Cycle Intermittent, Operating Pressure - Maximum 10,000 psi, Displacement @ 5000 psi 25 cu in/min, Displacement @ 10,000 PSI 20 cu in/min, Control Valve Type 2-Position, 3-Way, Reservoir Capacity 1 gal, Reservoir Material Polyethylene, Overall Height 14.7 in, Cylinder Compatibility Single Acting, Charger Input Voltage 115V AC, Control Pendant Size 10 ft, Control Pendant Voltage Manual
Additional Information
Country of Origin:
United States
Promotion Restriction:
Not eligible for promotion
Item:
Hydraulic Pump
Type:
Electric
Reservoir Capacity (Cu.-In.):
231 cu in
Reservoir Capacity (Gal.):
1 gal
Oil Displacement @ 100 PSI:
200 cu in/min
Oil Displacement @ 700 PSI:
70 cu in/min
Oil Displacement @ 1000 PSI:
30 cu in/min
Oil Displacement @ 10,000 PSI:
20 cu in/min
Oil Displacement @ 0-200 PSI:
200 cu in/min
HP:
0.5 hp
Maximum Pressure:
10,000 psi
Motor Type:
Universal
Fluid Port NPT (In.):
3/8
Control Pendant Size (Ft.):
10 ft
dBA:
85
Relief Valve Range:
200 to 10,000 psi
Amps AC:
9.5 A
Application:
Remote Valve Operation
Control Pendant Voltage:
Manual
Oil Displacement @ 200-10,000 PSI:
20 to 200 cu in/min
Reservoir Material:
Polyethylene
Voltage:
115
Control Valve:
Dump and Hold
Charger Input Voltage:
115V AC
Nameplate Voltage:
115V AC
Flow Rate - Maximum:
20 cu in/min
Displacement @ 200 psi:
200 cu in/min
Operating Pressure - Maximum:
10,000 psi
Reservoir Capacity:
1 gal
Cylinder Compatibility:
Single Acting
Displacement @ 10,000 PSI:
20 cu in/min
Sound Level - Maximum:
85 dBA
Overall Length:
14.5 in
Control Pendant Size:
10 ft
Control Valve Type:
2-Position, 3-Way
Media Intake Connection Size:
1/4 in
Frequency:
50 Hz, 60 Hz
Duty Cycle:
Intermittent
Overall Height:
14.7 in
Overall Width:
12.2 in
Displacement @ 5000 psi:
25 cu in/min
Control Valve Function:
Advance, Hold, Retract
Displacement @ 100 psi:
200 cu in/min
Displacement @ 700 psi:
70 cu in/min
Horsepower - Maximum:
1/2 hp
Control Valve Pressure Relief - Minimum:
200 psi
Control Valve Pressure Relief - Maximum:
10,000 psi
Remote Control Cord Length:
10 ft
Displacement @ 1000 psi:
30 cu in/min
Current:
9.5 A
Media Intake Connection Type:
NPTF
Package Quantity:
1
