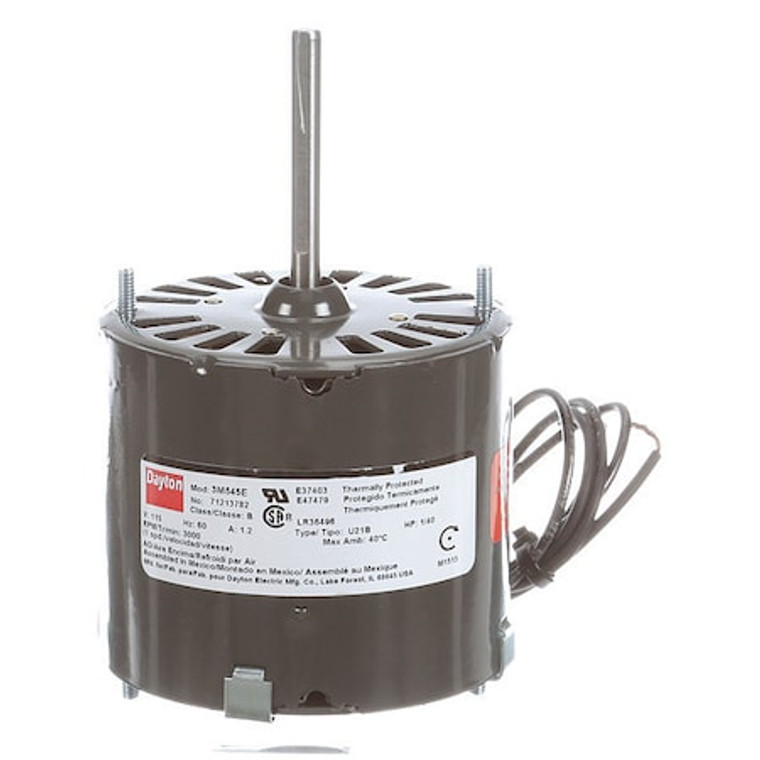

HVAC Motor, 1/40 HP, 3000 rpm, 115V, 3.3 - 71213782M

HVAC Motor, 1/40 HP, 3000 rpm, 115V, 3.3 - 71213782M

Dayton
SKU:
71213782M
|
UPC:
663001432081
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/40 HP, Nameplate RPM 3,000, No. of Speeds 1, Voltage 115V AC, Full Load Amps 0.9 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring/Stud, Motor Mounting Position All Angle, Number of Shafts 1
Additional Information
Country of Origin:
Mexico
Voltage:
115V AC
Nameplate RPM:
3,000
Motor Enclosure Design:
Open Air-Over
Number of Speeds:
1
HP:
1/40
RPM Range:
1,801-3,000
Stud/Base Mtg. Pattern:
2-7/8 in
Length Less Shaft:
3 5/16 in
Mounting Pattern:
2-7/8
Motor Shaft Rotation:
CWSE
Motor Design:
Shaded Pole
Shaft Dia.:
1/4 in
Motor Sub Application:
Direct Drive Fan/Blower
Motor Mounting Type:
Ring/Stud
Cord Length:
12 in
Phase:
Single
Voltage Compatibility:
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Bearings:
Sleeve
Shaft Length:
2 3/8 in
Standards:
CSA Certified, UL Recognized
Full Load Amps:
0.9 A
Hz:
60 Hz
Frame:
3.3
Item:
HVAC Motor
Body Dia.:
3 5/16 in
Application:
OEM and Replacement Use In A Wide Variety of Fan and Blower
Number of Shafts:
1
Ins. Class:
B
Motor Service Factor:
1
Motor Application:
HVAC/R
Duty:
Continuous
Motor Shaft Design:
Flat
No. of Speeds:
1
Motor Thermal Protection:
Auto
Max. Ambient Temp.:
40 Degrees C
Mounting Stud Location:
2/Both Ends
Capacitor Required:
No
Usable @ 208V:
No
Mounting Stud Pattern:
2 7/8 in
Motor Mounting Position:
All Angle
Duty Cycle:
Continuous
Usable @ 200V:
No
Mounting:
Stud
Type:
OEM Replacement
Package Quantity:
1
