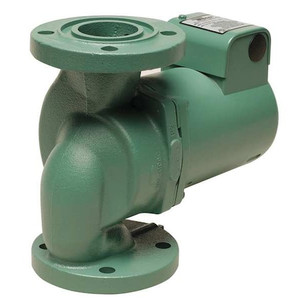

HVAC Circulating Pump, 1/6 hp, 115V/230V, 1 Phase, Flange Connection - 2400-30S-3P

HVAC Circulating Pump, 1/6 hp, 115V/230V, 1 Phase, Flange Connection - 2400-30S-3P

Taco
SKU:
2400-30S-3P
|
UPC:
687752084689
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Potable Water Circulating Pump, Compatible Intake Pipe Size 1 1/4 in, 1 1/2 in, Connection Type Flange, Face to Face Dimension 8 1/2 in, Flange or Union Included No, For Use With Potable Systems Yes, Horsepower 1/6, Maximum Feet of Head 27 ft, Maximum Flow Rate @ 10 Feet of Head 38 gpm, Maximum Flow Rate @ 15 Feet of Head 30 gpm, Nameplate Voltage 115/230V AC, Number of Speeds 1, Phase Single, Pump Type Standard, Series Family 2400, Maximum Flow Rate @ 20 Feet of Head 22 gpm
Additional Information
Country of Origin:
United States
Item:
Potable Water Circulating Pump
Voltage:
115/240V AC
Phase:
Single
Horsepower:
1/6
Inlet/Outlet Size:
1-1/2 in
Series:
2400-30
Pump Type:
Standard
Number of Speeds:
1
Max. GPM @ Head:
38 gpm @ 10 ft
Maximum Feet of Head:
27 ft
Min. GPM @ Head:
10 gpm @ 25 ft
Connection Type:
Flange
Pump Mount:
In Line
Shut-Off:
29 ft
Amps:
1.0/1.9 A
Impeller Material:
Plastic
Standards:
NSF, UL-CUS
Loop Configuration:
Open
Shaft Material:
Stainless Steel
Drive Type:
Direct
Features:
Compact, High Performance, Mechanical Seal, Permanently Lubricated Ball Bearings
Face to Face Dimension:
8 1/2 in
Compliance:
Low Lead,NSF-372
Best Efficiency GPM @ Head:
30 gpm @ 17 ft
Thermal Protection:
yes
Includes:
Flange Gaskets
Mechanical Seal:
Carbon/Silicon Carbide
Overall Width:
4.75 in
Overall Length:
8 in
Manufacturer Warranty Length:
3 yr
Maximum Flow Rate @ 20 Feet of Head:
22 gpm
Flange or Union Included:
No
Compatible Media Type:
Water
Minimum Media Temperature:
40 Degrees F
Nameplate Voltage:
115/230V AC
Frequency:
60 Hz
For Use With Potable Systems:
Yes
Series Family:
2400
Maximum Flow Rate @ 15 Feet of Head:
30 gpm
Pump Housing Material:
Stainless Steel
Maximum Operating Pressure:
150 psi
Maximum Flow Rate @ 25 Feet of Head:
10 gpm
Compatible Discharge Pipe Size:
1 1/4 in, 1 1/2 in
Maximum RPM:
3,450 RPM
Compatible Intake Pipe Size:
1 1/4 in, 1 1/2 in
Maximum Flow Rate @ 1 Feet of Head:
30 gpm
Body Gasket Material:
EPDM
Maximum Media Temperature:
225 Degrees F
Rotor Type:
Dry
Maximum Flow Rate @ 10 Feet of Head:
38 gpm
Package Quantity:
1
