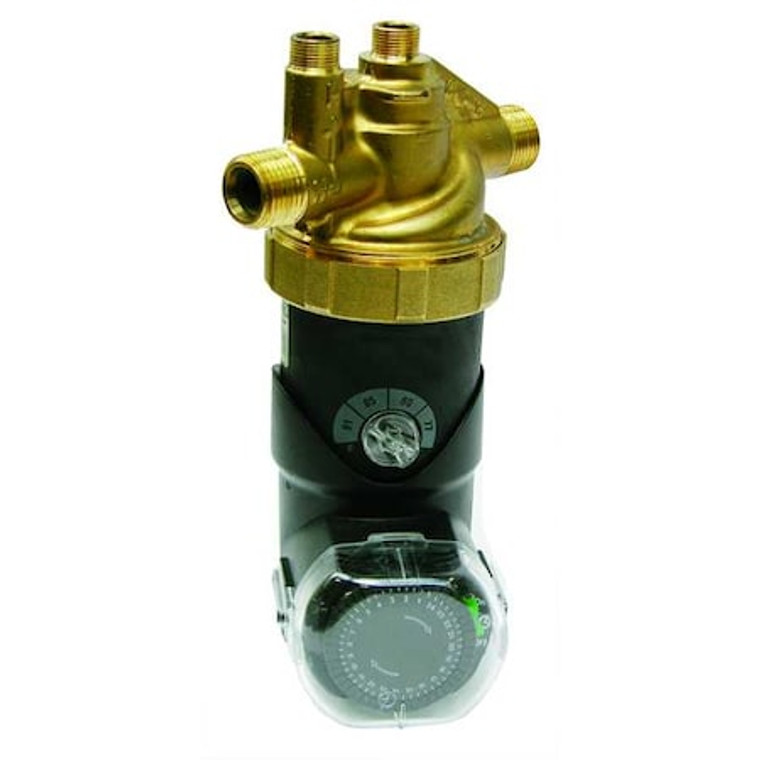

HVAC Circulating Pump, 1/150 hp, 115, 1 Phase, NPT Connection - E1-BCAFNCTW-01

HVAC Circulating Pump, 1/150 hp, 115, 1 Phase, NPT Connection - E1-BCAFNCTW-01

Goulds
SKU:
E1-BCAFNCTW-01
|
UPC:
733886746419
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Potable Water Circulating Pump, Compatible Intake Pipe Size 1/2 in, Connection Type FNPT, Face to Face Dimension 4 13/32 in, Flange or Union Included Not Applicable, For Use With Potable Systems Yes, Horsepower 1/150, Maximum Feet of Head 5 ft, Maximum Flow Rate @ 1 Foot of Head 0 gpm, Nameplate Voltage 115V AC, Number of Speeds 1, Phase Single, Pump Type Under-Sink, Series Family Act E1, Maximum Flow Rate @ 5 Feet of Head 0 gpm, Series E1, Amps 0.14 A, Compatible Discharge Pipe Size 1/2 in
Additional Information
Country of Origin:
Hungary
Item:
Potable Water Circulating Pump
Voltage:
115V AC
Phase:
Single
Horsepower:
1/150
Inlet/Outlet Size:
1/2 in
Series:
E1
Pump Type:
Under-Sink
Number of Speeds:
1
Maximum Feet of Head:
5 ft
Connection Type:
FNPT
Impeller Material:
Nylon; PPO
Pump Mount:
Plastic Snap Ring
Loop Configuration:
Open
Amps:
0.14 A
Thermal Protection:
Automatic Fixed
Features:
Noise Level 30dB
Drive Type:
AC Magnetically Driven Spherical Motor
Face to Face Dimension:
4 13/32 in
Includes:
6 ft Power Cord, Auto Thermal Protection
Pump Housing Material:
Brass
Overall Width:
4.5 in
Overall Height:
8 in
Series Family:
Act E1
Maximum Flow Rate @ 50 Feet of Head:
[DELETE]
Overall Length:
8 in
Maximum Operating Pressure:
145 psi
Maximum RPM:
3,450 RPM
Maximum Flow Rate @ 10 Feet of Head:
0 gpm
Compatible Discharge Pipe Size:
1/2 in
Nameplate Voltage:
115V AC
Compatible Media Type:
Water
Maximum Media Temperature:
203 Degrees F
Compatible Intake Pipe Size:
1/2 in
For Use With Potable Systems:
Yes
Manufacturer Warranty Length:
2 yr
Maximum Flow Rate @ 5 Feet of Head:
0 gpm
Maximum Flow Rate @ 1 Feet of Head:
0 gpm
Flange or Union Included:
Not Applicable
Package Quantity:
1
