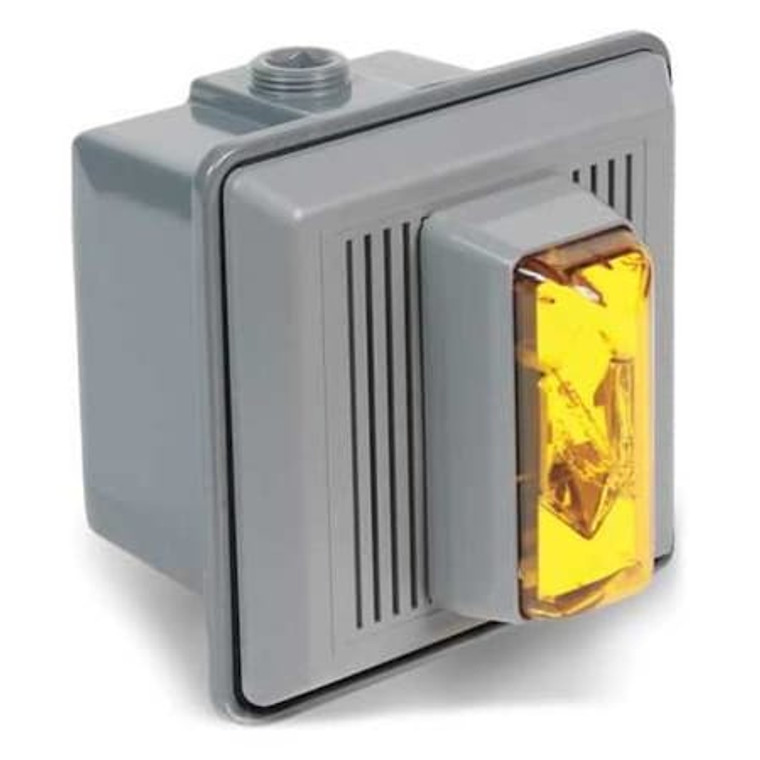

Horn Strobe, Amber, 5-1/2 In. H, 120VAC - 868STRA-N5

Horn Strobe, Amber, 5-1/2 In. H, 120VAC - 868STRA-N5

Edwards Signaling
SKU:
868STRA-N5
|
UPC:
782640239322
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Strobe with Horn, Engineered Thermoplastic Housing, Length 5-1/2 In., Height 5-1/2 In., Depth 5/8 In., Decibels 90dBA @ 10 ft.., 120VAC, 148 mA Amps, Surface Mounting, Engineered Thermoplastic Housing Material, Operating Temp. 32 to 120 Degrees F, Gray Housing, Amber Lens Color, UL Standards
Additional Information
Country of Origin:
Multiple
Item:
Horn Strobe
Housing Material:
Thermoplastic
Mounting:
Surface
Amps:
148 mA
Color:
Amber Lens, Gray Housing
Audible Alarm Type:
Horn
Voltage:
120V AC
Standards:
UL Listed
Indoor/Outdoor:
Indoor
Decibels:
90 dB
Sound Pattern:
Continuous
Height:
5.5 in
Operating Temp.:
32 Degrees to 120 Degrees F
Housing Color:
Gray
Light Output:
90 CP
Current Drawn:
148 mA
Lens Color:
Amber
Flashes per Minute:
60
Vibrating:
No
Visual Indicator Type:
Strobe
Depth:
0.625 in
Width:
5.5 in
Overall Width:
5 1/2 in
Power Source:
Wire
Overall Depth:
5/8 in
Product Type:
Horn and Strobe
Overall Length:
5 1/2 in
Light Source:
Xenon
Includes Batteries:
Not Applicable
Operating Current:
0.148 A
Light Operating Mode:
Strobe
Number of Batteries:
Not Applicable
Connection Type:
Wire Leads
Mounting Style:
Surface Mount
For Hazardous Location:
Not Applicable
Sound Continuity:
Continuous
Operating Temperature - Minimum:
-31 Degrees F
Operating Temperature - Maximum:
150 Degrees F
Sound Style:
Horn
Battery Size:
Not Applicable
Control Protocol:
Direct Wire
Alarm Volume @ 1 m - Maximum:
100 dB
Alarm Volume @ 10 ft - Maximum:
90 dB
Vibration:
No Vibration
Brightness Selection:
Fixed Brightness
Light Intensity:
90 CP
Overall Diameter:
Not Applicable
For Location:
Indoor
Number of Sound Patterns:
1
Package Quantity:
1
