High Torque Farm Duty Motor, Capacitor-Start/Run, 2 HP, 115/230V AC, 1,725 Nameplate RPM, 56HZ Frame - 4K090
Manufacturer: Dayton
MFR # 4K090
Log in for pricing
High Torque Farm Duty Motor, Capacitor-Start, 1/2 HP, 115/230V AC, 1,725 Nameplate RPM, 56 Frame - 6K714
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

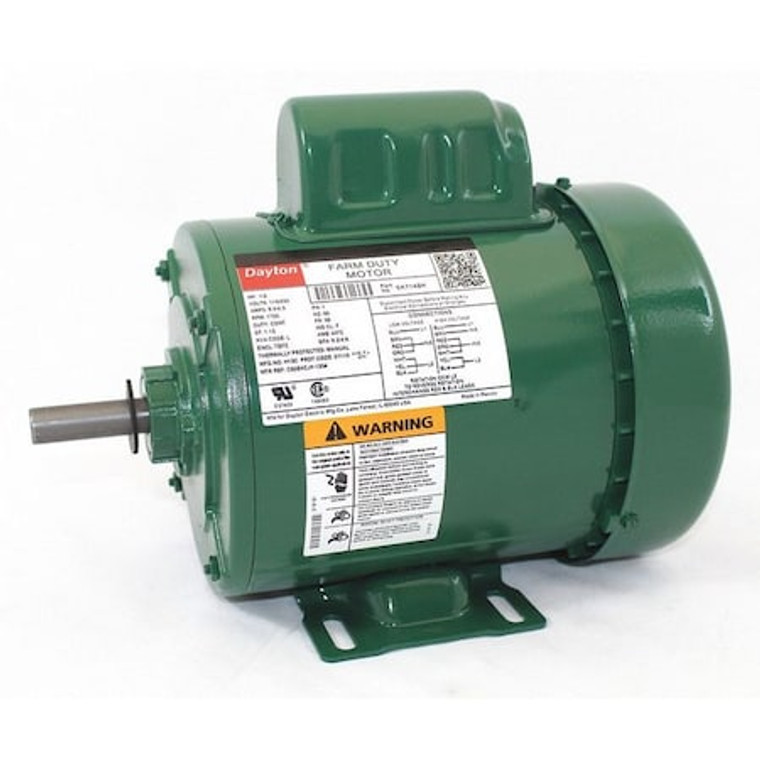

High Torque Farm Duty Motor, Capacitor-Start, 1/2 HP, 115/230V AC, 1,725 Nameplate RPM, 56 Frame - 6K714
High Torque Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 9.0/4.5 A, 56Z Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel
- Country of Origin:
- Mexico
- Item:
- High Torque Farm Duty Motor
- Motor Design:
- Capacitor-Start
- Phase:
- Single
- HP:
- 1/2
- RPM Range:
- 1,701-1,800
- Voltage:
- 115/230V AC
- Frame:
- 56Z
- Motor Service Factor:
- 1.15
- Motor Thermal Protection:
- Manual
- Motor Enclosure Design:
- Totally Enclosed Fan-Cooled
- Nameplate RPM:
- 1,725
- Motor Application:
- Farm Duty
- Motor Frame Material:
- Rolled Steel
- Motor Mounting Position:
- All Angle
- Motor Mounting Type:
- Rigid Base
- Motor Shaft Design:
- Keyed
- Motor Sub Application:
- High Torque
- Motor Shaft Rotation:
- CW/CCW
- Standards:
- CSA Certified (258501), UL Recognized (E37403)
- Duty:
- Continuous
- Shaft Dia.:
- 517/1000 in
- Ins. Class:
- F
- Length Less Shaft:
- 9 7/8 in
- Frame Material:
- Rolled steel
- Nominal Efficiency:
- 63.4 %
- Max. Ambient Temperature:
- 40 Degrees C
- Item - Farm Duty Motors:
- High Torque Farm Duty Motor
- Motor Bearings:
- Ball
- Capacitor Required:
- Included
- Full Load Amps:
- 9.0/4.5 A
- Shaft Length:
- 2 1/4 in
- Voltage Compatibility:
- 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
- Finish:
- Green
- Hz:
- 60 Hz
- Includes:
- Shaft Key, Gasketed Conduit Box and Shaft Slinger
- Overall Length:
- 11 3/4 in
- Duty Cycle:
- Continuous
- No. of Speeds:
- 1
- Max. Ambient Temp.:
- 40 Degrees C
- Package Quantity:
- 1
-
-
