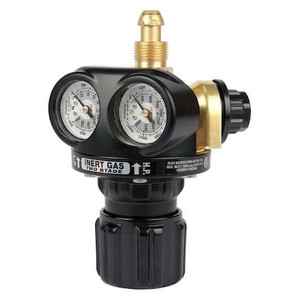

High Purity Gas Regulator Two Stage, CGA 580, Use With: Argon, Helium, Inert, Nitrogen - 223-4109

High Purity Gas Regulator Two Stage, CGA 580, Use With: Argon, Helium, Inert, Nitrogen - 223-4109

Smith Equipment
SKU:
223-4109
|
UPC:
14495272170
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
High Purity Gas Regulator, Mounting Type Cylinder, Number of Stages Two Stage, Compatible Gas Type Argon, Helium, Nitrogen, Control Type Knob, Maximum Inlet Pressure 3,500 psig, Inlet Connection Size 0.965 In.-14, Inlet Connection Gender Male, Inlet Connection Type NGO, Inlet Thread Direction Right Hand, Outlet Pressure (Maximum) 150 psig, Outlet Connection Size 1/8 in, Outlet Connection Type Tube Fitting, Gas Purity Rating 99.99 Percent, Helium Leak Integrity Rating 1.00 x 10^-5 cc/sec
Additional Information
Country of Origin:
United States
Stages:
Two Stage
Overall Length:
4-3/4";Supply Pressure Gauge=4,000 psi"
Gauges Delivery Pressure:
0 to 200 psi
Diaphragm Material:
Stainless Steel
Application:
Analytical, Gas Chromatography
Delivery:
0 to 150 psi
Includes:
Bonnet, Gauges, Plated Body, Sure Seat(TM) Filtered Seat
Item:
High Purity Gas Regulator
Body Material:
Nickel Plated Brass
Delivery Pressure Range:
0 to 150 psi
Regulator Capacity:
Heavy Duty
Regulator Supply Type:
Cylinder
Features:
Built In Safety Relief Valve
Type:
Two Stage, High Purity, Analytical, High Pressure
Helium Leak Integrity Rating:
1.00 x 10^-5 cc/sec
Filter Material:
316 Stainless Steel
Gauge Diameter:
2 1/2 in
Outlet Connection Type:
Tube Fitting
Seat Material:
PFA
Regulator Series:
220
Compatible Gas Type:
Argon, Helium, Nitrogen
CGA Number:
CGA 580
Bonnet Material:
Nickel Plated Brass
Outlet Pressure (Minimum):
0 psig
Body Finish:
Nickel Plated
Outlet Pressure (Maximum):
150 psig
Number of Stages:
Two Stage
Flow Coefficient:
0.17
Gas Purity Rating:
99.99 %
Operating Temperature (Maximum):
165 Degrees F
Control Type:
Knob
Inlet Connection Gender:
Male
Body Diameter:
2 in
Inlet Pressure (Maximum):
3,500 psig
Inlet Connection Size:
0.965-14"
Operating Temperature (Minimum):
-40 Degrees F
Inlet Thread Direction:
Right Hand
Seal Material:
FKM
Outlet Connection Size:
1/8 in
Inlet Connection Type:
NGO
Dedupe with CGA Number and Inlet Connection Size:
CGA 580
Package Quantity:
1
