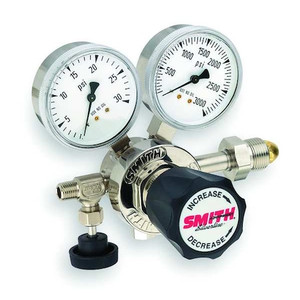

High Purity Gas Regulator Single Stage, CGA 580, Use With: Argon, Helium, Nitrogen - 210-0309

High Purity Gas Regulator Single Stage, CGA 580, Use With: Argon, Helium, Nitrogen - 210-0309

Smith Equipment
SKU:
210-0309
|
UPC:
14495279728
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
High Purity Gas Regulator, Mounting Type Cylinder, Number of Stages Single Stage, Compatible Gas Type Argon, Helium, Nitrogen, Control Type Knob, Maximum Inlet Pressure 3,500 psig, Inlet Connection Size 0.965 In.-14, Inlet Connection Gender Male, Inlet Connection Type NGO, Inlet Thread Direction Right Hand, Outlet Pressure (Maximum) 15 psig, Outlet Connection Size 1/4 in, Outlet Connection Type Tube Fitting, Gas Purity Rating 99.99 Percent, Helium Leak Integrity Rating 1.00 x 10^-5 cc/sec
Additional Information
Country of Origin:
United States
Stages:
Single Stage
Regulator Application:
General Purpose
Regulator Capacity:
Medium Duty
Regulator Supply Type:
Cylinder
Body Material:
Nickel Plated Brass
Gauges Delivery Pressure:
15 psi
Item:
High Purity Gas Regulator
Delivery Pressure Range:
0 to 15 psi
Application:
Automotive Emissions Testing, Biological Laboratories, Chemical Process Plants, Instrument Analysis
Diaphragm Material:
Stainless Steel
Overall Length:
4-3/4";Supply Pressure Gauge=4,000 psi"
Delivery:
15 psi
Features:
Built In Safety Relief Valve, Stainless Steel Diaphragm
Flow Coefficient:
0.09
Inlet Connection Size:
0.965-14"
Inlet Pressure (Maximum):
3,500 psig
Seat Material:
PFA
Outlet Connection Type:
Tube Fitting
Gauge Diameter:
2 1/2 in
Regulator Series:
210
Compatible Gas Type:
Argon, Helium, Nitrogen
Control Type:
Knob
Operating Temperature (Maximum):
165 Degrees F
Outlet Pressure (Maximum):
15 psig
Seal Material:
FKM
Outlet Pressure (Minimum):
0 psig
Gas Purity Rating:
99.99 %
Inlet Thread Direction:
Right Hand
Operating Temperature (Minimum):
-40 Degrees F
Bonnet Material:
Nickel Plated Brass
Number of Stages:
Single Stage
Body Diameter:
2 in
Filter Material:
316 Stainless Steel
Helium Leak Integrity Rating:
1.00 x 10^-5 cc/sec
Inlet Connection Gender:
Male
Body Finish:
Nickel Plated
Outlet Connection Size:
1/4 in
Inlet Connection Type:
NGO
CGA Number:
CGA 580
Dedupe with CGA Number and Inlet Connection Size:
CGA 580
Package Quantity:
1
