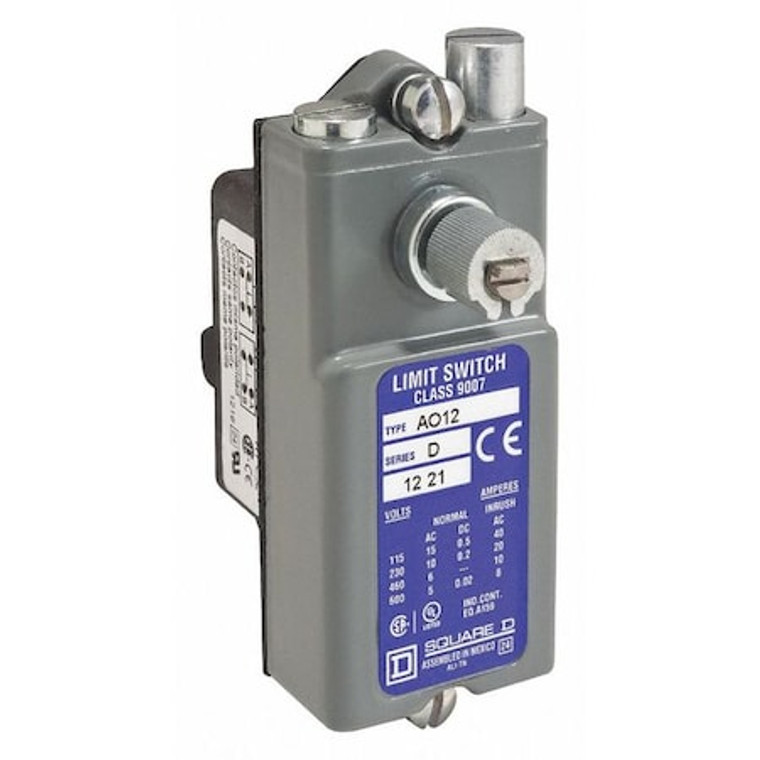

Heavy Duty Limit Switch, No Lever, Rotary, 1NC/1NO, 15A @ 600V AC - 9007AO12

Heavy Duty Limit Switch, No Lever, Rotary, 1NC/1NO, 15A @ 600V AC - 9007AO12

Telemecanique Sensors
SKU:
9007AO12
|
UPC:
785901807520
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Compact Limit Switch Body, Actuator Style - Limit Switch Rotary, No Lever, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 15A @ 600V, DC Contact Rating - Limit Switch 15A @ 600V, Contact Form- Switches 1NC/1NO, Body Height - Limit Switch 3.47 in, Body Width - Limit Switch 2.28 in, Body Depth - Limit Switch 1.38 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, Electrical Connection Screw Clamp Terminals, IP Rating IP20
Additional Information
Country of Origin:
Mexico
Item:
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch:
Rotary
Actuator Style - Limit Switch:
No Lever, Rotary
Contact Form- Switches:
1NC/1NO
AC Contact Rating - Limit Switch:
15A @ 600V
Mounting - Limit Switch:
open type
Actuator Location:
Side
NEMA Rating:
1, 2, 4, 12, 13
Operating Temp. Range:
-65 Degrees to 185 Degrees F
Depth:
1.40";Height=3.91""
Standards:
CE, CSA, UL
Actuator Style:
Rotary Head, No Lever
AC Contact Rating:
15A @ 600V
Wiring Entry:
Open Style
Travel:
Total Travel 90 Degrees
Electrical Connection:
Screw Terminals
Width:
2.40";For Use With=Type 9007 C Compact Limit Switches"
Operating Temp.:
-20 Degrees to 185 Degrees F
DC Contact Rating:
15A @ 600V
Operating Force:
2.75 in.-lb.
Series:
9007AW
IP Rating:
65
Contact Form:
1NC/1NO
Movement:
CW, CCW
Amps:
15
Voltage Rating:
600VAC/DC
Body Depth - Limit Switch:
1.38 in
Contact Material:
silver contacts
Body Material:
Zinc
Special Features:
lateral approach, 1 direction programmable
Body Height - Limit Switch:
3.47in
Body Style (Limit Switch):
fixed
Actuation Type:
from left convertible to right || CCW convertible to CW
Head Type:
rotary head
Min. Actuation Velocity Horizontal:
130 ft/min with 30° cam angle, levers only || 90 ft/min with 45° cam angle, levers only
Weight:
0.1 lb(US)
Contact Action:
snap action
Number of Mounting Holes:
2
Operating Temperature - Minimum:
0 Degrees F
Lamp Type:
No Lamp Module Included
NEMA Enclosure Rating:
1
Manufacturer Warranty Length:
18 mo
Overall Depth:
1.38 in
Body Configuration:
Non Plug-In
Mounting Hole Horizontal Center to Center Distance:
27 mm
Overall Height:
3.47 in
Operating Temperature - Maximum:
185 Degrees F
Mounting Hole Diameter:
0.2 in
Mounting Hole Vertical Center to Center Distance:
89 mm
Overall Width:
2.28 in
Number Of Poles:
1
Type Of Operator:
spring return without operating lever cast zinc
Package Quantity:
1
