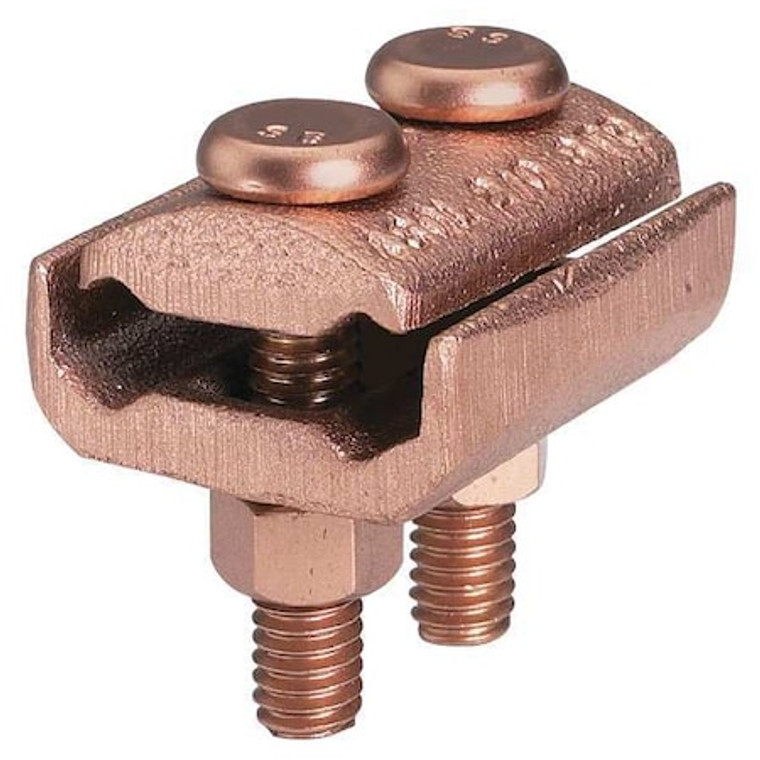

Ground Connector, 4AWG, 2In - GL2626
Grounding Connector, Grounding Wire Size 4 to 2/0 AWG SOL, 4 to 2/0 AWG STR, Material Copper, Number of Wires - Grounding 2, Description/Special Features Direct Burial, For Maximum Ground Conductor Wire Size 2/0 AWG STR, For Minimum Ground Conductor Wire Size 4 AWG SOL, For Use With Copper Conductors, Flat Bar, Grounding Wires Connected To 1/4 in Bar, Standards UL Listed Direct Burial, UL467, Type - Grounding Connector Mechanical, Accessory Type Grounding Connector, Overall Height 2 in
- Country of Origin:
- United States
- Item:
- Grounding Connector
- Material:
- Copper
- Wire Size - Grounding:
- 4 to 2/0 AWG
- Type:
- COMMERCIAL
- Standards:
- UL Listed Direct Burial, UL467
- Item - Grounding Connector:
- Grounding Connector
- Material - Grounding Connector:
- Copper Alloy
- Material of Construction:
- Copper Alloy
- Conductor Size:
- 2/0 AWG to 4 AWG
- Number of Wires - Grounding:
- 2
- Grounding Wires Connected To:
- 1/4 in Bar
- Type - Grounding Connector:
- Mechanical
- Grounding Wire Size:
- 4 to 2/0 AWG SOL, 4 to 2/0 AWG STR
- For Use With:
- Copper Conductors, Flat Bar
- Description/Special Features:
- Direct Burial
- Overall Width:
- 1 3/4 in
- Overall Height:
- 2 in
- Accessory Type:
- Grounding Connector
- For Maximum Ground Conductor Wire Size:
- 2/0 AWG STR
- Torque:
- 240 in-lb
- Overall Length:
- 1 7/8 in
- For Minimum Ground Conductor Wire Size:
- 4 AWG SOL
- Package Quantity:
- 1
- Dimension - Width mm:
- 44 mm
- Dimension - B Length inch:
- 1.69 in
- Physical Attribute - Screw Type:
- Hexagonal Bolt
- Plating Type:
- Unplated
- Dimension - F Width Center to Center inch:
- 1.00 in
- Dimension - Length Side B inch:
- 1.88 in
- Dimension - Height fraction:
- 2 in
- Certification - CSA Approved:
- No
- Dimension - Width inch:
- 1.75 in
- Material Type - Screw:
- DURIUMâ„¢ Silicon Bronze
- Dimension - D inch:
- 1.94 in
- Installation Torque Recommended in-lb:
- 240 LBS/in
- Application:
- For Joining A Wide Range Of Two Parallel Copper Cables To 1/4 IN Thick Bar, Direct Burial In Concrete Or Ground
- Conductor - Copper Str Size:
- 4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
- Standards - Industry Standards Met:
- UL467
- UL Listed:
- Yes
- Certification - UL Listed Direct Burial:
- Yes
- Industry Standard(s):
- UL467
- Conductor - Copper Str Size Range:
- 4 AWG-2/0 AWG
- Dimension - Width fraction:
- 1-3/4 in
- Dimension - Height inch:
- 2.00 in
- Plated:
- N
- Conductor - Copper Solid Size Range:
- 4 AWG-2/0 AWG
- Conductor - Copper Solid Size:
- 4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG
- Dimension - Pad Width inch:
- 0.94 in
