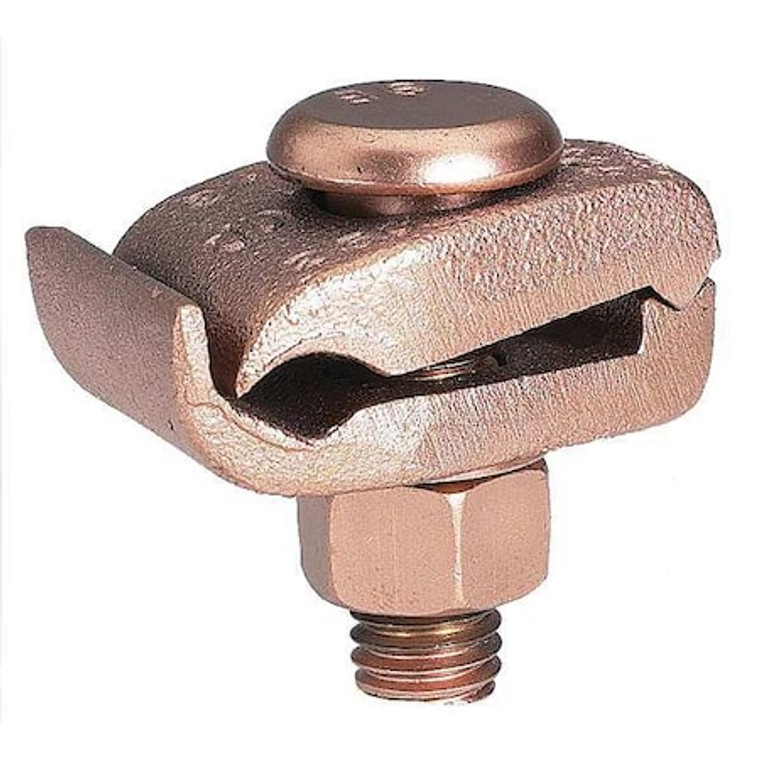

Ground Connector, 4AWG, 2.32In - GBL30
Grounding Connector, Grounding Wire Size 4 AWG to 300 kcmil SOL, 4 AWG to 300 kcmil STR, Material Copper, Number of Wires - Grounding 1, Description/Special Features Direct Burial, One Cable, For Maximum Ground Conductor Wire Size 300 kcmil, For Minimum Ground Conductor Wire Size 4 AWG SOL, For Use With Copper Conductors, Flat Bar, Grounding Wires Connected To 1/4 in Bar, Standards UL Listed Direct Burial, UL467, Type - Grounding Connector Mechanical, Accessory Type Grounding Connector
- Country of Origin:
- United States
- Item:
- Grounding Connector
- Material:
- Copper
- Material - Grounding Connector:
- Copper Alloy
- Conductor Size:
- 300 kcmil to 4 AWG
- Grounding Wires Connected To:
- 1/4 in Bar
- Item - Grounding Connector:
- Grounding Connector
- Material of Construction:
- Copper Alloy
- Type:
- COMMERCIAL
- Type - Grounding Connector:
- Mechanical
- Wire Size - Grounding:
- 4 AWG to 300 kcmil
- Number of Wires - Grounding:
- 1
- Standards:
- UL Listed Direct Burial, UL467
- Grounding Wire Size:
- 4 AWG to 300 kcmil SOL, 4 AWG to 300 kcmil STR
- Package Quantity:
- 1
- Accessory Type:
- Grounding Connector
- Overall Width:
- 1/2 in
- For Minimum Ground Conductor Wire Size:
- 4 AWG SOL
- Description/Special Features:
- Direct Burial, One Cable
- For Maximum Ground Conductor Wire Size:
- 300 kcmil
- For Use With:
- Copper Conductors, Flat Bar
- Overall Height:
- 2 5/16 in
- Overall Length:
- 1 7/8 in
- Torque:
- 480 in-lb
- Dimension - Length Overall inch:
- 1.88 in
- Certification - CSA Approved:
- No
- Certification - UL Listed Direct Burial:
- No
- Dimension - Bus Thickness inch:
- 0.32 in
- Conductor - Copper Str Size:
- 4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil
- Conductor - Copper Str Size Range:
- 4 AWG-300 kcmil
- Plating Type:
- Unplated
- Dimension - Stud Size inch:
- 33/64
- Dimension - Height inch:
- 2.32 in
- Dimension - L Length Overall mm:
- 48 mm
- Physical Attribute - Screw Type:
- Hexagonal Bolt
- Application:
- For Copper Cable To Bar, Direct Burial Cable
- Dimension - Hole Size inch:
- 0.56 in
- Dimension - Width mm:
- 38 mm
- Material - Hardware:
- DURIUMâ„¢ Silicon Bronze
- Installation Torque Recommended in-lb:
- 480 lb-in
- Conductor - Copper Solid Size Range:
- 4 AWG - 300 KCMIL
- Plated:
- N
- Dimension - Width inch:
- 1.50 in
- UL Listed:
- No
- Conductor - Copper Solid Size:
- 4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
