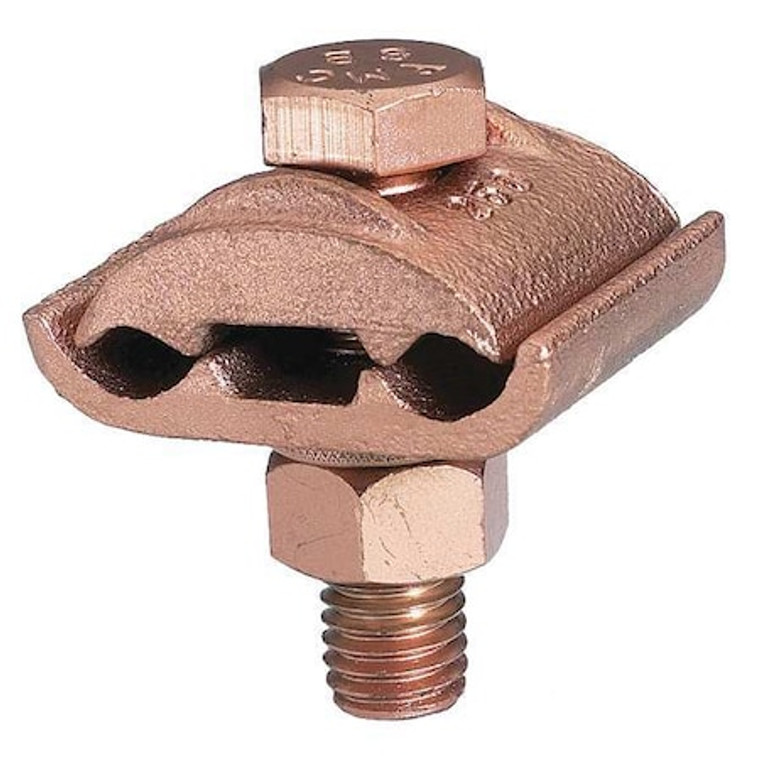

Ground Connector, 300 kcmil - GC3434
Grounding Connector, Grounding Wire Size 300 to 500 kcmil SOL, 300 to 500 kcmil STR, Material Copper, Number of Wires - Grounding 2, Description/Special Features Direct Burial, For Maximum Ground Conductor Wire Size 500 kcmil, For Minimum Ground Conductor Wire Size 300 kcmil, For Use With Copper Conductors, Flat Bar, Grounding Wires Connected To 1/4 in Bar, Standards UL Listed Direct Burial, UL467, Type - Grounding Connector Mechanical, Accessory Type Grounding Connector
- Country of Origin:
- United States
- Item:
- Grounding Connector
- Material:
- Copper
- Length:
- 1.62 in
- Width:
- 2.56 in
- Type:
- COMMERCIAL
- Number of Wires - Grounding:
- 2
- Material of Construction:
- Copper Alloy
- Grounding Wires Connected To:
- 1/4 in Bar
- Item - Grounding Connector:
- Grounding Connector
- Wire Size - Grounding:
- 300 to 500 kcmil
- Conductor Size:
- 500 kcmil to 300 kcmil
- Material - Grounding Connector:
- Copper Alloy
- Type - Grounding Connector:
- Mechanical
- Standards:
- UL Listed Direct Burial, UL467
- Grounding Wire Size:
- 300 to 500 kcmil SOL, 300 to 500 kcmil STR
- Overall Width:
- 2 9/16 in
- Accessory Type:
- Grounding Connector
- Overall Height:
- 2 13/16 in
- Torque:
- 480 in-lb
- Overall Length:
- 1 5/8 in
- For Maximum Ground Conductor Wire Size:
- 500 kcmil
- For Minimum Ground Conductor Wire Size:
- 300 kcmil
- Description/Special Features:
- Direct Burial
- Package Quantity:
- 1
- For Use With:
- Copper Conductors, Flat Bar
- Height:
- 2.82 in
- Application:
- For Joining A Wide Range Of Two Parallel Copper Cables, Direct Burial In Concrete Or Ground
- Dimension - Width inch:
- 2.56 in
- UL Listed:
- Yes
- Certification - UL Listed Direct Burial:
- Yes
- Certification - CSA Approved:
- No
- Conductor - Copper Solid Size Range:
- 300 KCMIL - 500 KCMIL
- Dimension - Length Overall inch:
- 1.62 in
- Standards - Industry Standards Met:
- UL467
- Industry Standard(s):
- UL467
- Conductor - Copper Str Size:
- 300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
- Physical Attribute - Screw Type:
- Hexagonal Bolt
- Dimension - Width mm:
- 65 mm
- Conductor - Copper Str Size Range:
- 300 kcmil-500 kcmil
- Dimensions:
- 1.62 in x 2.56 in x 2.82 in
- Plating Type:
- Unplated
- Dimension - L Length Overall mm:
- 41 mm
- Dimension - Height inch:
- 2.82 in
- Material Type - Screw:
- DURIUMâ„¢ Silicon Bronze
- Dimension - Width fraction:
- 2-5/9 in
- Plated:
- N
- Installation Torque Recommended in-lb:
- 480 lb-in
-
-
