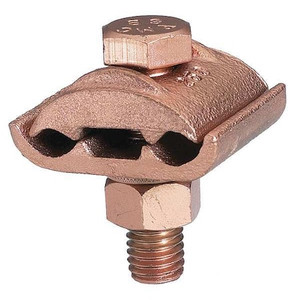

Ground Connector, 300 kcmil - GB34
BurndyLog in for pricing
(No reviews yet)
Write a Review
Burndy
Ground Connector, 300 kcmil - GB34
Grounding Connector, Grounding Wire Size 300 to 500 kcmil SOL, 300 to 500 kcmil STR, Material Copper, Number of Wires - Grounding 1, Description/Special Features Direct Burial, Separates Two Cables From Bar, For Maximum Ground Conductor Wire Size 500 kcmil, For Minimum Ground Conductor Wire Size 300 kcmil, For Use With Copper Conductors, Flat Bar, Grounding Wires Connected To 1/4 in Bar, Standards UL Listed Direct Burial, UL467, Type - Grounding Connector Mechanical
- Country of Origin:
- Multiple
- Item:
- Grounding Connector
- Material:
- Copper
- Number of Wires - Grounding:
- 1
- Item - Grounding Connector:
- Grounding Connector
- Type - Grounding Connector:
- Mechanical
- Wire Size - Grounding:
- 300 to 500 kcmil
- Material - Grounding Connector:
- Copper Alloy
- Standards:
- UL Listed Direct Burial, UL467
- Grounding Wires Connected To:
- 1/4 in Bar
- Type:
- COMMERCIAL
- Conductor Size:
- 500 kcmil to 300 kcmil
- Material of Construction:
- Copper Alloy
- Grounding Wire Size:
- 300 to 500 kcmil SOL, 300 to 500 kcmil STR
- Torque:
- 480 in-lb
- Overall Height:
- 2 9/16 in
- Description/Special Features:
- Direct Burial, Separates Two Cables From Bar
- For Maximum Ground Conductor Wire Size:
- 500 kcmil
- For Use With:
- Copper Conductors, Flat Bar
- Package Quantity:
- 1
- Overall Length:
- 1 3/8 in
- For Minimum Ground Conductor Wire Size:
- 300 kcmil
- Overall Width:
- 2 5/16 in
- Accessory Type:
- Grounding Connector
- Dimension - Width inch:
- 2.31 in
- Conductor - Copper Str Size Range:
- 300 kcmil-500 kcmil
- Material Type - Screw:
- DURIUMâ„¢ Silicon Bronze
- Standards - Industry Standards Met:
- UL467
- Certification - UL Listed Direct Burial:
- Yes
- Plated:
- N
- Certification - CSA Approved:
- No
- Dimension - Length Overall inch:
- 1.38 in
- Conductor - Copper Str Size:
- 300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
- Installation Torque Recommended in-lb:
- 480 lb-in
- Industry Standard(s):
- UL467
- Physical Attribute - Screw Type:
- Hexagonal Bolt
- Dimension - Width fraction:
- 2-1/3 in
- Dimension - Height inch:
- 2.57 in
- Dimension - L Length Overall mm:
- 35 mm
- Application:
- For Copper Cable To Bar, Direct Burial Cable
- UL Listed:
- Yes
- Plating Type:
- Unplated
- Conductor - Copper Solid Size Range:
- 300 KCMIL - 500 KCMIL
-
-
