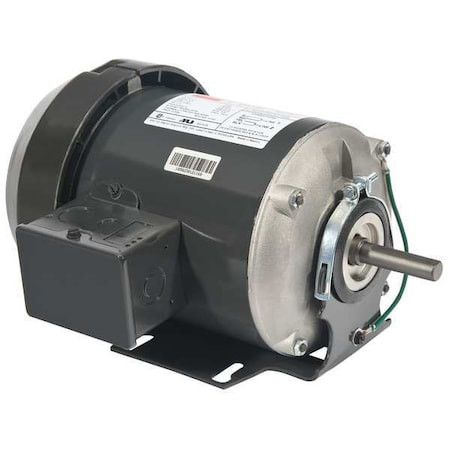

GP Mtr, Split Ph, TEFC, 1/3 HP, 1725 rpm, 48 - 6K572

GP Mtr, Split Ph, TEFC, 1/3 HP, 1725 rpm, 48 - 6K572

Dayton
SKU:
6K572
|
UPC:
190735366158
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, Single Phase, Motor Design Split Phase, 1/3 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5.9 A, 48Z Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Flat, Motor Frame Material Steel
Additional Information
Country of Origin:
Mexico
Full Load Amps:
5.9 A
Motor Shaft Design:
Flat
Overall Length:
11 in
Nameplate RPM:
1,725
Motor Bearings:
Ball
Motor Shaft Rotation:
CW/CCW
No. of Speeds:
1
Motor Mounting Type:
Cradle Base
Motor Application:
General Purpose
Length Less Shaft:
9 1/8 in
Voltage Compatibility:
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Voltage:
115V AC
RPM Range:
1,701-1,800
Max. Ambient Temp.:
40 Degrees C
Manufacturers Warranty Length:
1 yr
Nominal Efficiency:
61.4 %
Motor Service Factor:
1
Motor Enclosure Design:
Totally Enclosed Fan Cooled
Shaft Length:
1 7/8 in
Includes:
Conduit Box
Shaft Dia.:
1/2 in
Motor Thermal Protection:
None
HP:
1/3 hp
Hz:
60 Hz
Ins. Class:
B
Frame:
48Z
Duty:
Continuous
Frame Material:
Rolled steel
Standards:
CSA (156060), UL (E47479)
Motor Frame Material:
Steel
Motor Efficiency Group:
Standard Efficient
Phase:
Single
Item:
General Purpose Motor
RPM Group:
1701-1800
Motor Design:
Split Phase
Duty Cycle:
Continuous
Service Factor @ 50Hz:
Not Applicable
RPM @ 50Hz:
Not Applicable
HP @ 50Hz:
Not Applicable
Full Load Amps @ 50Hz:
Not Applicable
Voltage @ 50Hz:
Not Applicable
Package Quantity:
1
