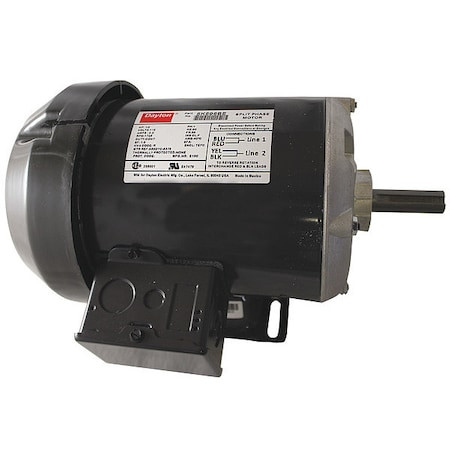

GP Mtr, Split Ph, TEFC, 1/2 HP, 1725 rpm, 56 - 5K596

GP Mtr, Split Ph, TEFC, 1/2 HP, 1725 rpm, 56 - 5K596

Dayton
SKU:
5K596
|
UPC:
190735345344
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, Single Phase, Motor Design Split Phase, 1/2 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 8.0 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Shaft Design Keyed, Motor Frame Material Steel
Additional Information
Country of Origin:
Mexico
Shaft Dia.:
5/8 in
Hz:
60 Hz
Voltage:
115V AC
Nameplate RPM:
1,725
Motor Frame Material:
Steel
Max. Ambient Temp.:
40 Degrees C
No. of Speeds:
1
Length Less Shaft:
9 5/8 in
Shaft Length:
1 7/8 in
Motor Shaft Design:
Keyed
Item:
General Purpose Motor
Duty:
Continuous
Ins. Class:
F
Motor Mounting Type:
Rigid Base
Motor Bearings:
Ball
Overall Length:
11 1/2 in
Motor Thermal Protection:
None
RPM Range:
1,701-1,800
HP:
1/2 hp
Nominal Efficiency:
63.9 %
Includes:
Conduit Box
Motor Efficiency Group:
Standard Efficient
Standards:
CSA (156060), UL (E47479)
Frame:
56
RPM Group:
1701-1800
Motor Design:
Split Phase
Motor Shaft Rotation:
CW/CCW
Motor Service Factor:
1
Motor Enclosure Design:
Totally Enclosed Fan Cooled
Motor Application:
General Purpose
Frame Material:
Rolled steel
Manufacturers Warranty Length:
1 yr
Voltage Compatibility:
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Full Load Amps:
8.0 A
Phase:
Single
Duty Cycle:
Continuous
Voltage @ 50Hz:
Not Applicable
RPM @ 50Hz:
Not Applicable
Full Load Amps @ 50Hz:
Not Applicable
Service Factor @ 50Hz:
Not Applicable
HP @ 50Hz:
Not Applicable
Package Quantity:
1
