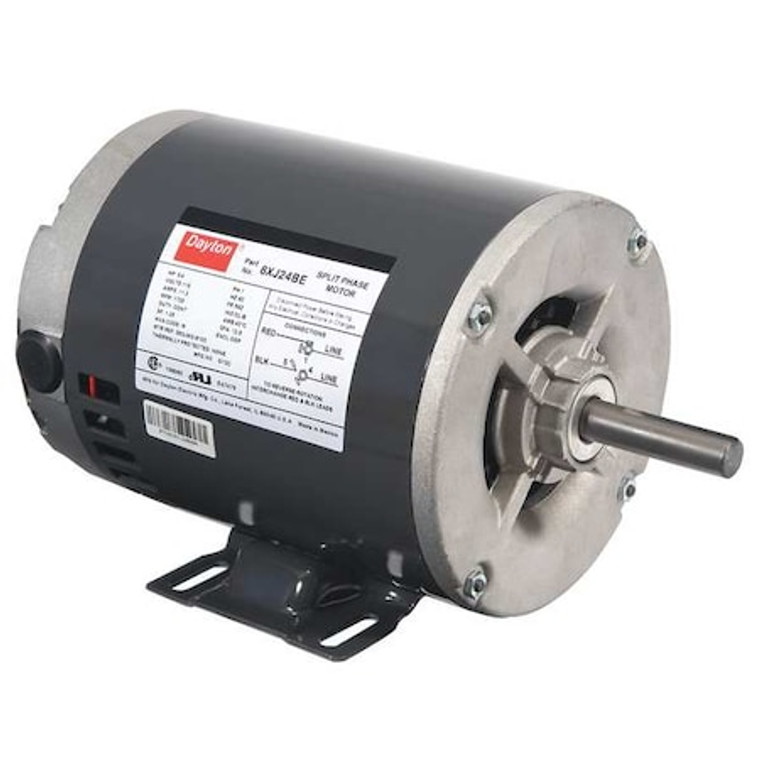

GP Mtr, Split Ph, ODP, 3/4 HP, 1725 rpm, 56Z - 6XJ24

GP Mtr, Split Ph, ODP, 3/4 HP, 1725 rpm, 56Z - 6XJ24

Dayton
SKU:
6XJ24
|
UPC:
190735373484
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, Single Phase, Motor Design Split Phase, 3/4 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 11.3 A, 56Z Frame, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Shaft Design Keyed, Motor Frame Material Steel
Additional Information
Country of Origin:
Mexico
Motor Application:
General Purpose
Frame Material:
Rolled steel
Motor Service Factor:
1.25
RPM Group:
1701-1800
Full Load Amps:
11.3 A
Manufacturers Warranty Length:
1 yr
Motor Frame Material:
Steel
Phase:
Single
Hz:
60 Hz
Motor Enclosure Design:
Open Drip Proof
Item:
General Purpose Motor
Shaft Length:
2 1/4 in
Overall Length:
11 1/4 in
Motor Bearings:
Ball
Nominal Efficiency:
63.6 %
Motor Shaft Rotation:
CW/CCW
No. of Speeds:
1
Motor Efficiency Group:
Standard Efficient
RPM Range:
1,701-1,800
Nameplate RPM:
1,725
Shaft Dia.:
5/8 in
Voltage Compatibility:
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Voltage:
115V AC
Standards:
CSA (258501, UL (E47479)
Max. Ambient Temp.:
40 Degrees C
Motor Mounting Type:
Rigid Base
Motor Shaft Design:
Keyed
Frame:
56Z
Ins. Class:
B
Duty:
Continuous
Motor Thermal Protection:
None
HP:
3/4 hp
Motor Design:
Split Phase
Length Less Shaft:
9 in
Duty Cycle:
Continuous
HP @ 50Hz:
Not Applicable
Voltage @ 50Hz:
Not Applicable
Full Load Amps @ 50Hz:
Not Applicable
RPM @ 50Hz:
Not Applicable
Service Factor @ 50Hz:
Not Applicable
Package Quantity:
1
